Monte Carlo V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Locations
>>
Component Locations
Component Locations

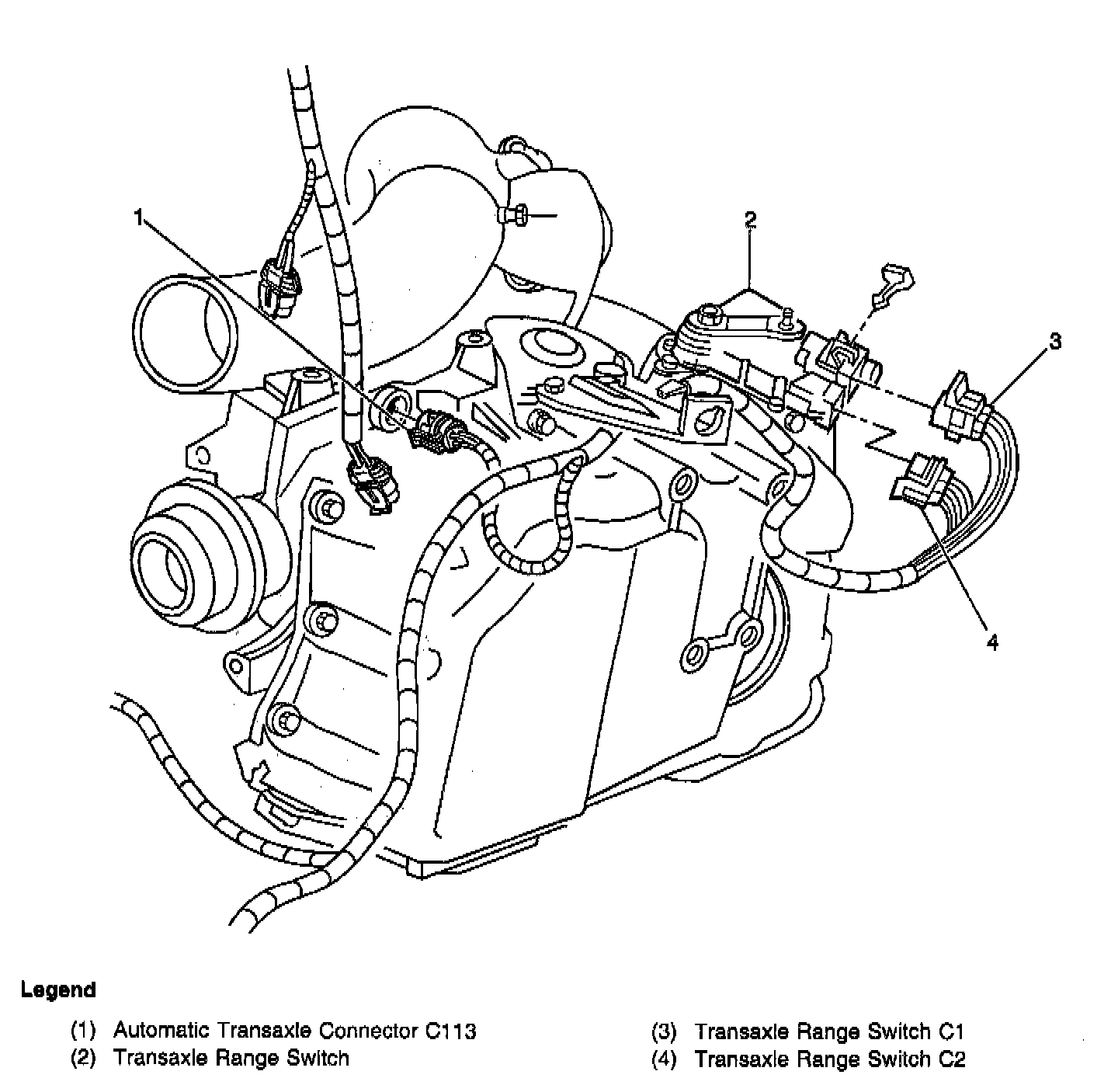

Transaxle Range Switch - LH Side Of Engine:
Left of the engine, on the transmission/transaxle
