Home >> Chevrolet >> 1999 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Headlamp Assembly, Left

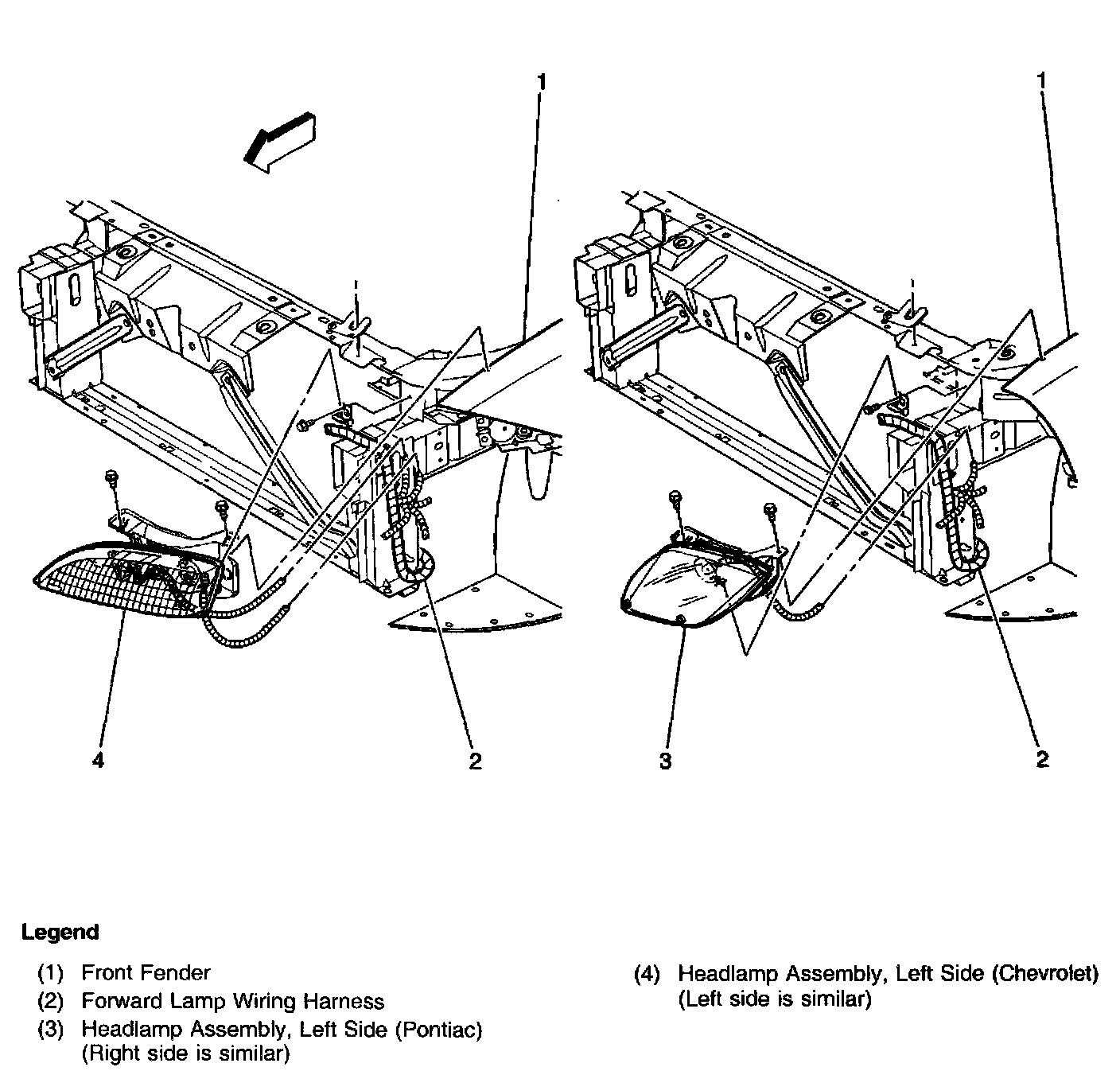

Headlamp Assembly, Left

LH Headlamp Assembly:





At the left front fascia
