Camaro V8-5.7L VIN G
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>

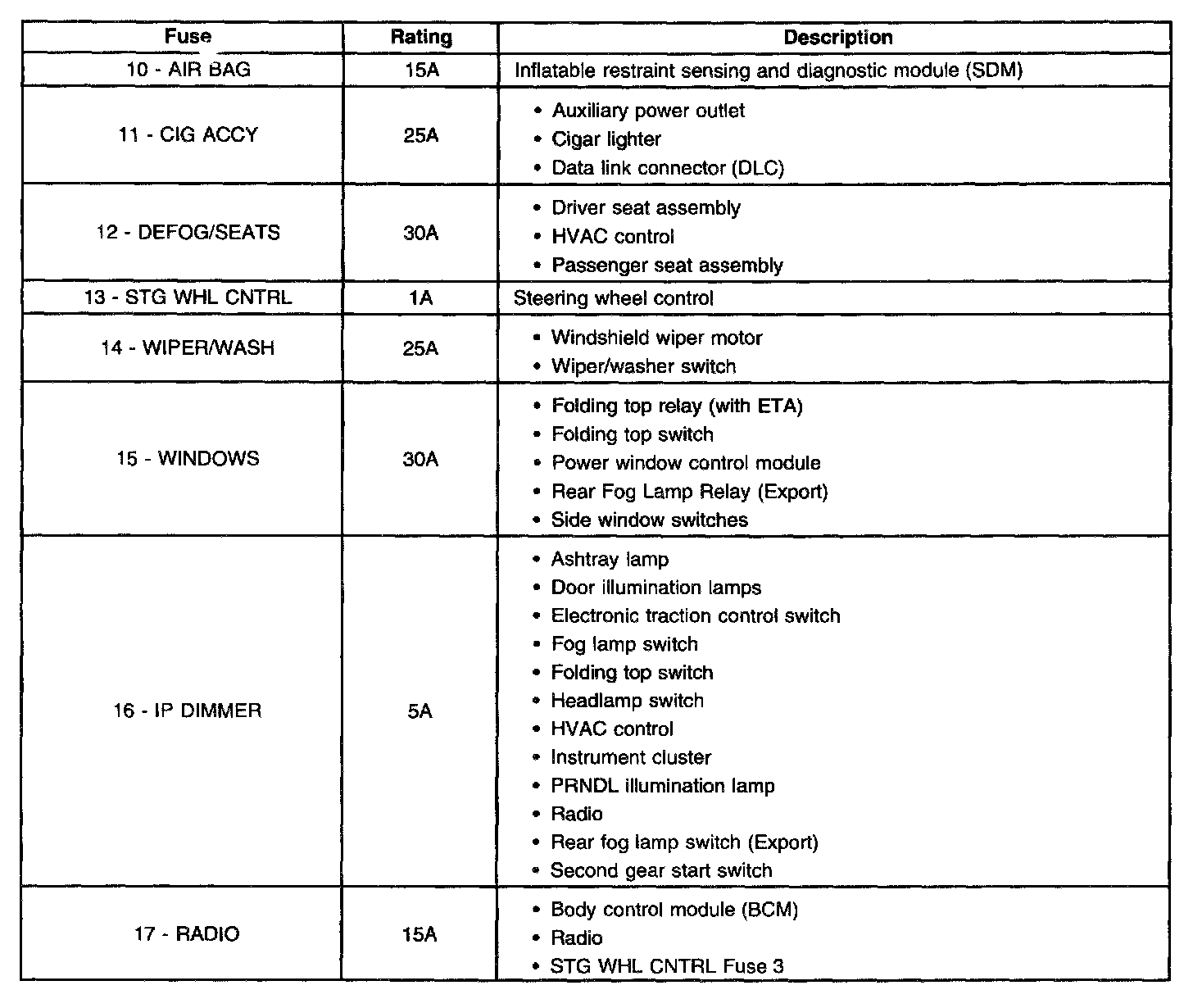

Fuse Block I/P Application Table
Fuse Block I/P Application Table
Fuse Block Application Table (Part 1 Of 2):
IP Fuse Block (Part 2 Of 2):
