Home >> Chevrolet >> 1998 >> Prizm L4-108 1.8L DOHC VIN 8 MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

Locations View:

Locations View:

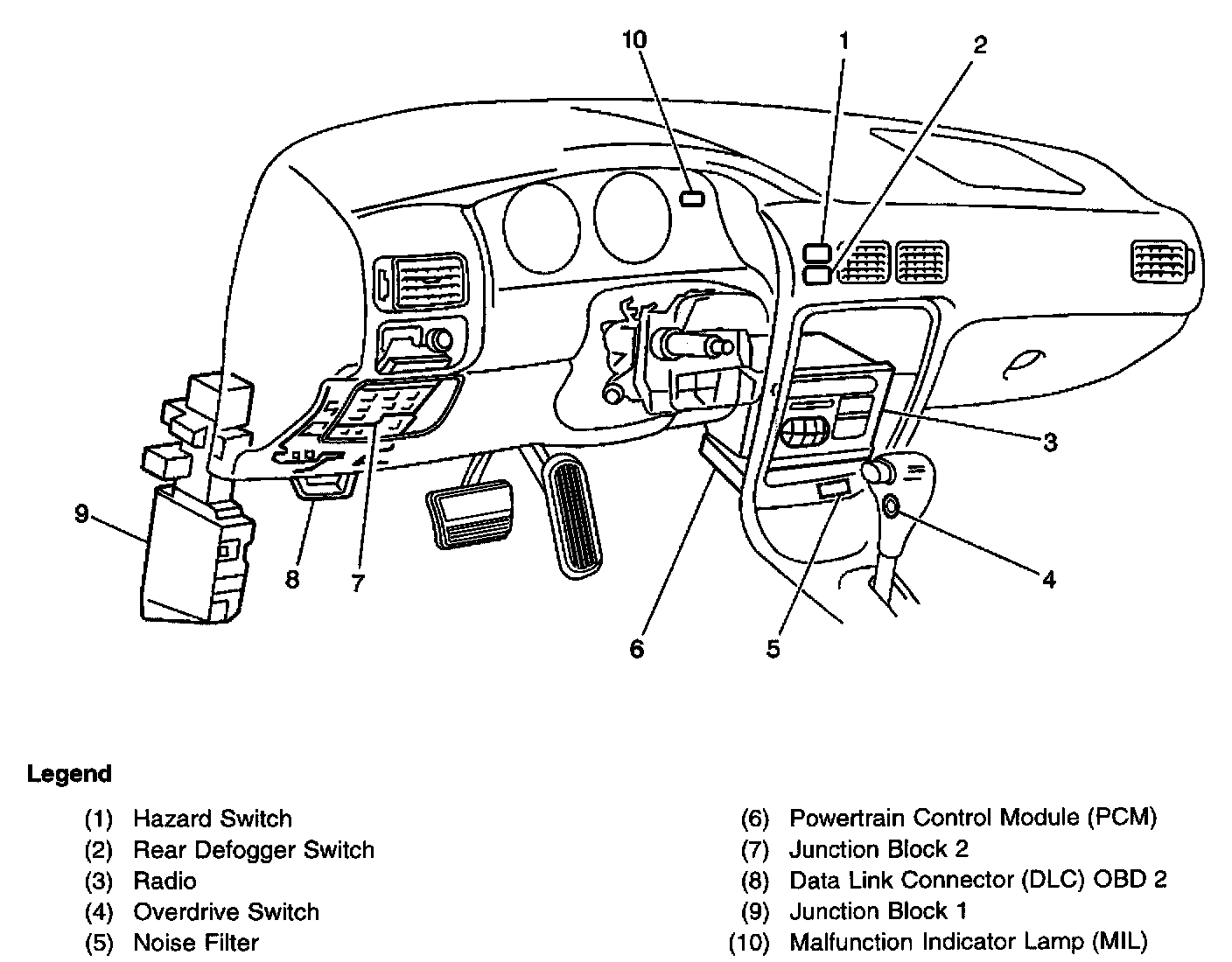

Front of center console, below radio.
