Home >> Chevrolet >> 1998 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Accessory Delay Module >> RH Door Control Module (DCM)

RH Door Control Module (DCM)

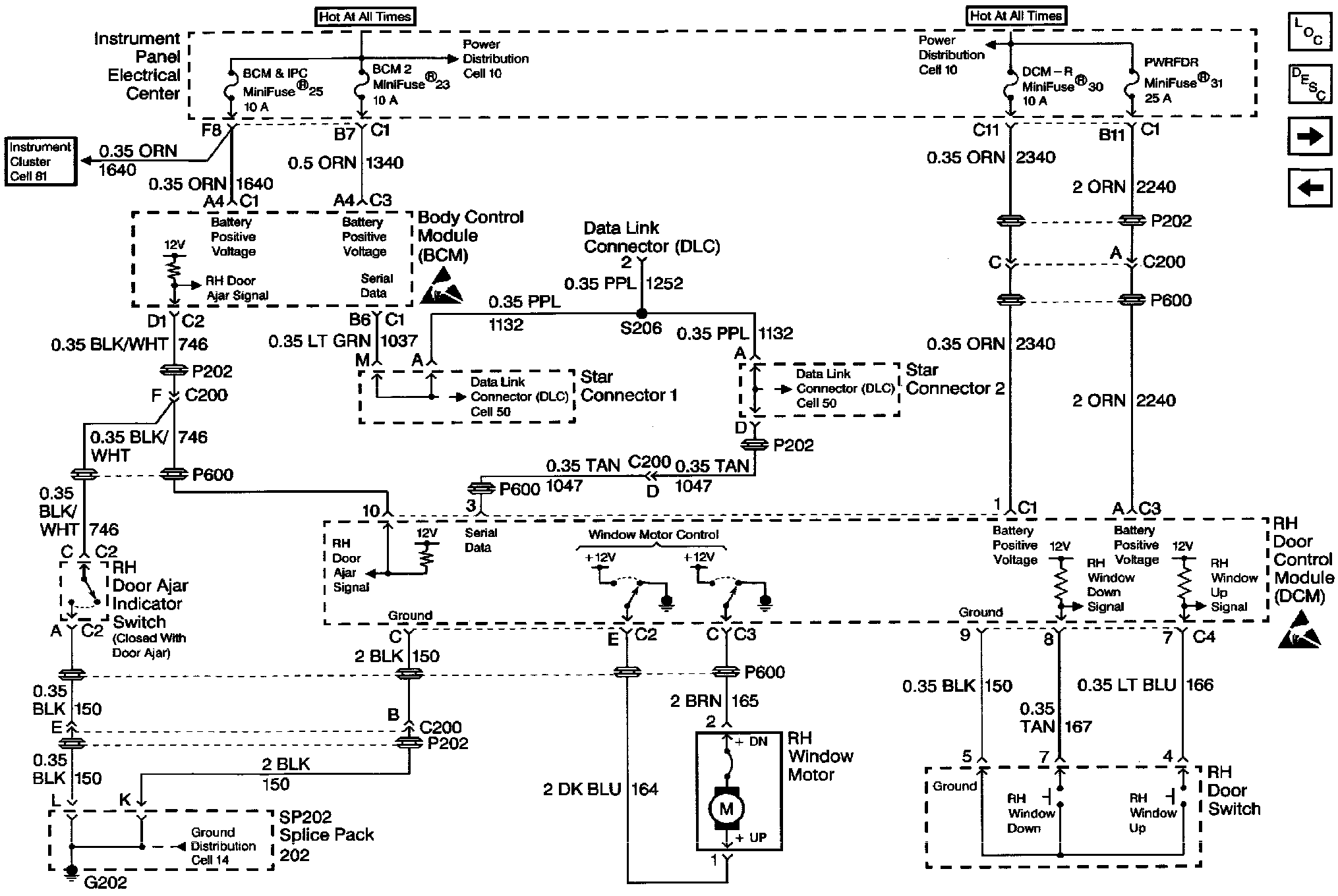

Retained Accessory Power Schematics: RH Door Control Module (DCM):
