Engine Control Module

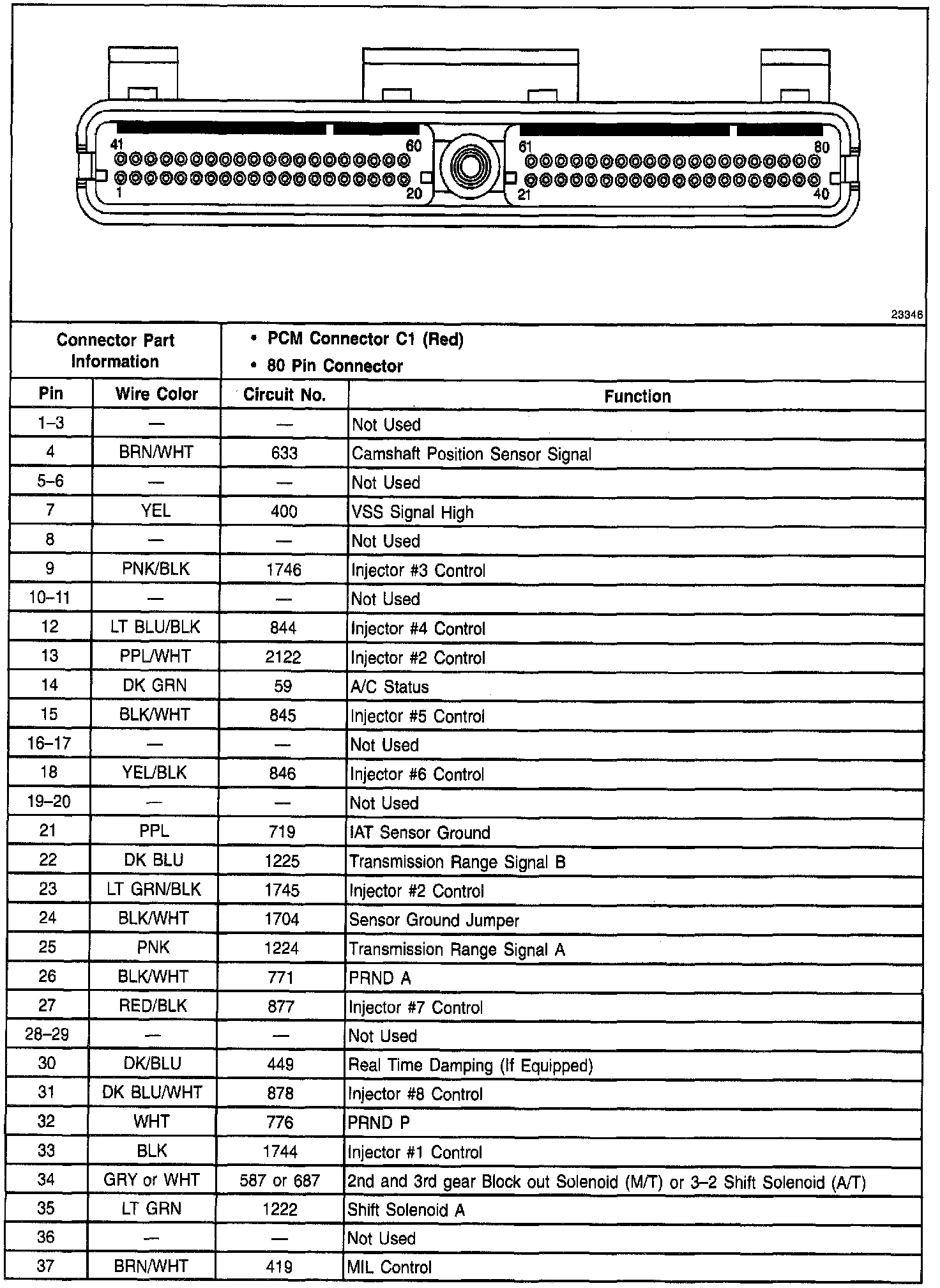

PCM Connector C1 (Red):

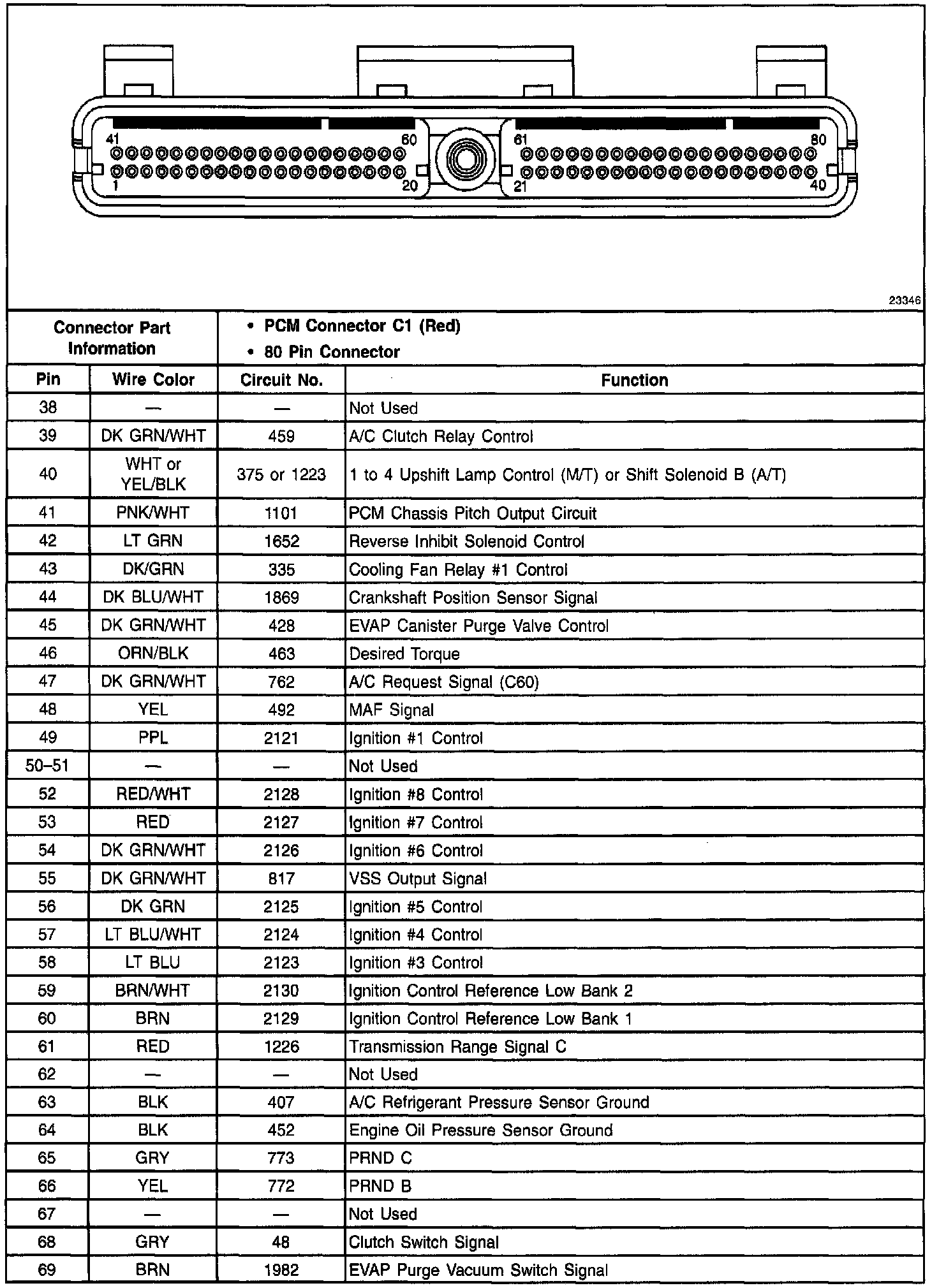

PCM Connector C1 (Red):

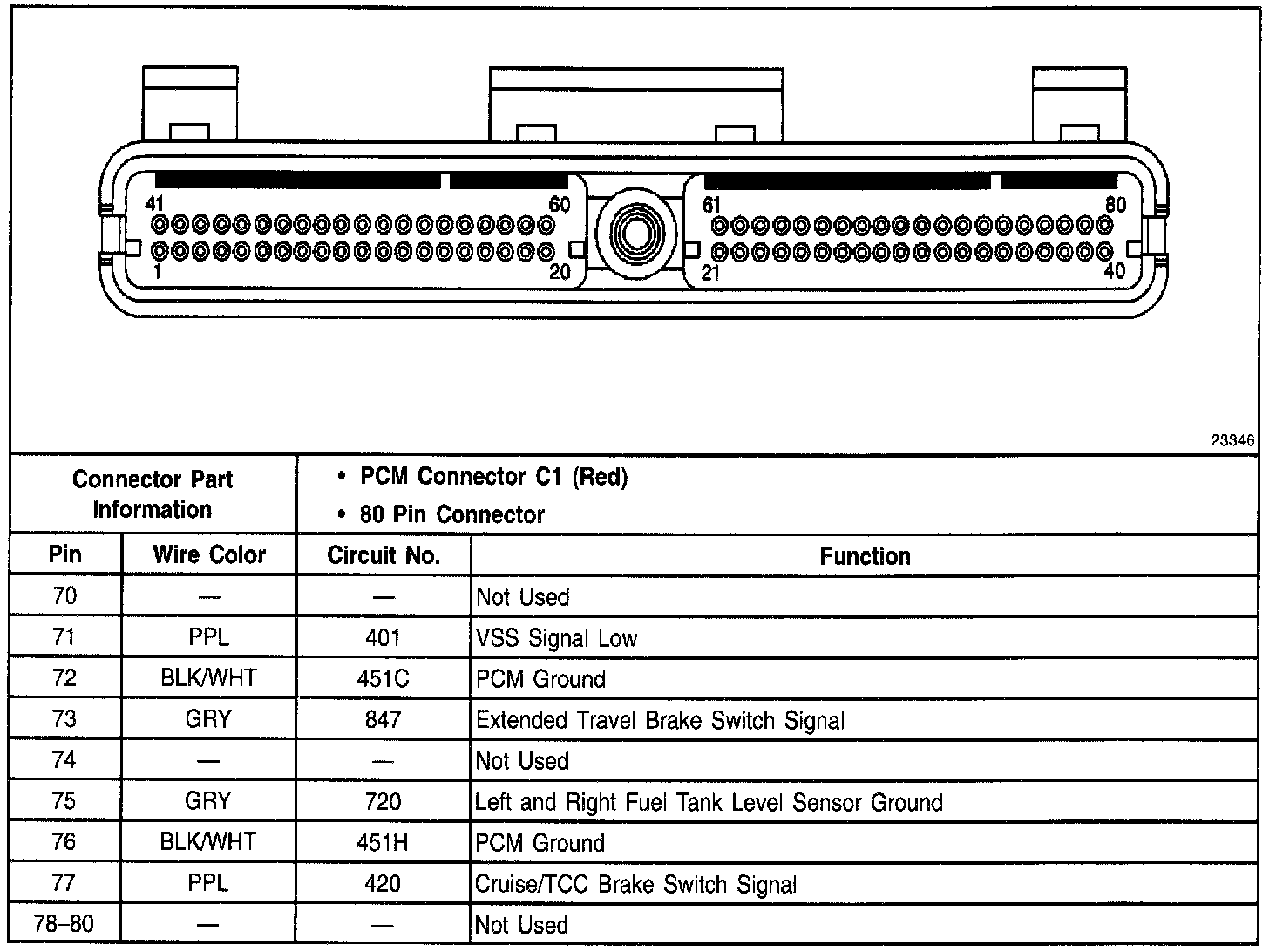

PCM Connector C1 (Red):

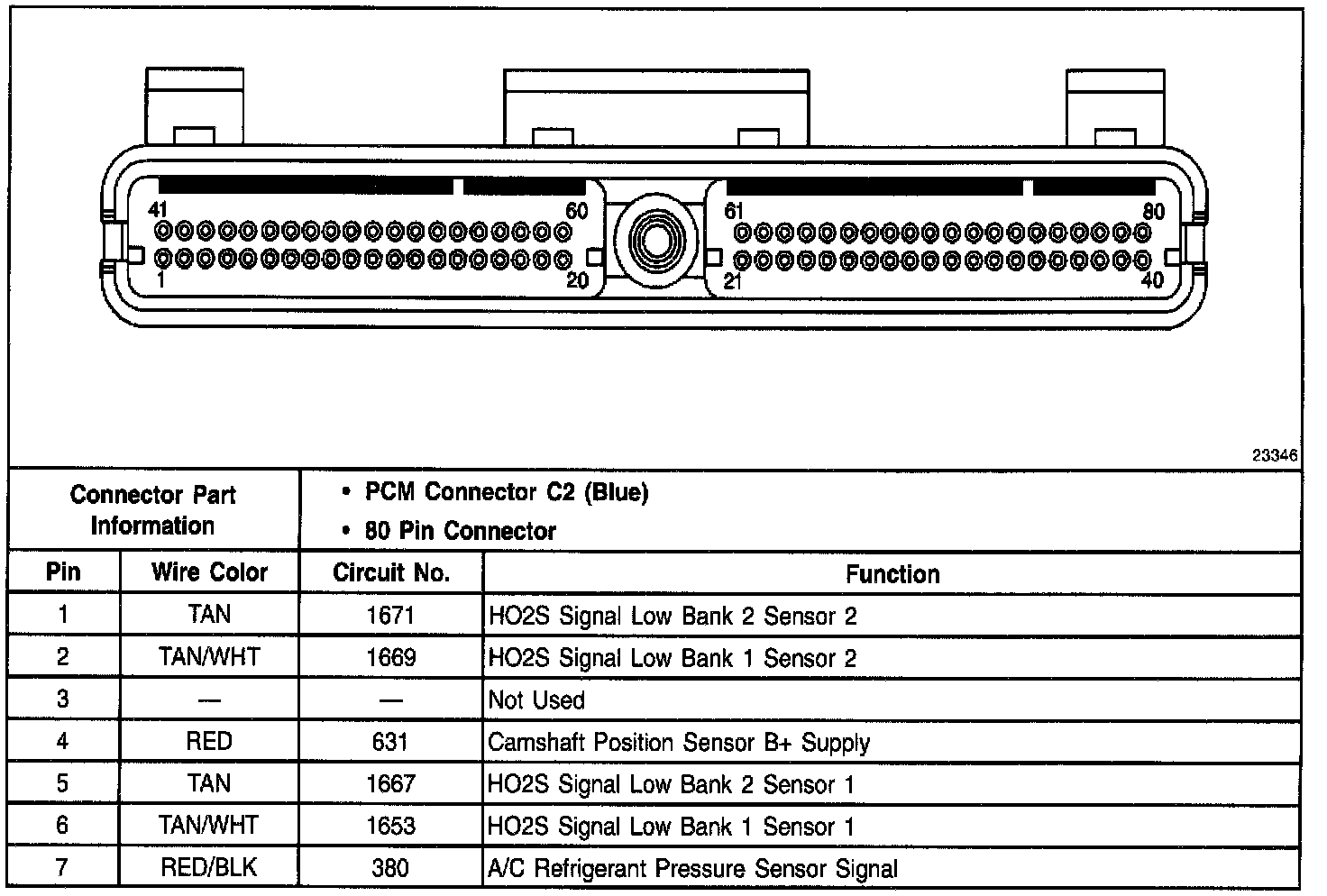

PCM Connector C2 (Blue):

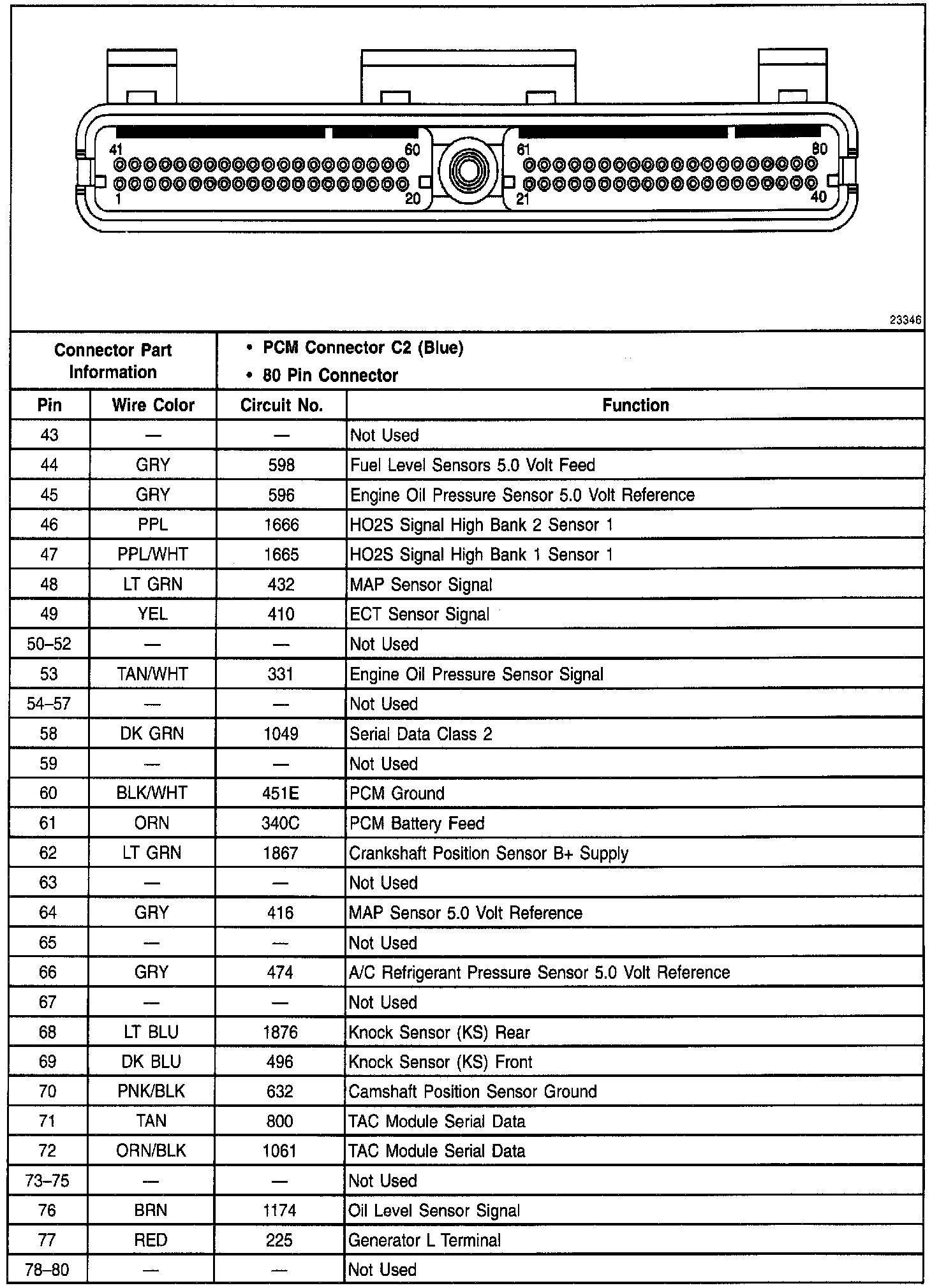

PCM Connector C2 (Blue):

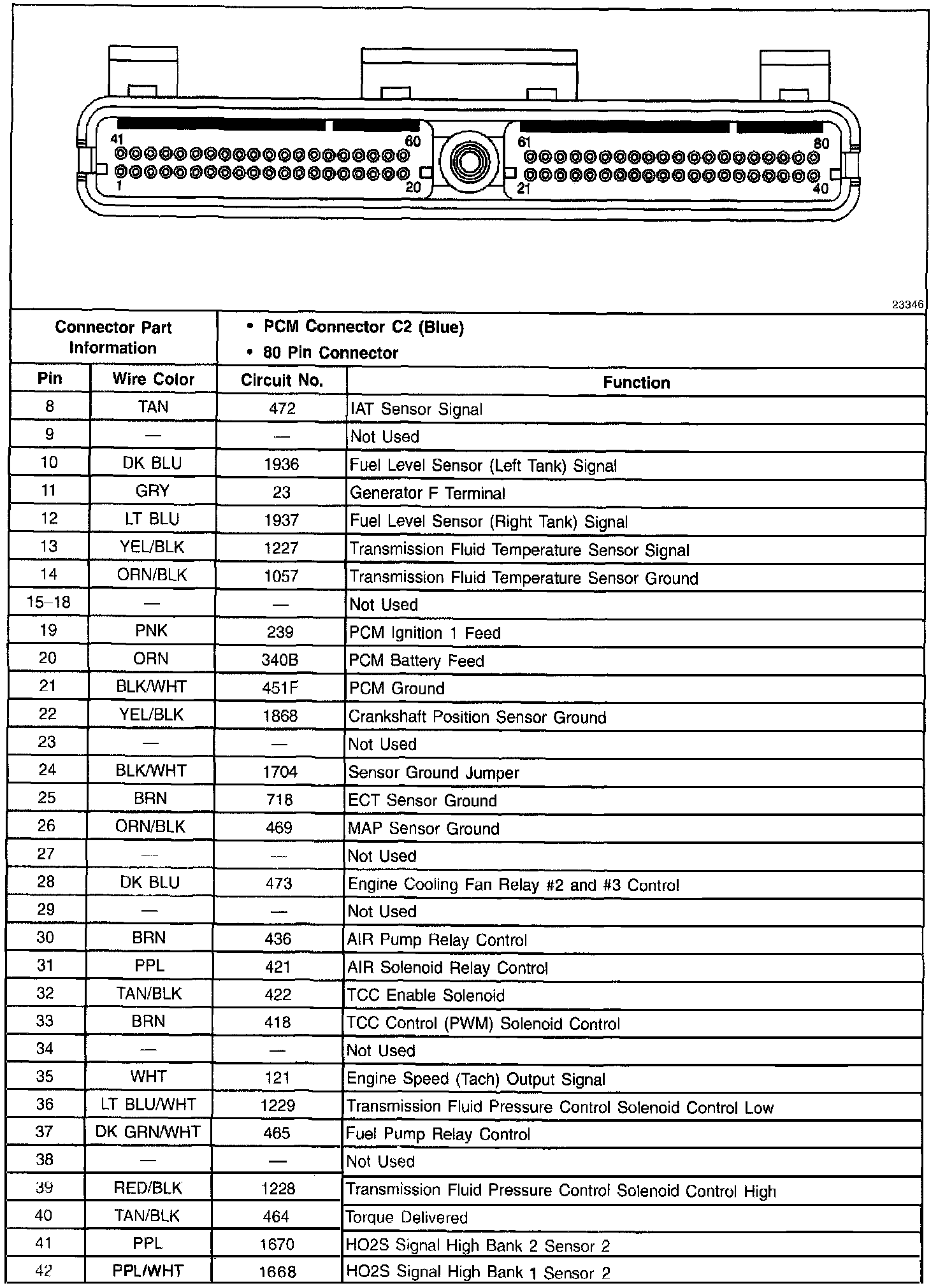

PCM Connector C2 (Blue):
