Scan Tool Cannot Communicate With the PCM
Scan Tool Cannot Communicate With the PCM

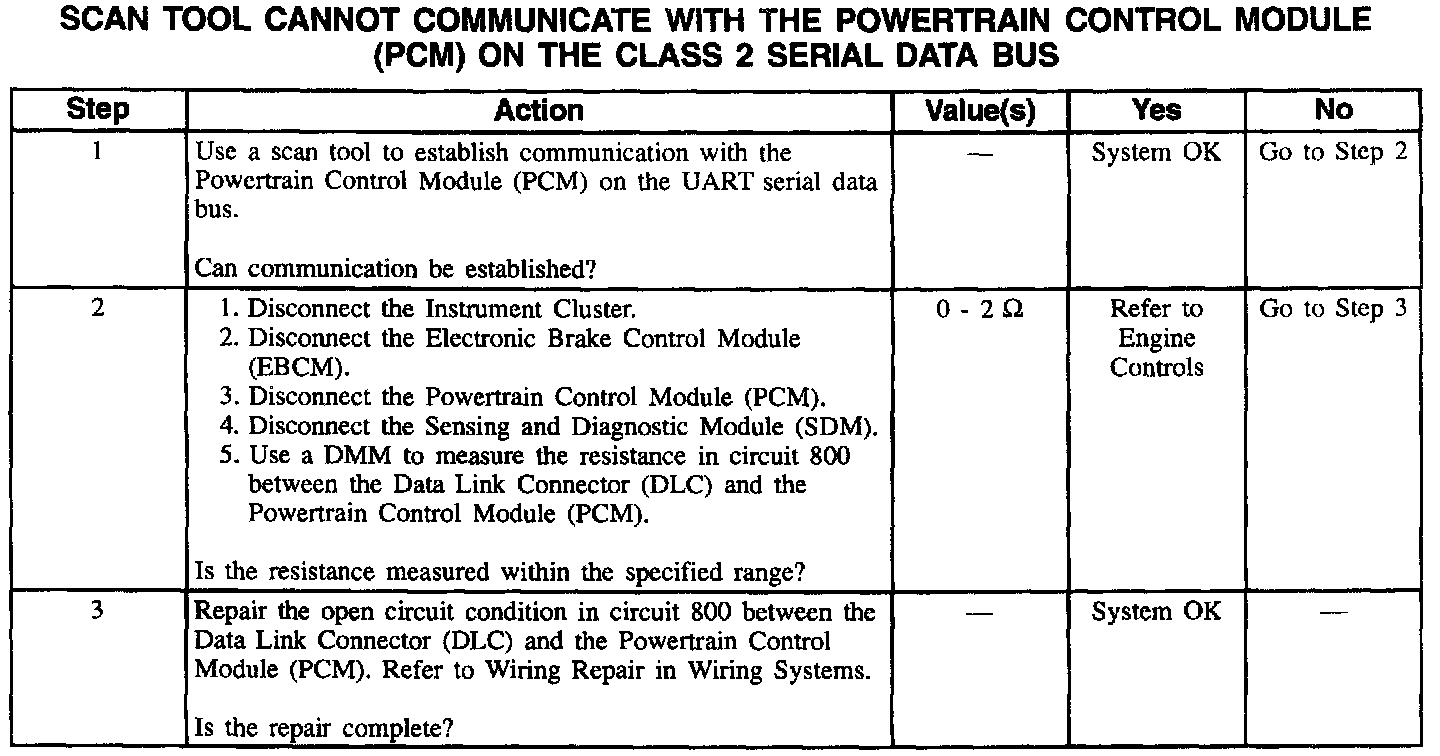

Scan Tool Cannot Communicate With The PCM On The Class 2 Serial Data Bus:
