Scan Tool Cannot COMM W/the PCM on the UART

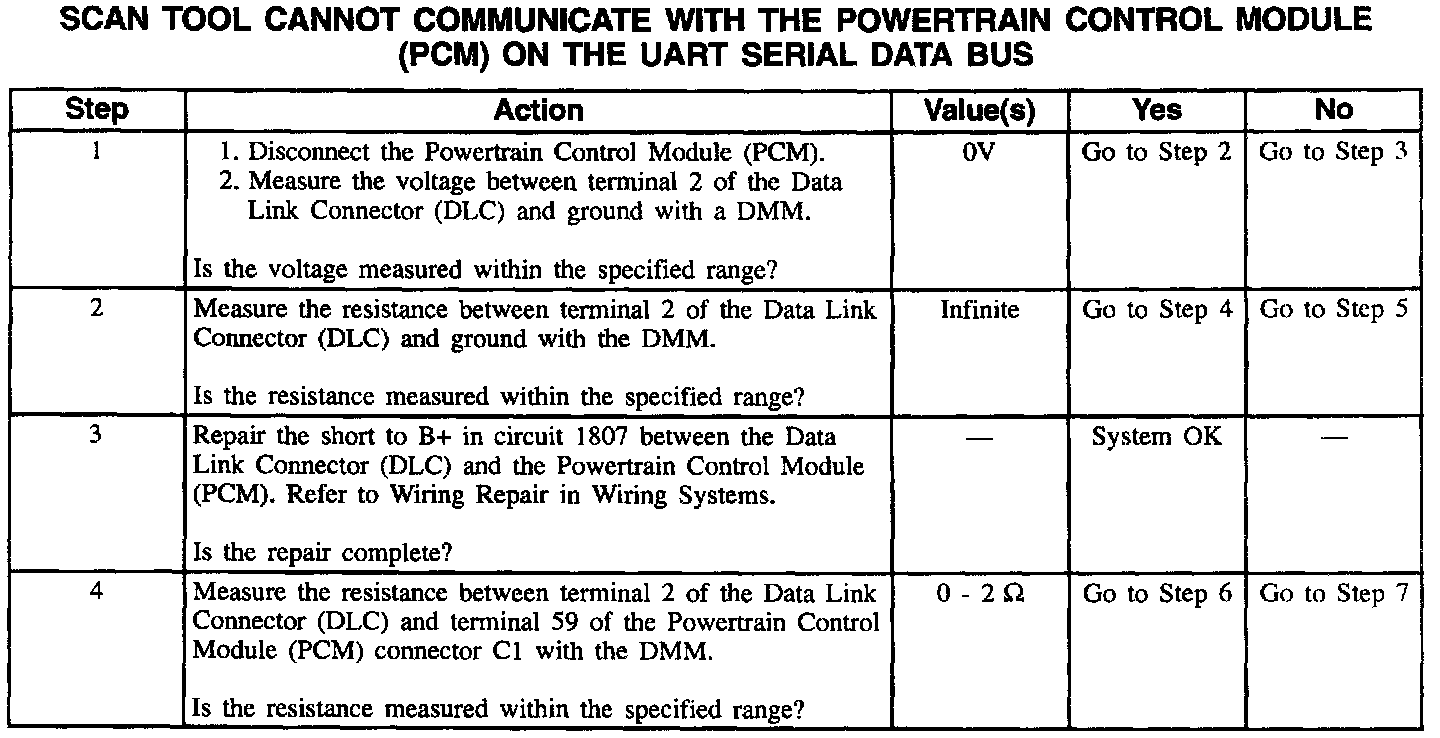

Scan Tool Cannot Communicate With The PCM On The UART Serial Data Bus (Part 1 Of 2):



Scan Tool Cannot Communicate With The PCM On The UART Serial Data Bus (Part 2 Of 2):
