Home >> Chevrolet >> 1997 >> Corvette V8-5.7L VIN G >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Fastener Tightening Specifications - Engine

Fastener Tightening Specifications - Engine

This article has been updated with bulletin #07-06-01-002

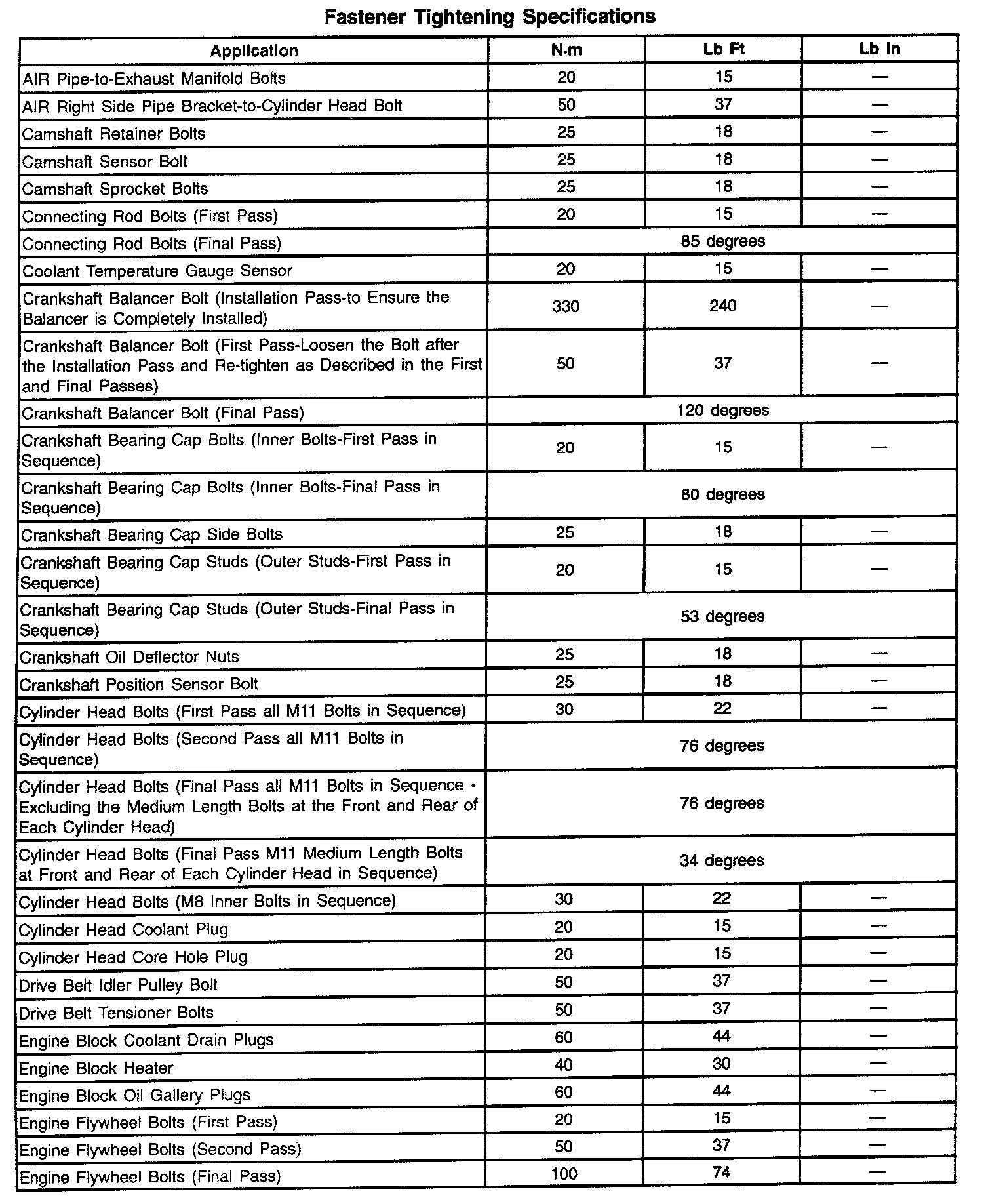

Fastener Tightening Specifications (1 Of 3):

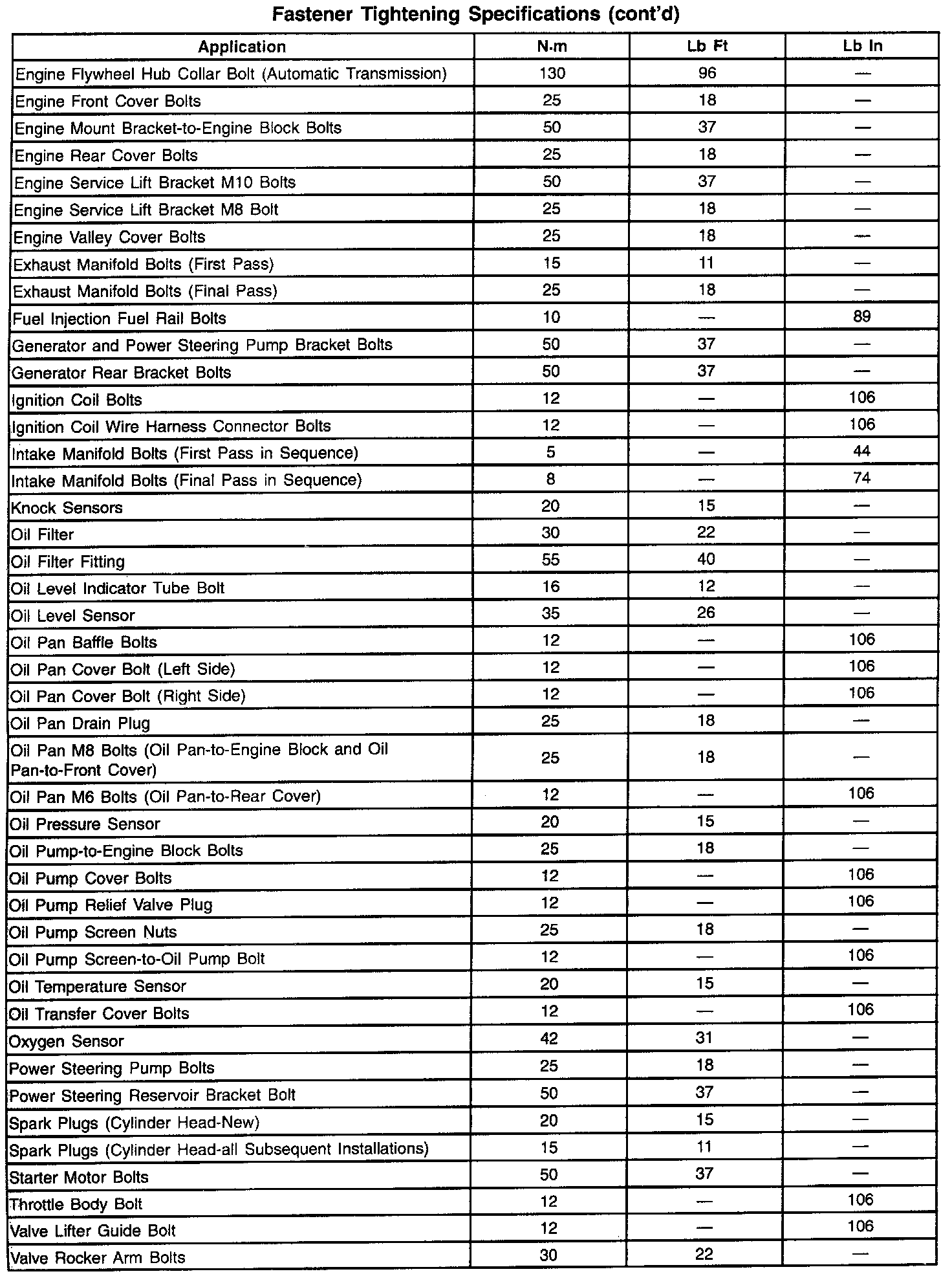

Fastener Tightening Specifications (2 Of 3):




Fastener Tightening Specifications (3 0f 3):
