Rear Fog Lamp and ABS Relay Control

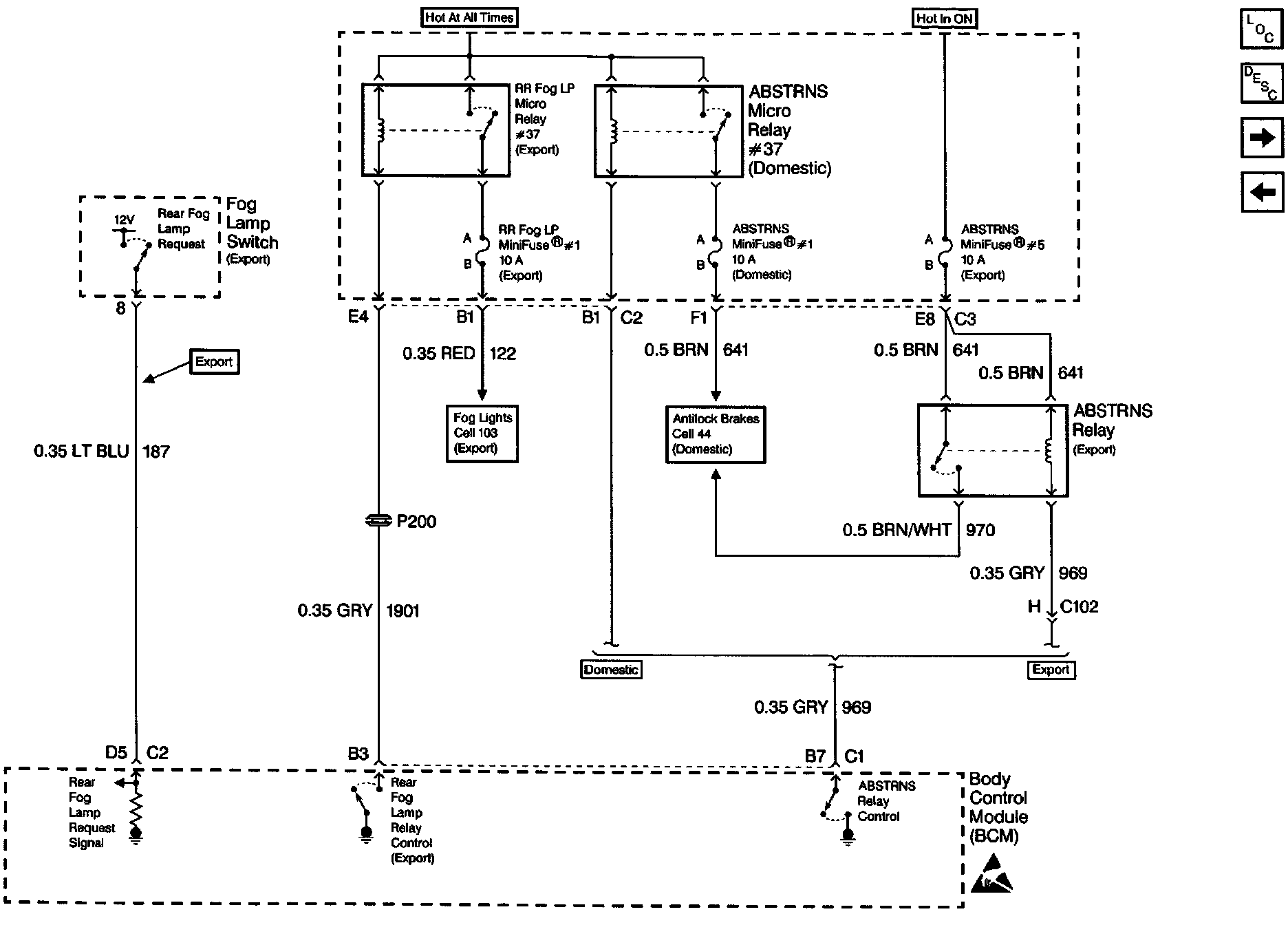

Body Control Module Schematics (Rear Fog Lamp And ABS Relay Control):
