Horn, Backup & Rear Defogger System

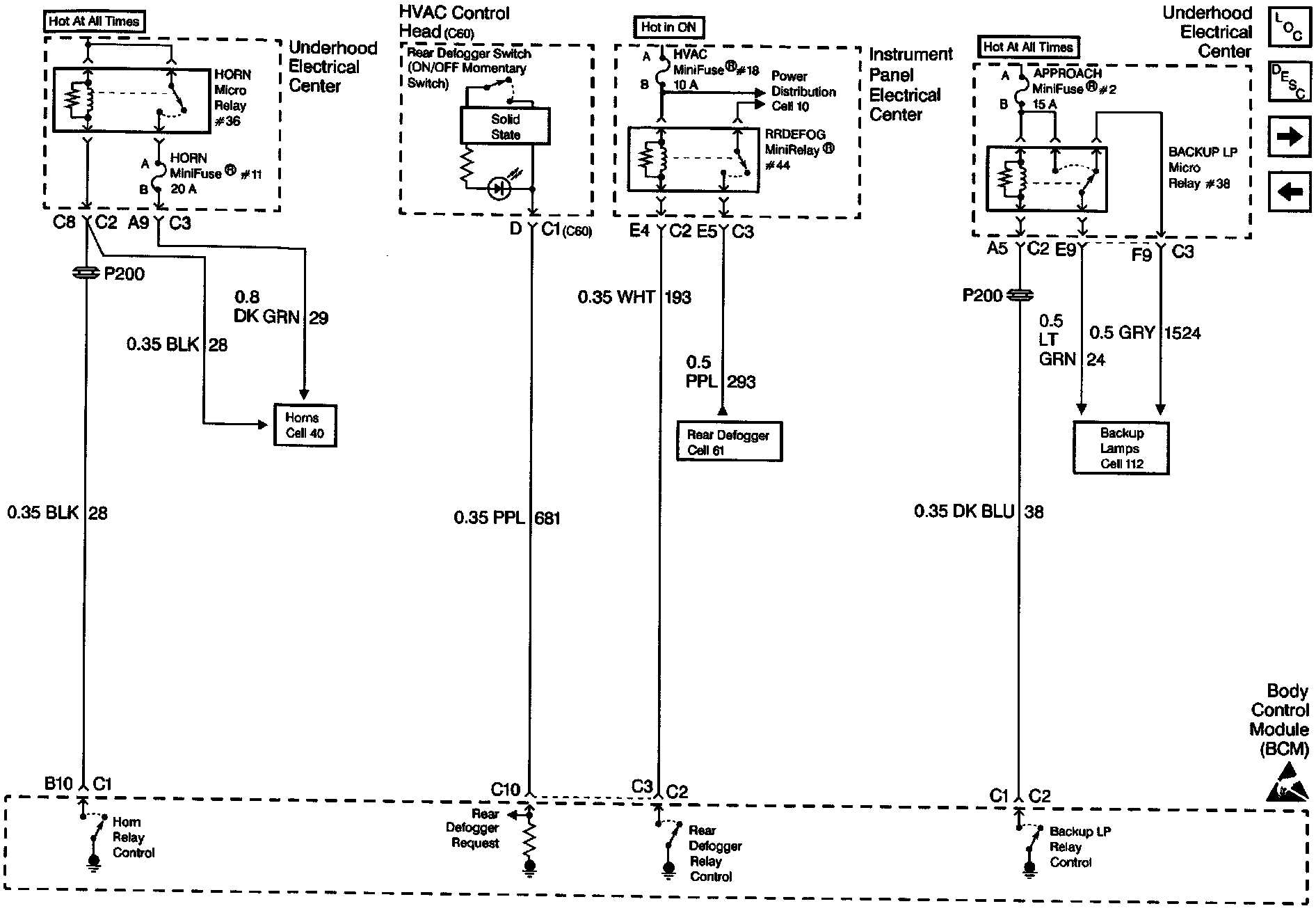

Body Control Module Schematics (Horn, Backup And Rear Defogger System):
