Home >> Chevrolet >> 1997 >> Cavalier L4-2.2L VIN 4 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C2 (Black) >> Pin Information >> Pins 28-66

Pins 28-66

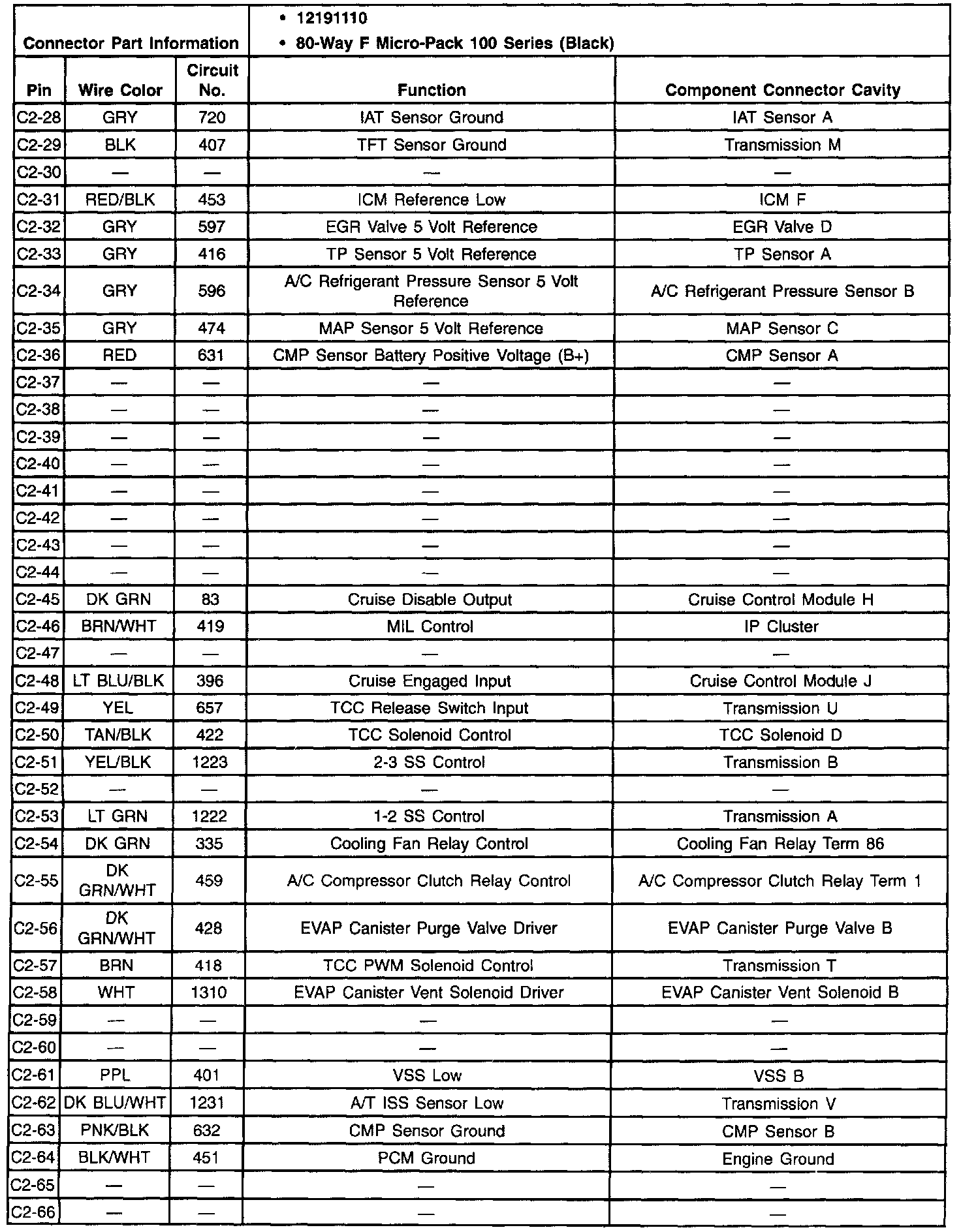

Connector Pin Information:
