Transmission Position Sensor/Switch: Locations

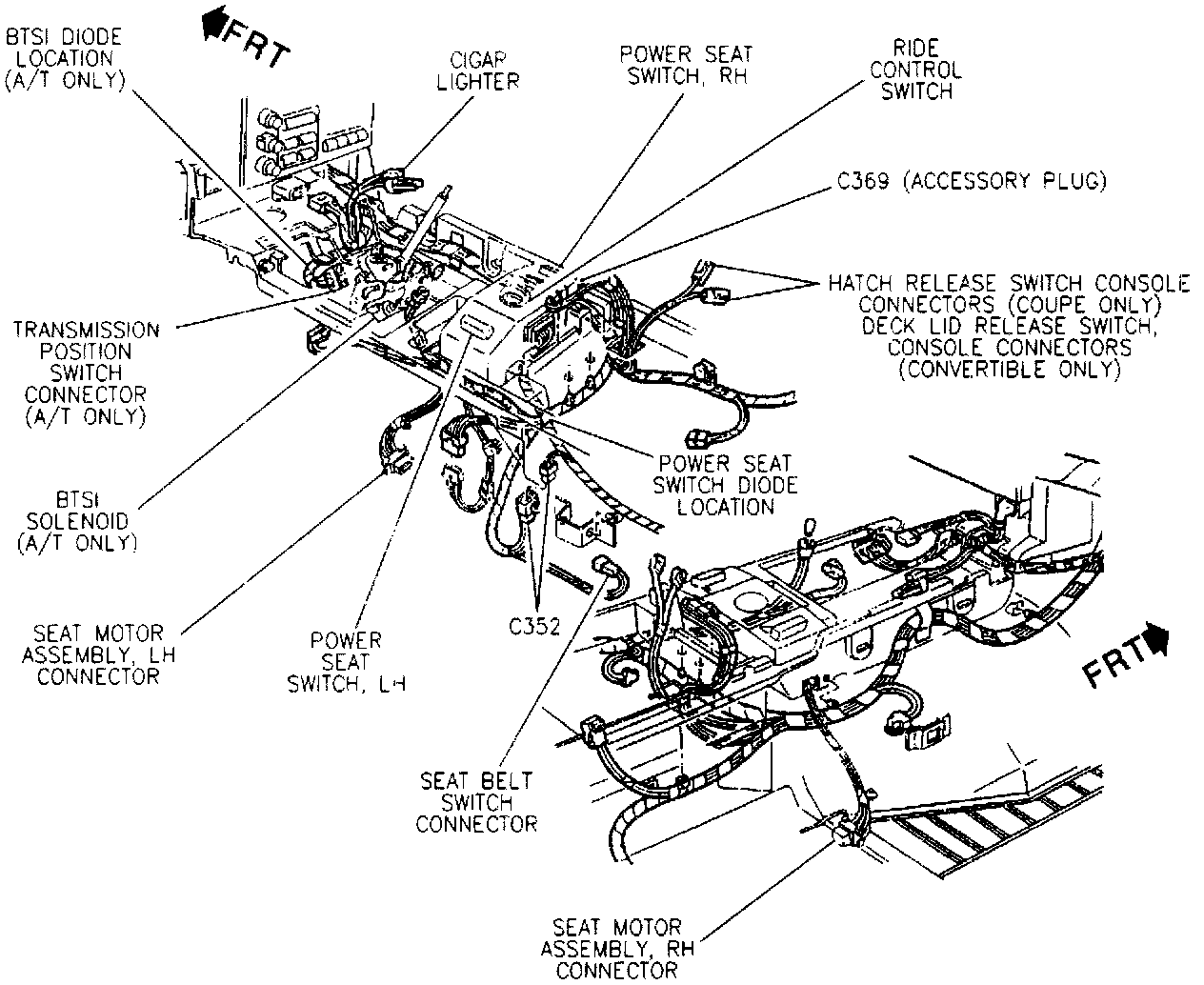

Center Console: Sport Seats:

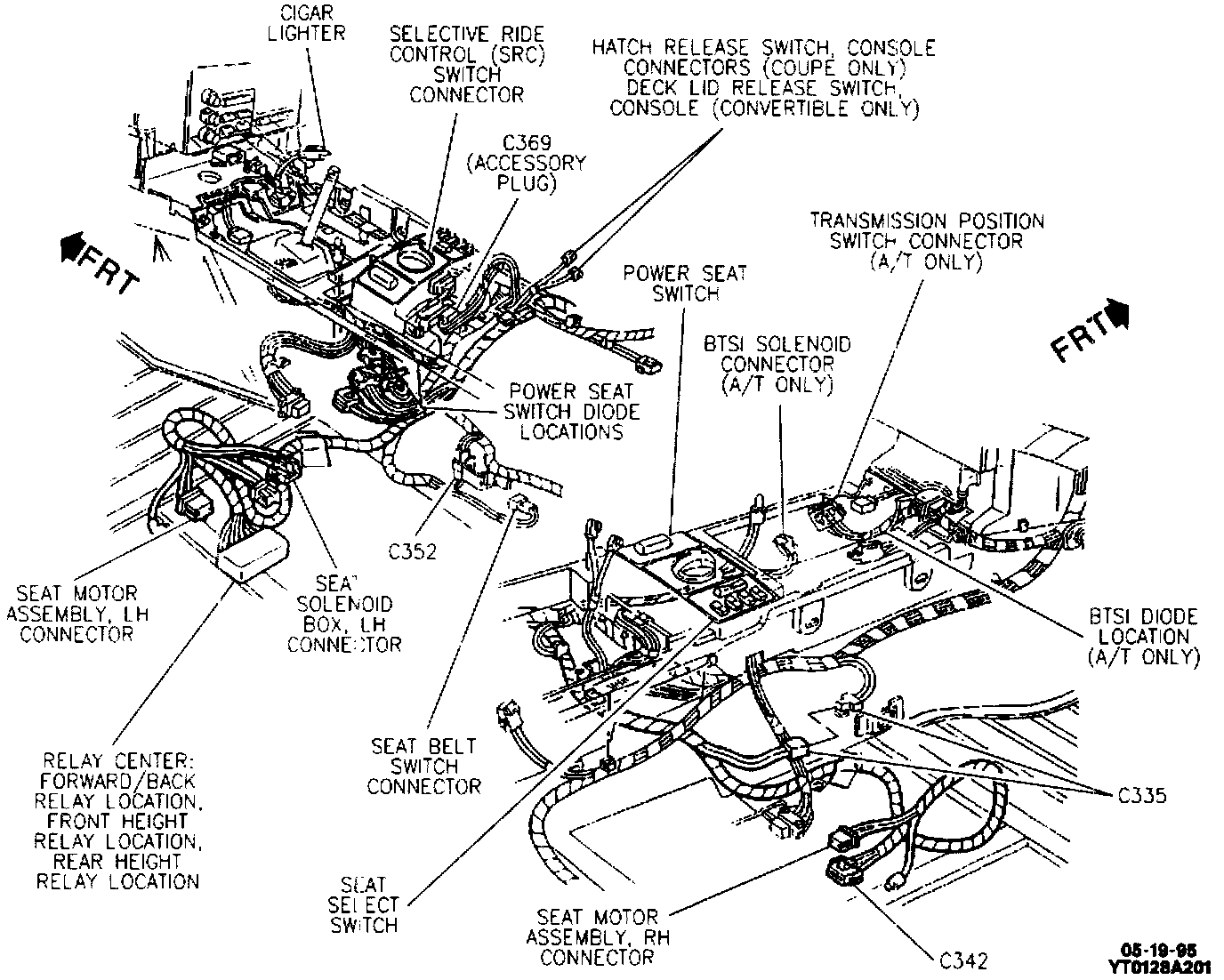

Center Console: Base Power Seats:
