Corvette V8-350 5.7L VIN P SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
Connector Views
>>
C1 (Red)
C1 (Red)

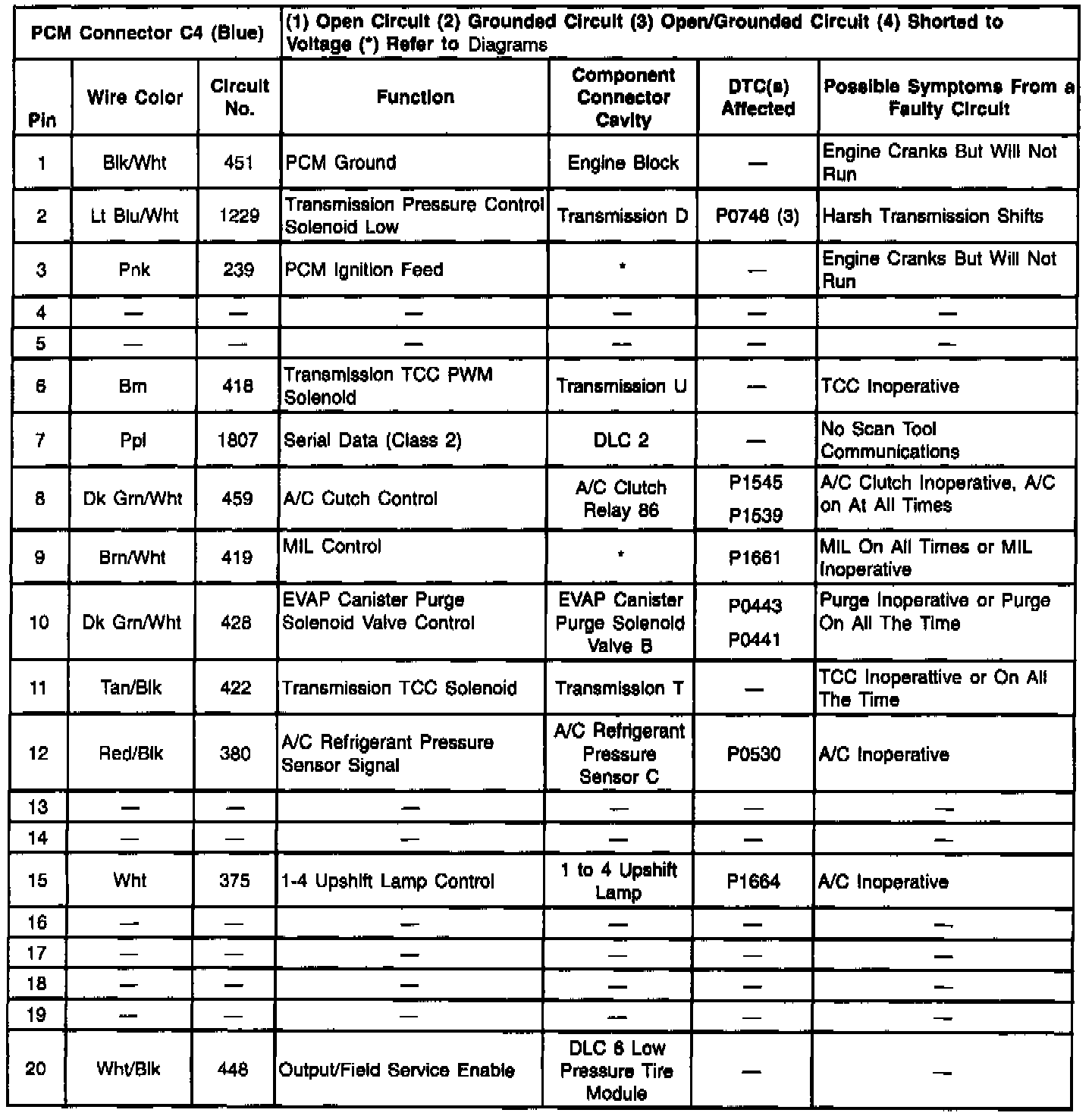

Connector Pinouts: Pins 1 - 20:
Connector Pinouts: Pins 21 - 32:
