Scan Tool Data List

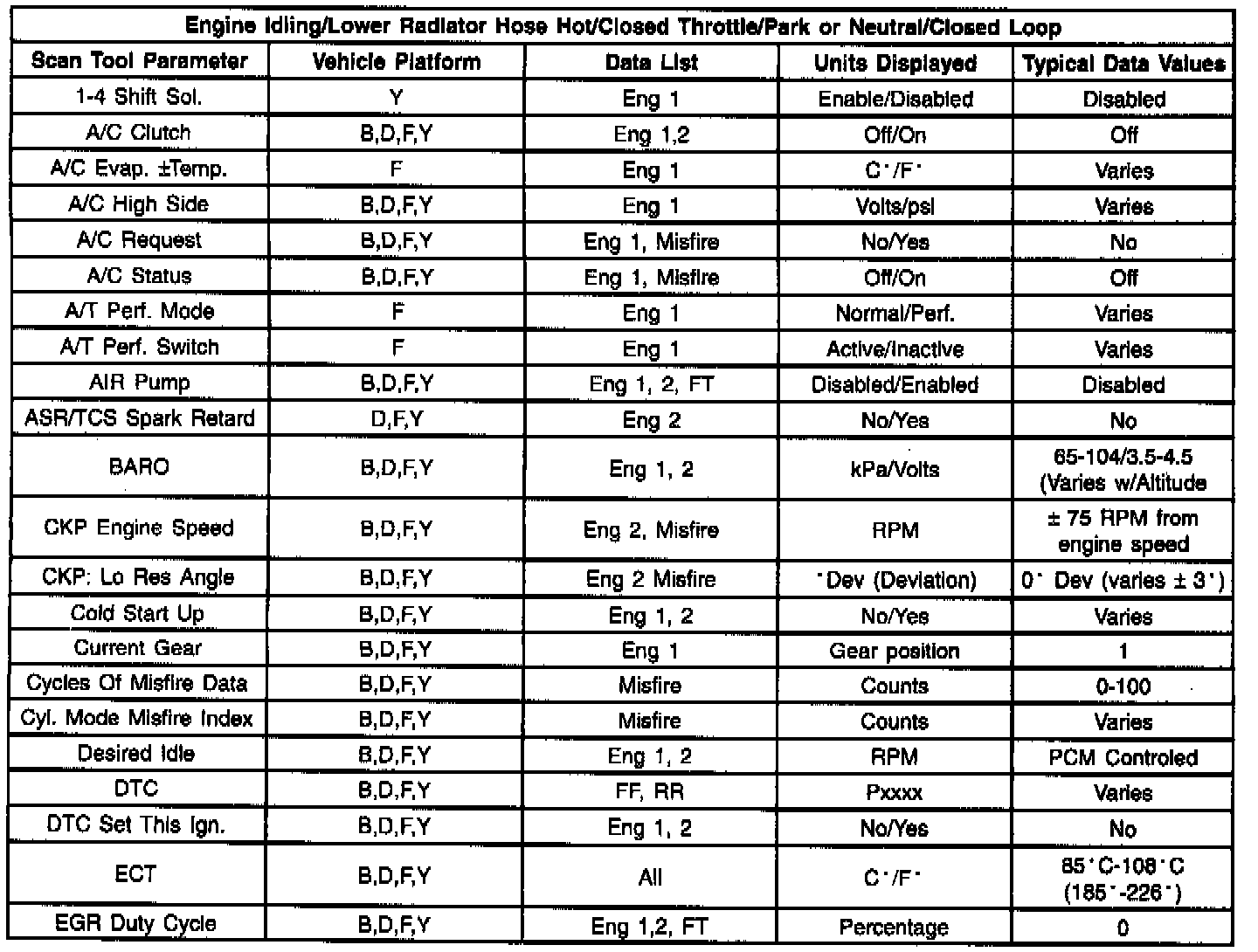

1-4 Shift Sol. to EGR Duty Cycle

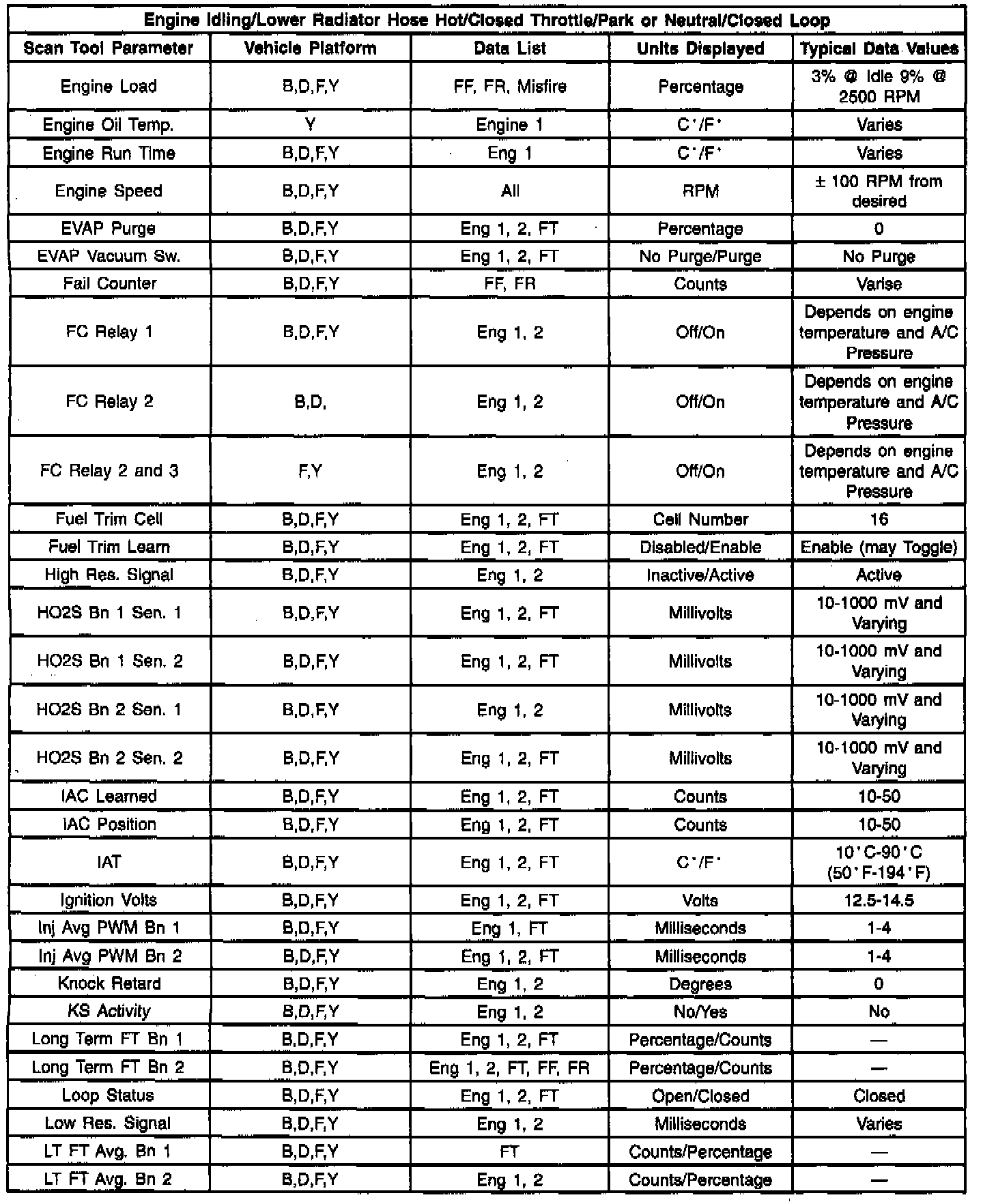

Engine Load to LT FT Avg. Bn 2

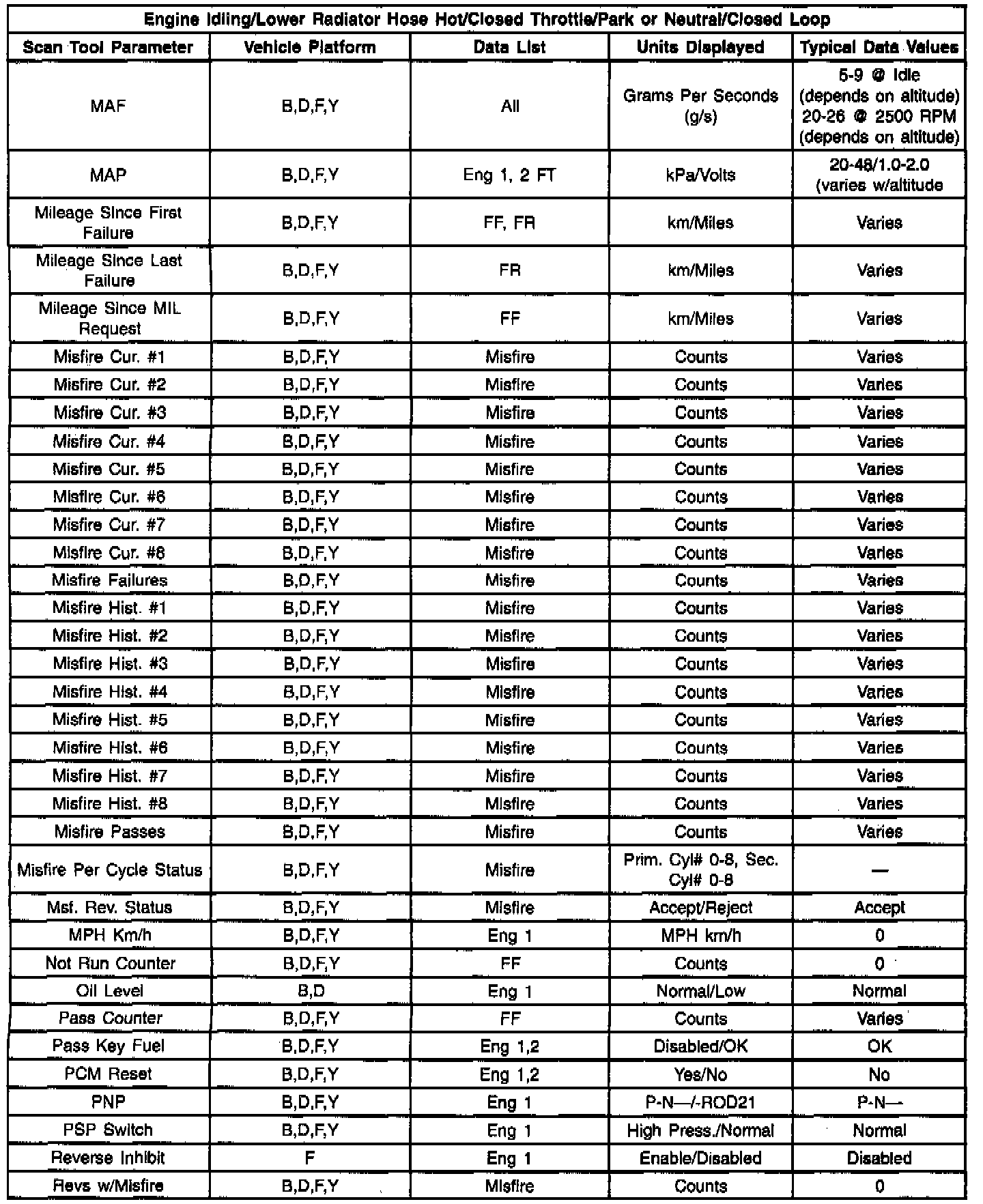

MAF to Revs w/Misfire

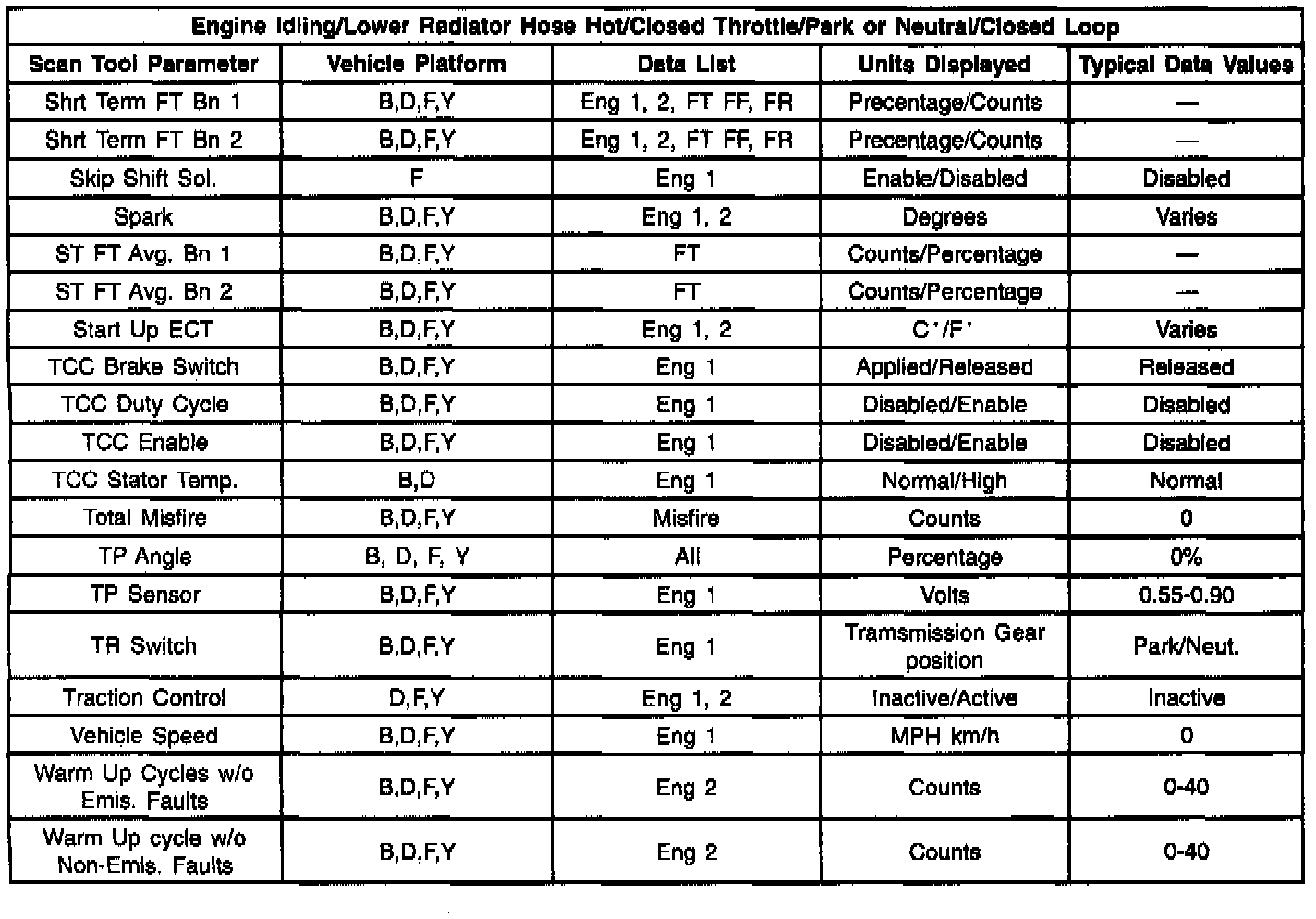

Shrt Term FT Bn 1 to Warm Up cycle w/o Non-Emis. Faults
