C1 (Red)
C1 (Red)
PCM
32 PIN CONNECTOR

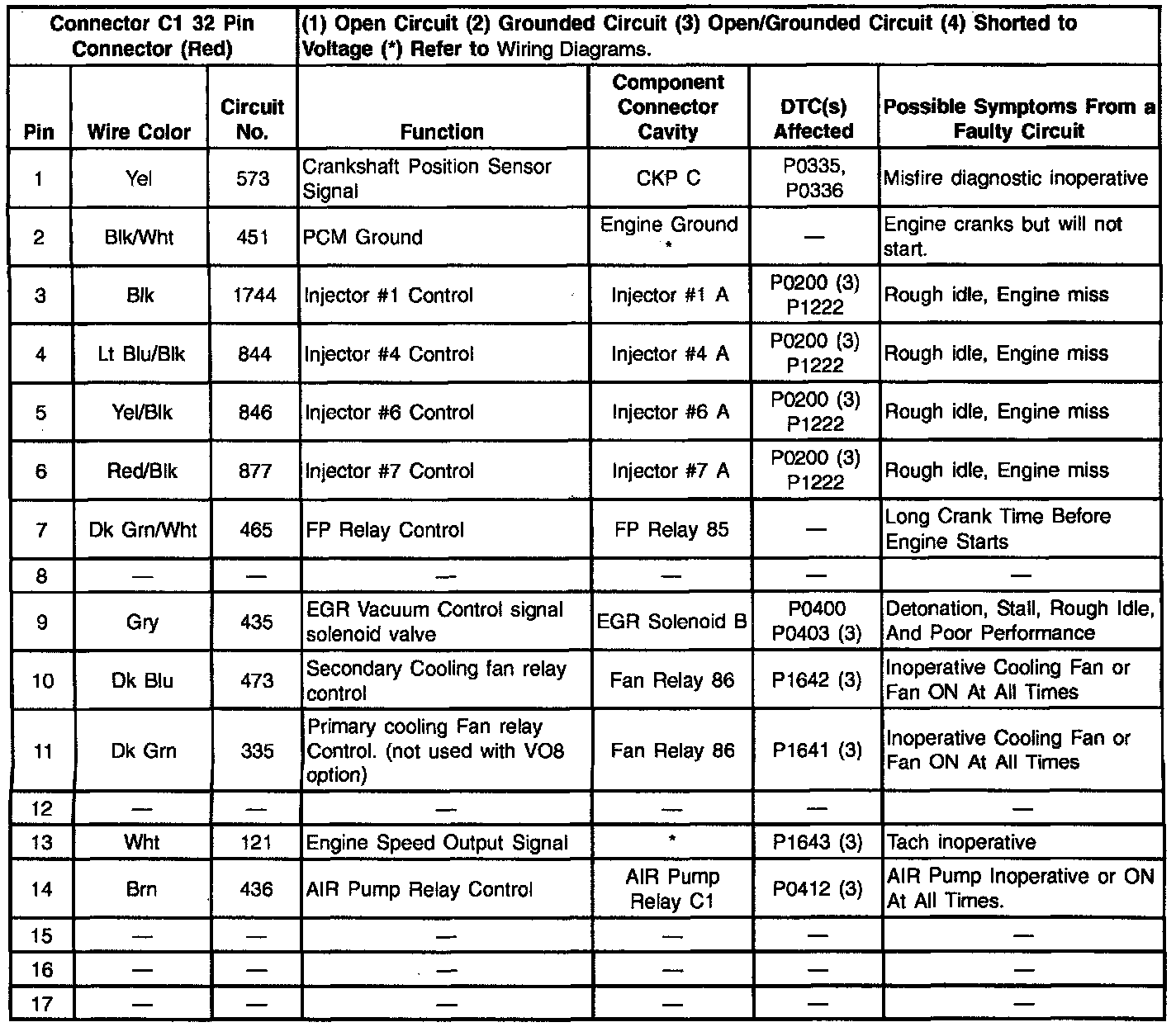

CONNECTOR C1 (RED) PINS 1 - 17
Diagnostic Chart:

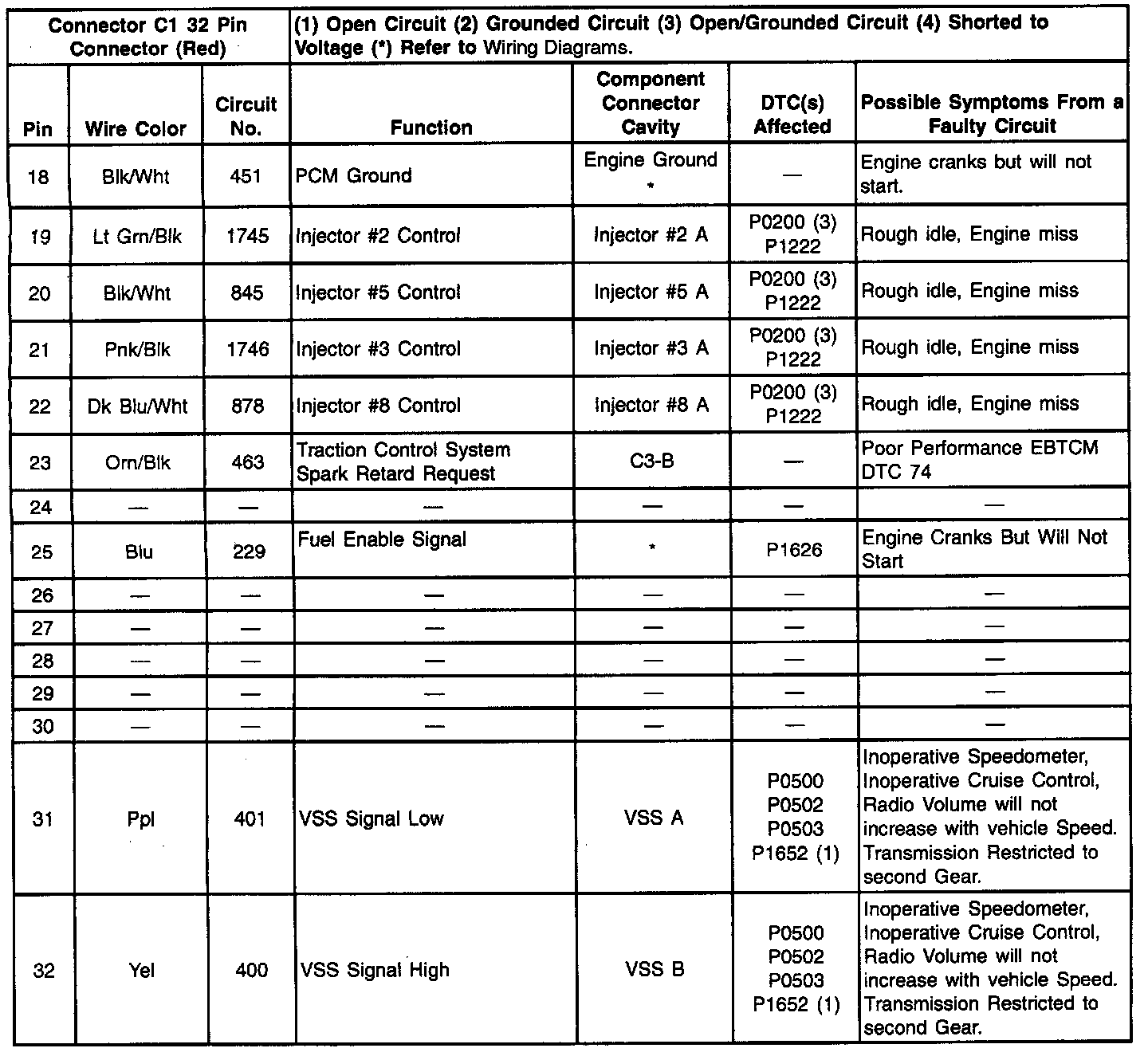

CONNECTOR C1 (RED) PINS 18 - 32
Diagnostic Chart:
