Home >> Chevrolet >> 1996 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C1 (Blue) >> Pin Information

Pin Information

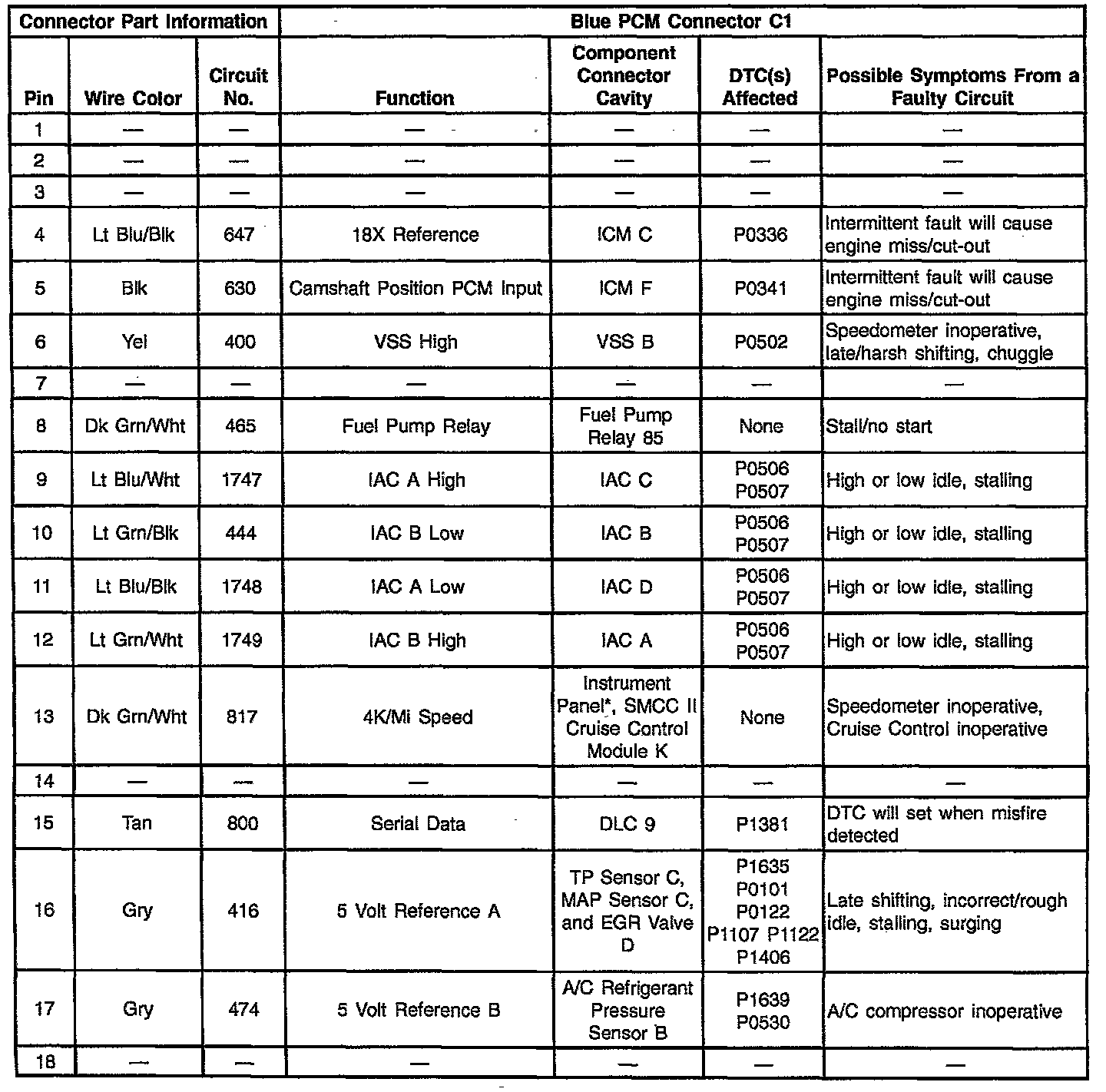

Pins 1-18:

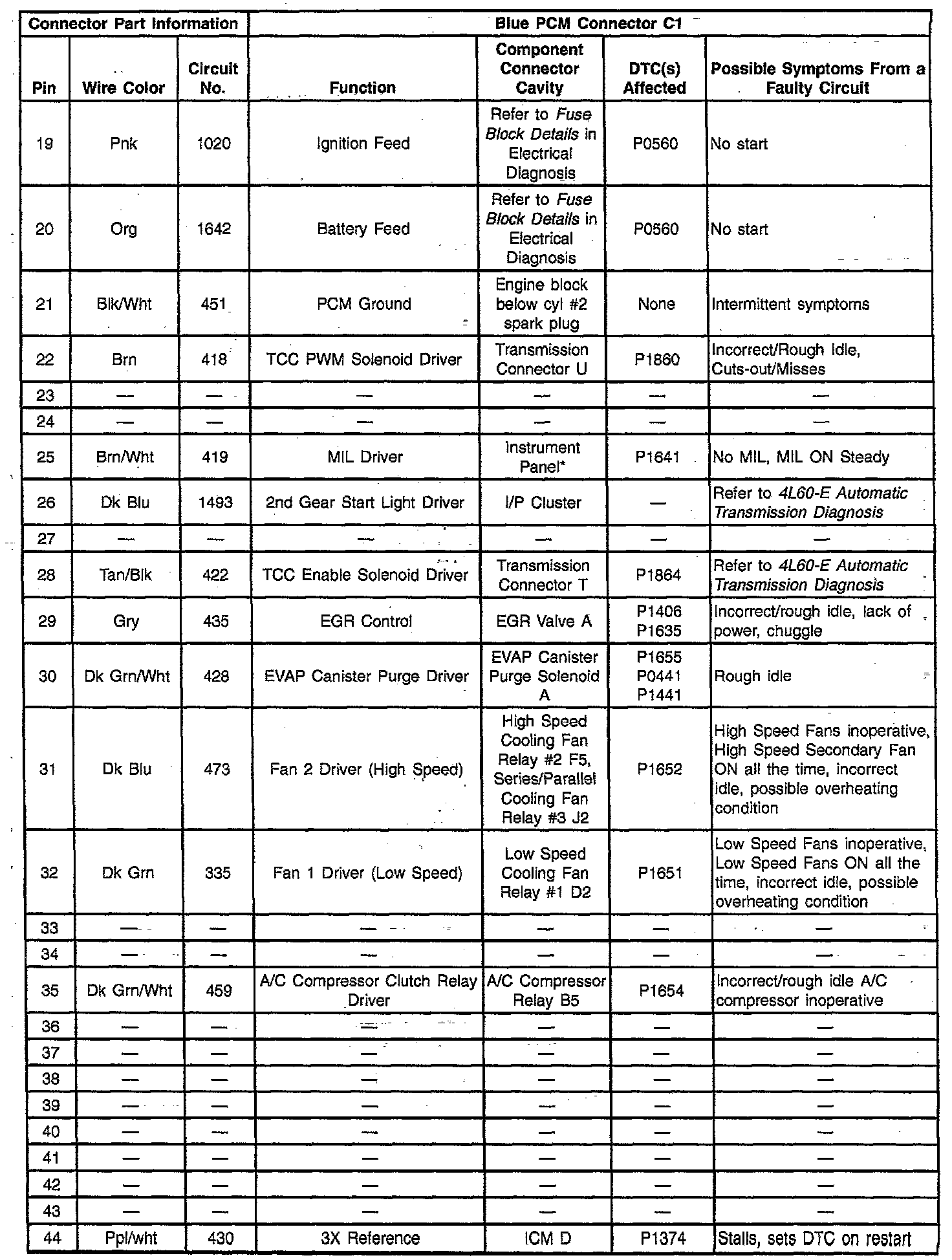

Pins 19-44:

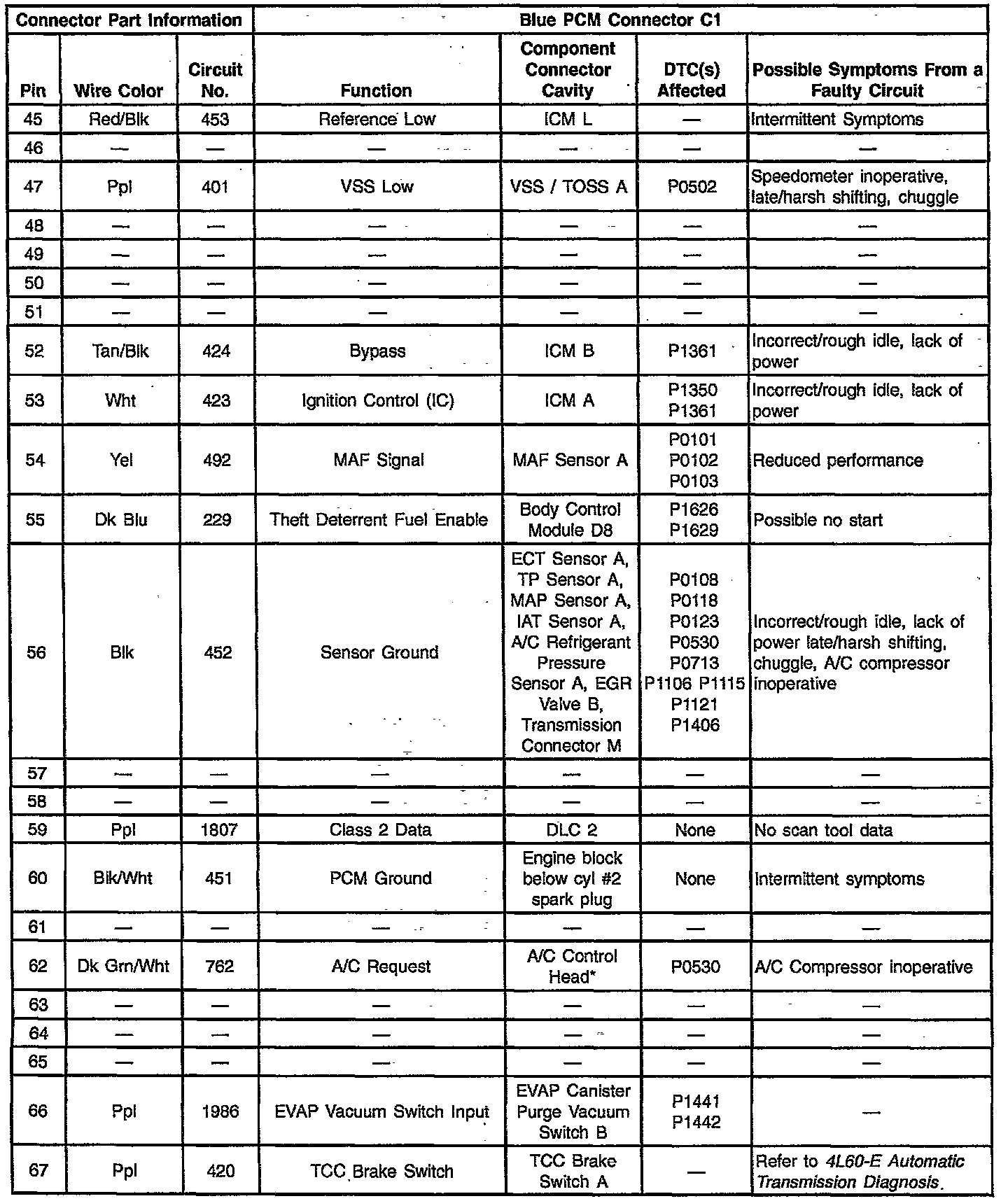

Pins 45-67:

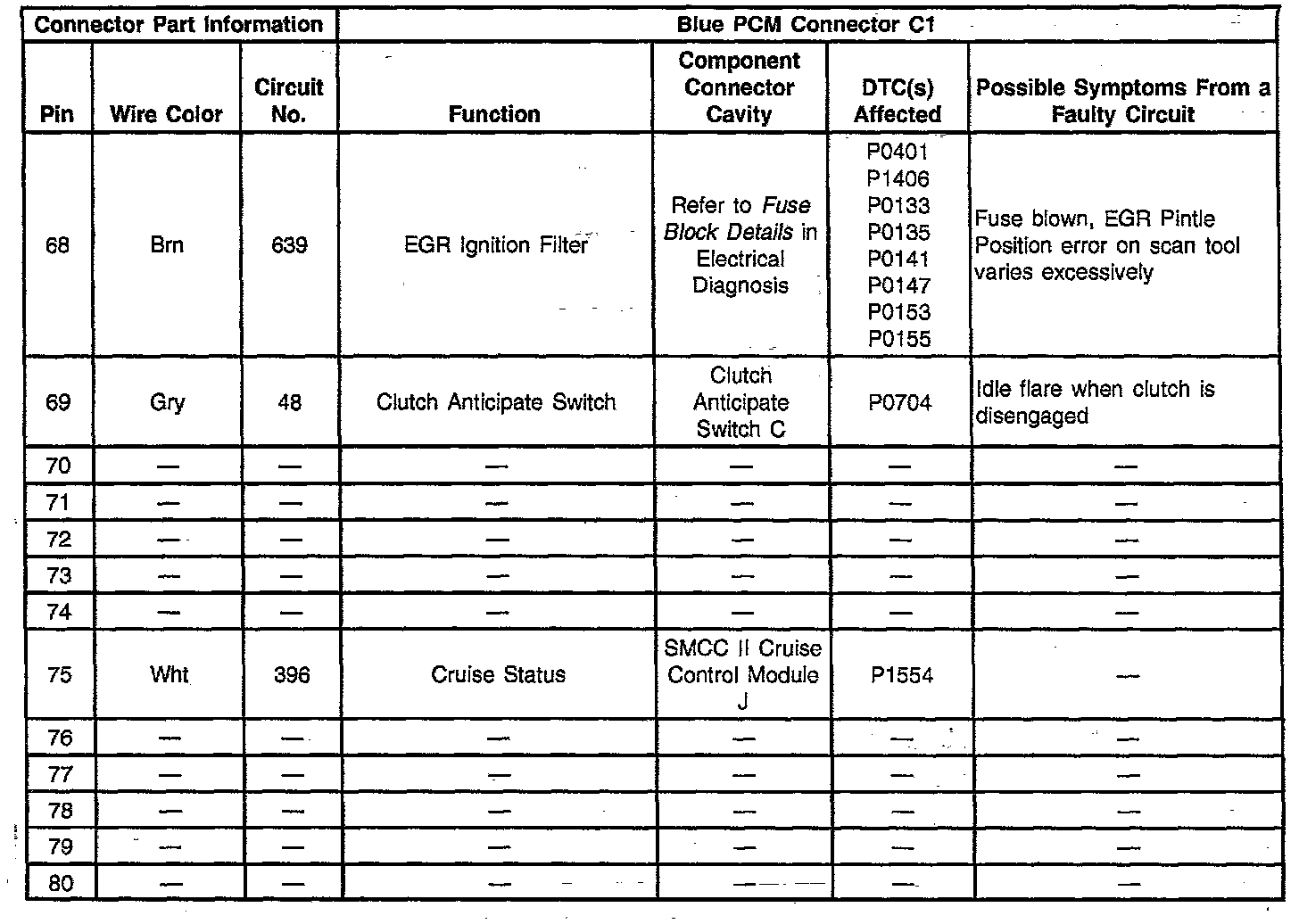

Pins 68-80:
