Compact Disc Player (CD)

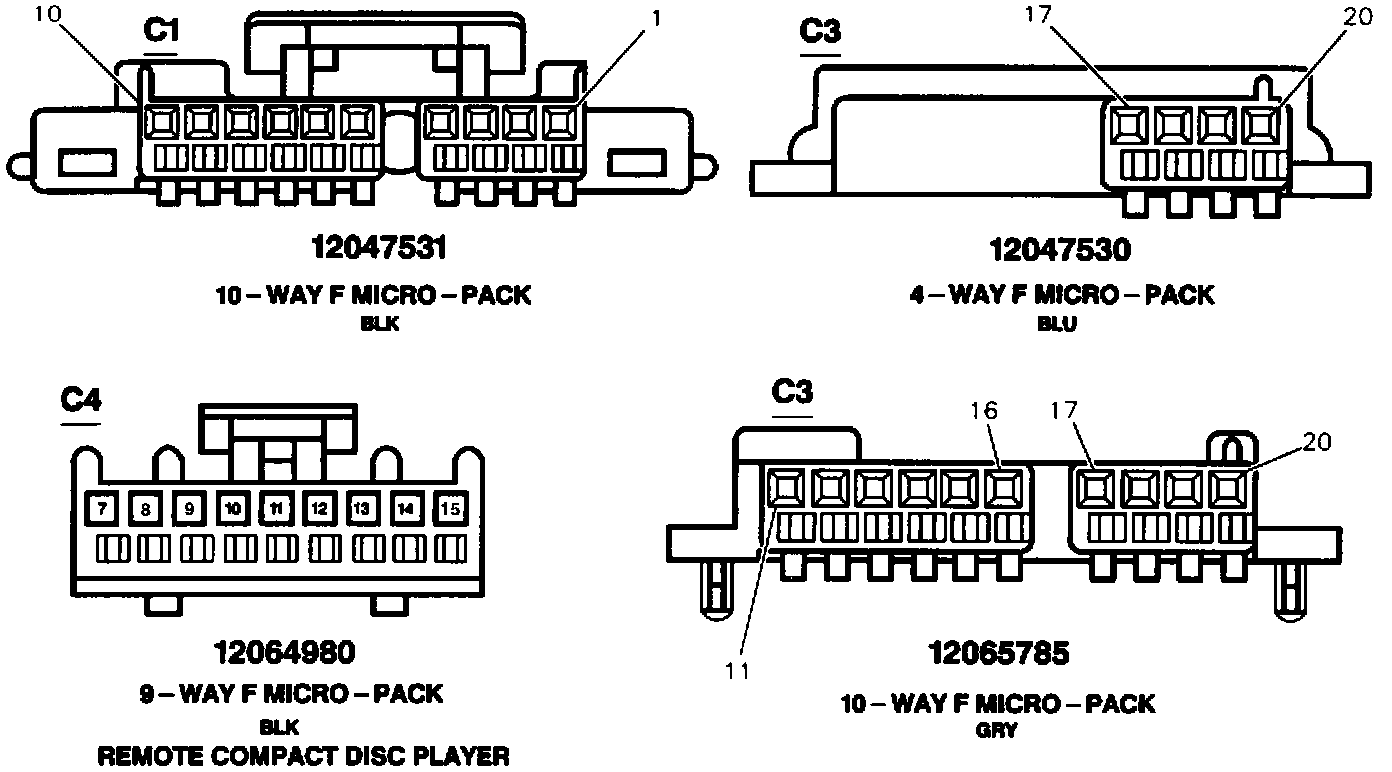

Remote Compact Disc Player: C1, C3, C4:

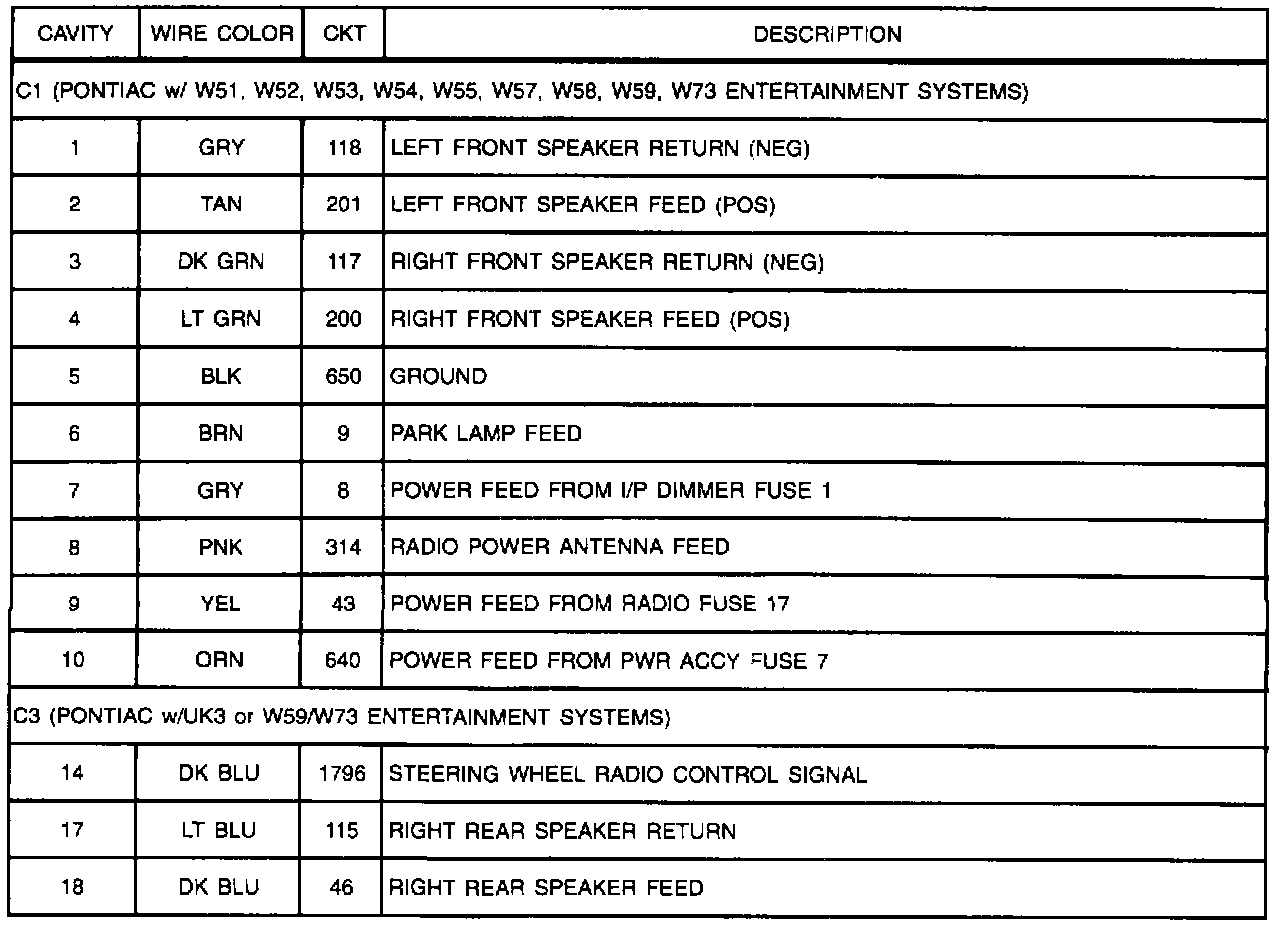

Compact Disc Player (Part 1 Of 3): C1, C3, C4:

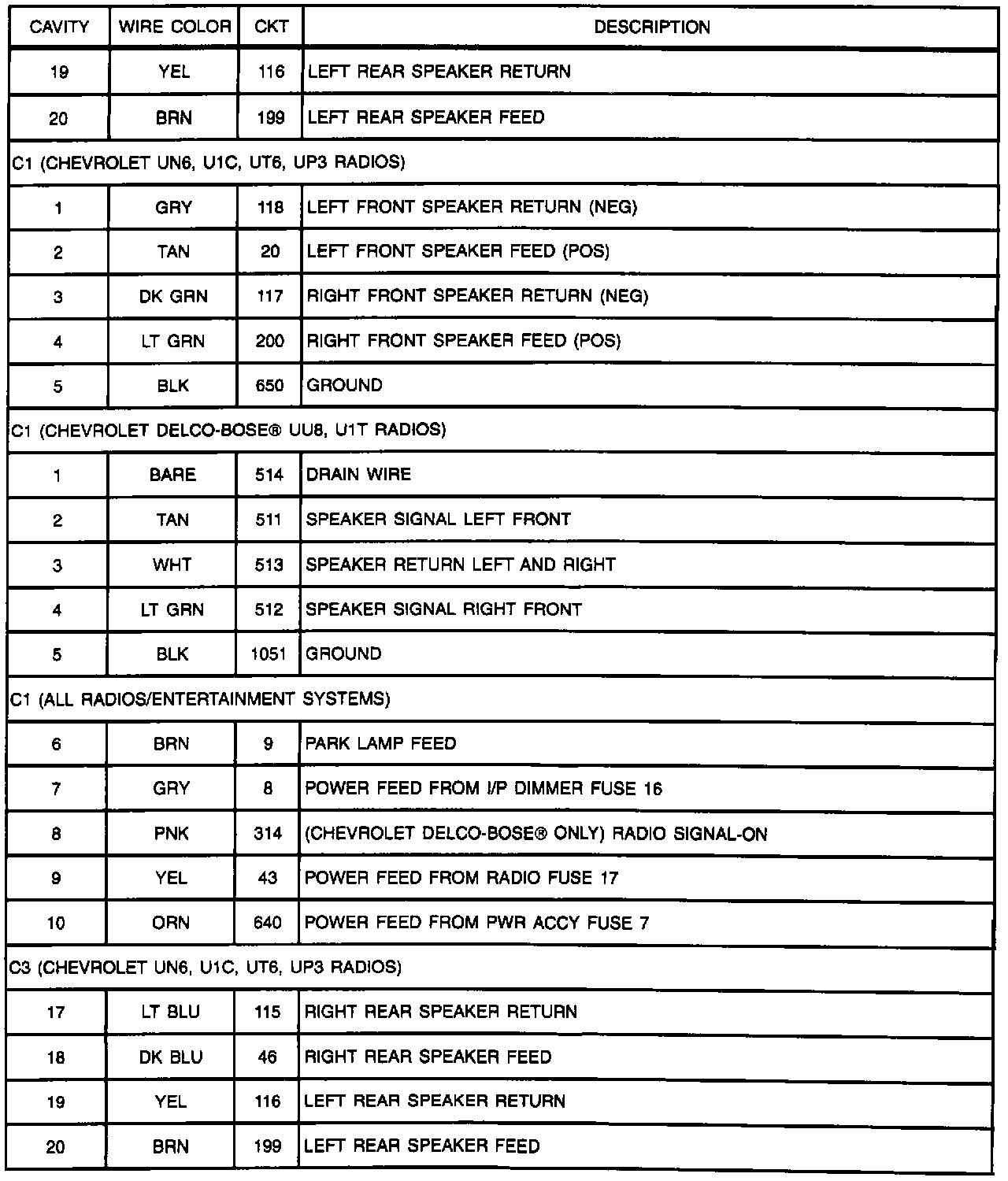

Remote Compact Disc Player (Part 2 Of 3): C1, C3, C4:



Remote Compact Disc Player (Part 3 Of 3): C1, C3, C4:
