Home >> Chevrolet >> 1996 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Speaker Midrange, Left Front

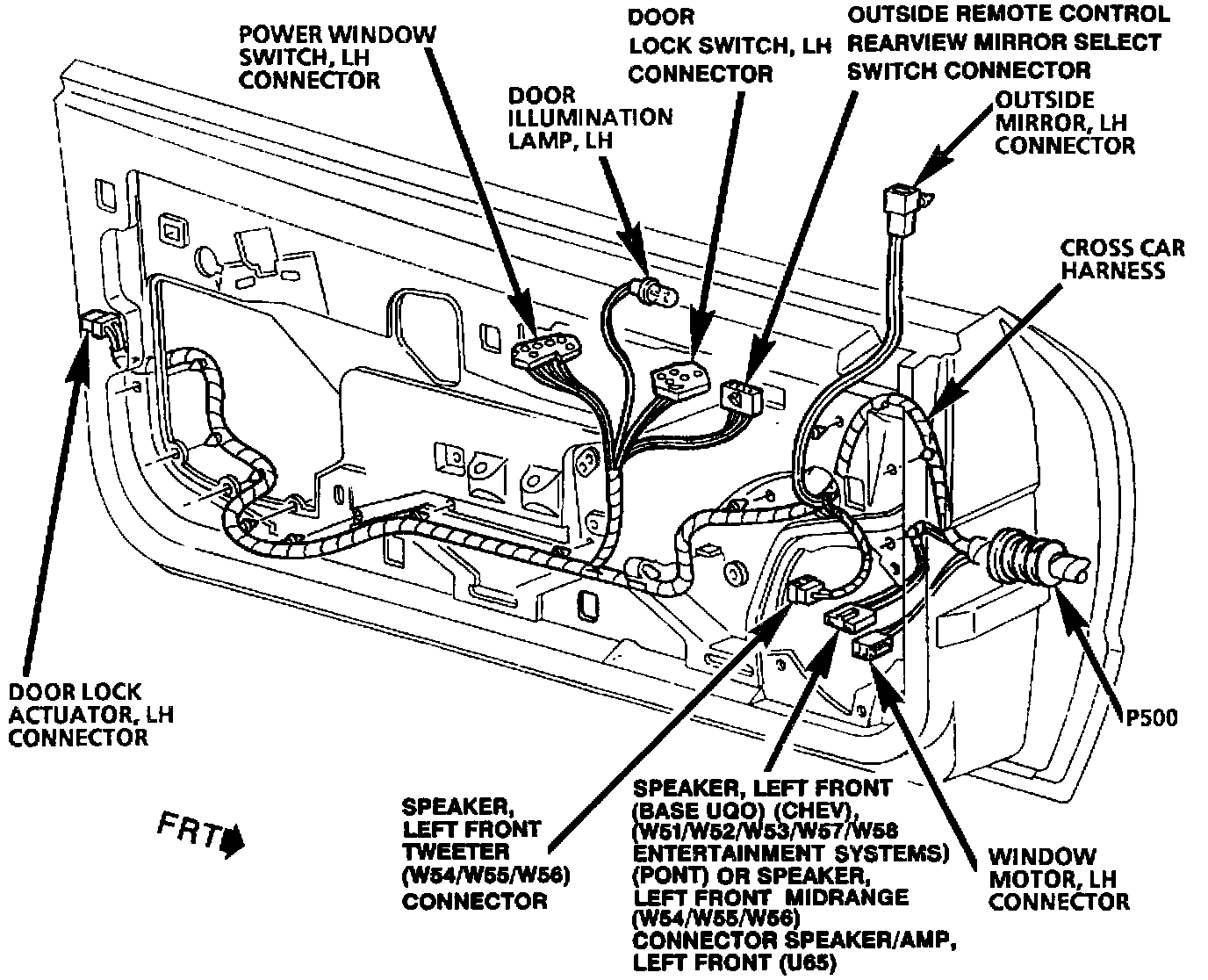

Speaker Midrange, Left Front

Behind LH Door Trim (RH Door Similar):
