Home >> Chevrolet >> 1996 >> Beretta V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> C2

C2

Connector View:

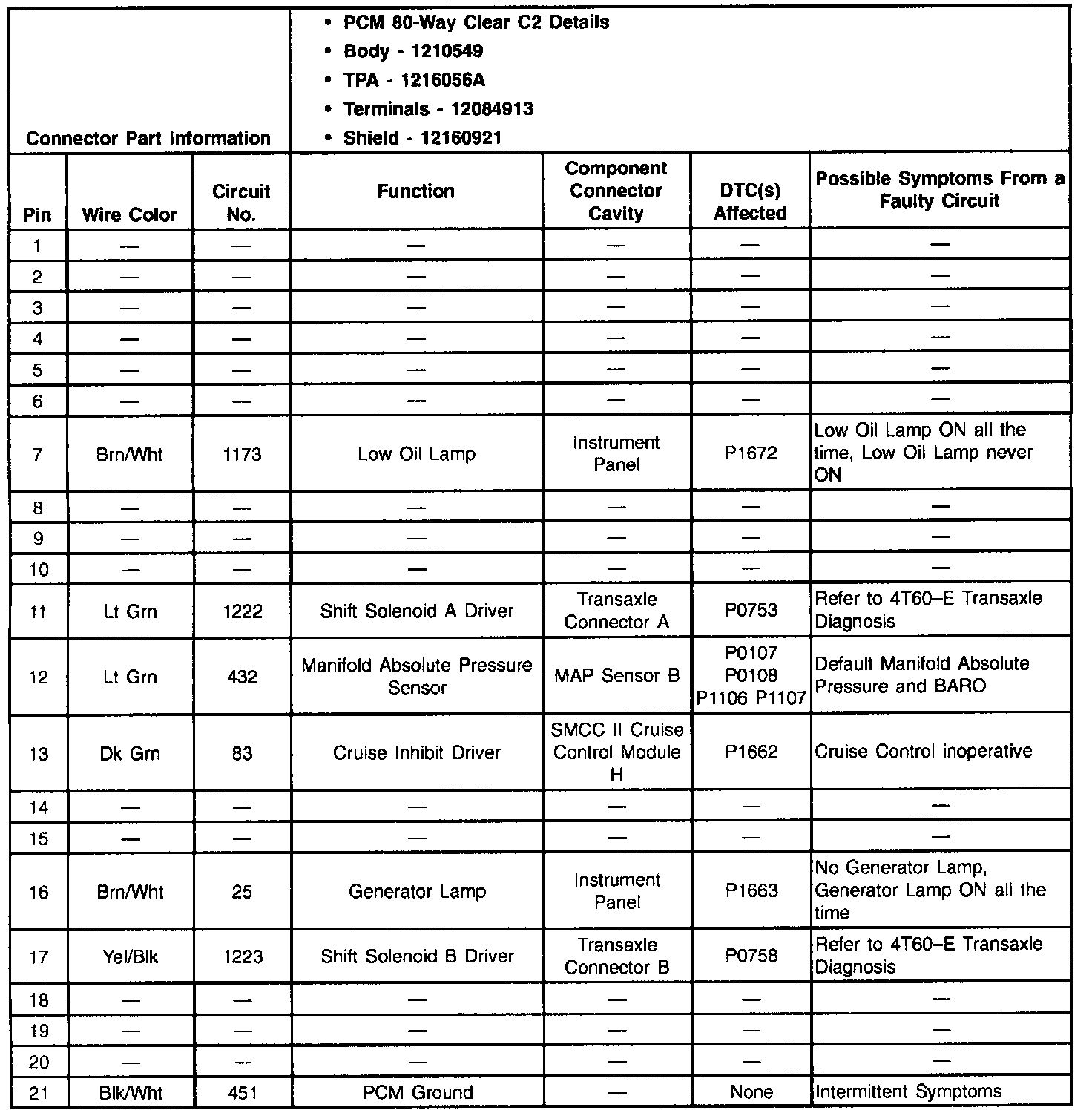

Pins 1-21:

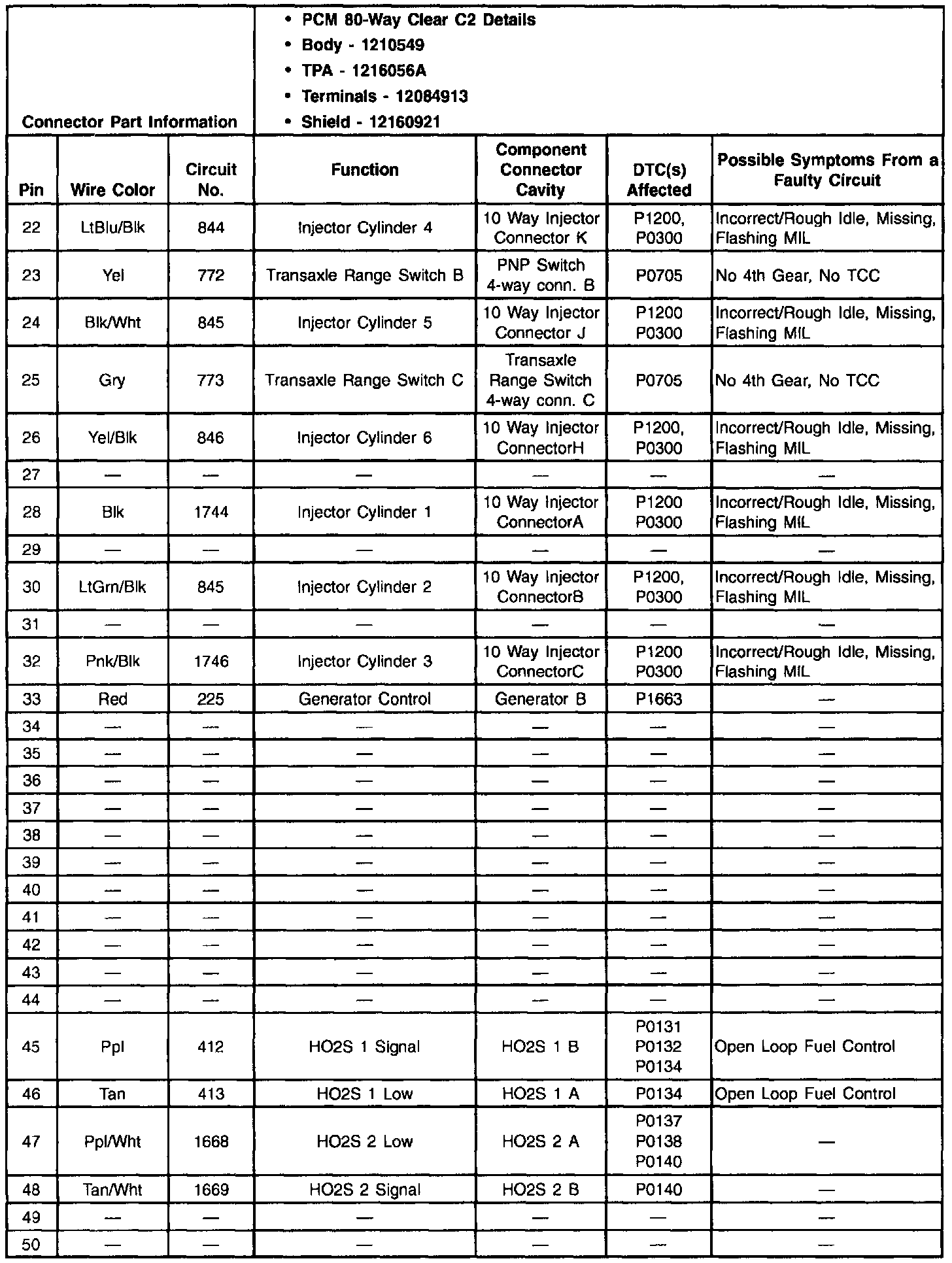

Pins 22-50:

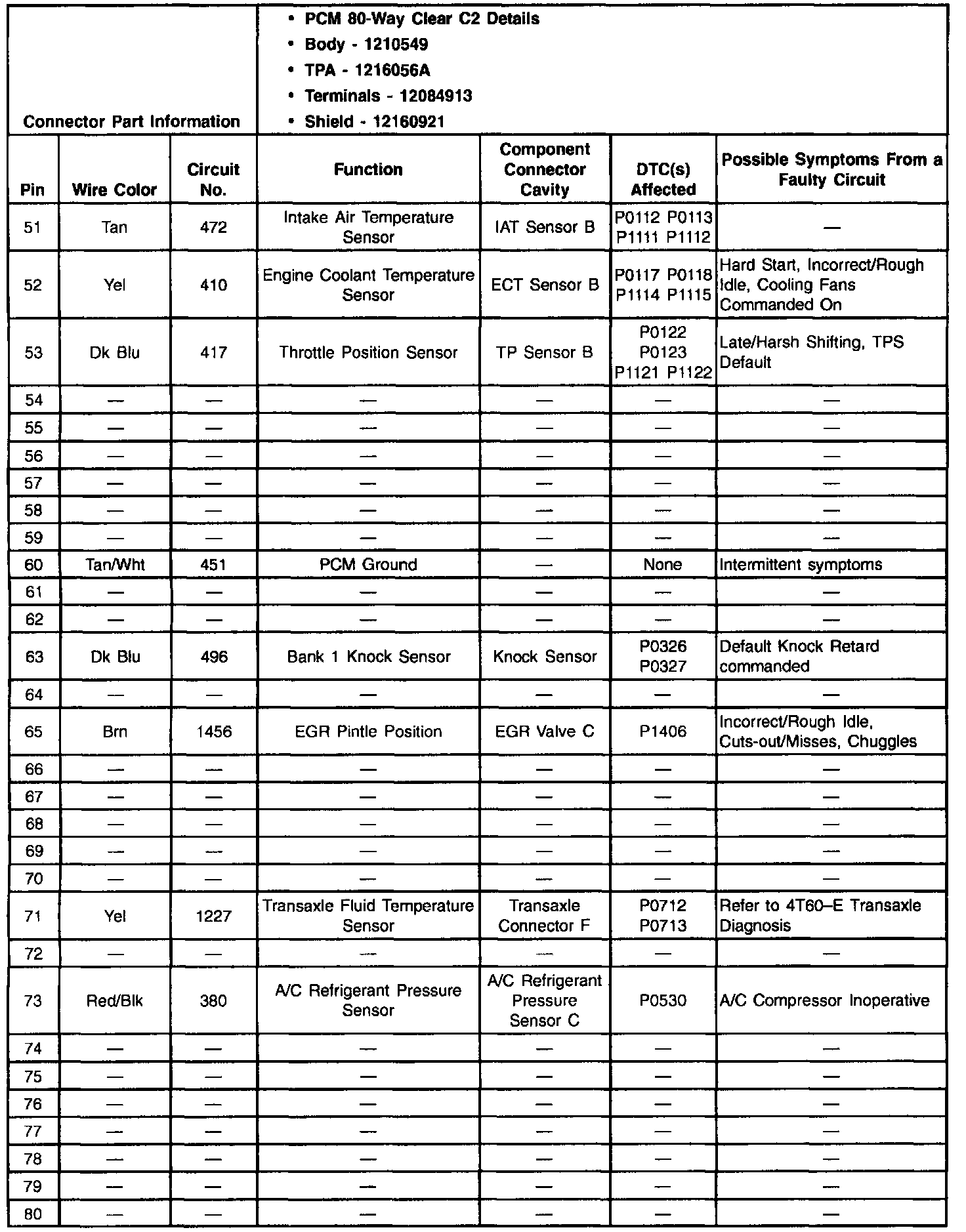

Pins 51-80:
