Beretta L4-2.2L VIN 4
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Windshield Washer Switch
Windshield Washer Switch

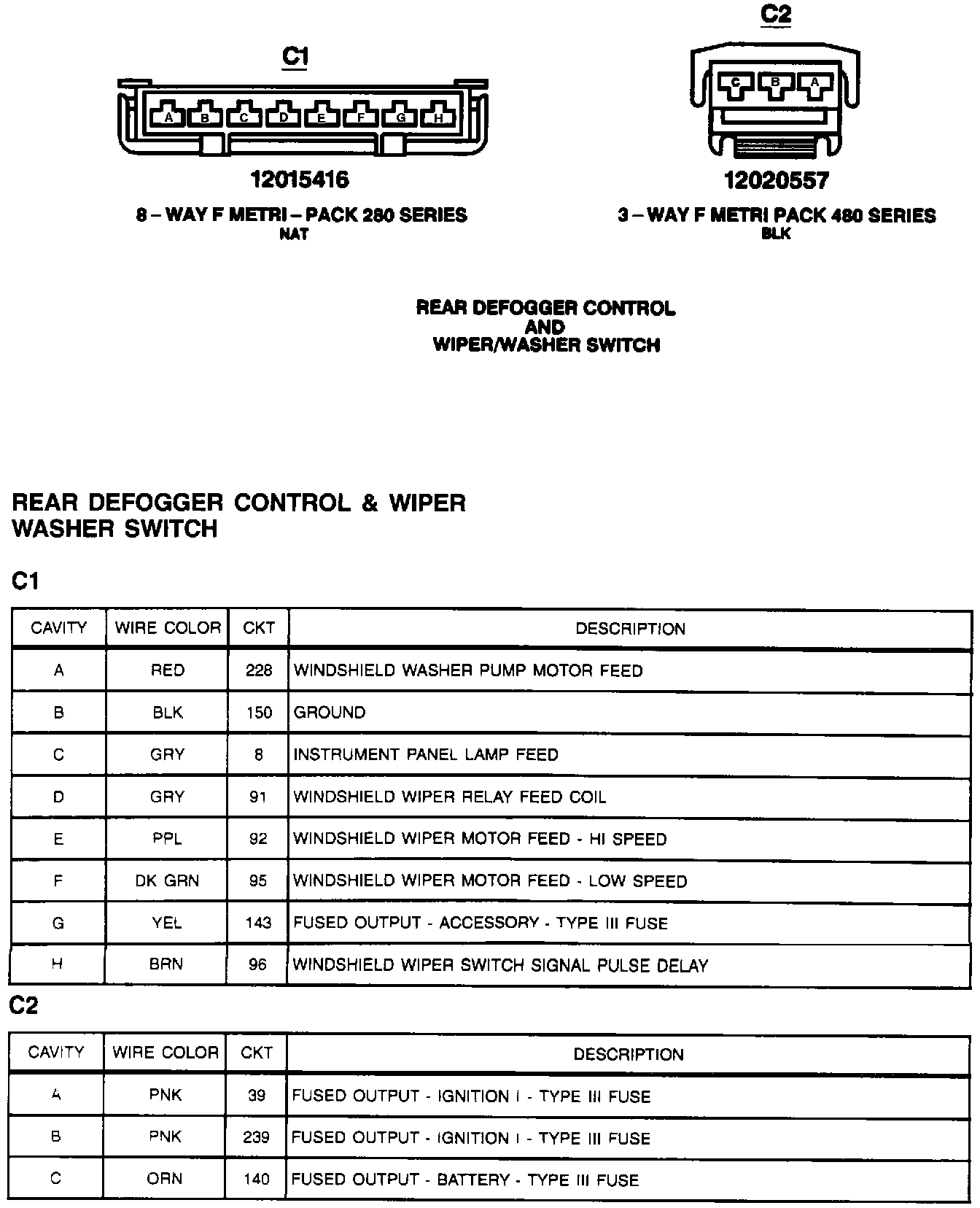

Rear Defogger Control And Wiper/washer Switch: C1 And C2:
