Pinout Description
Pinout Description

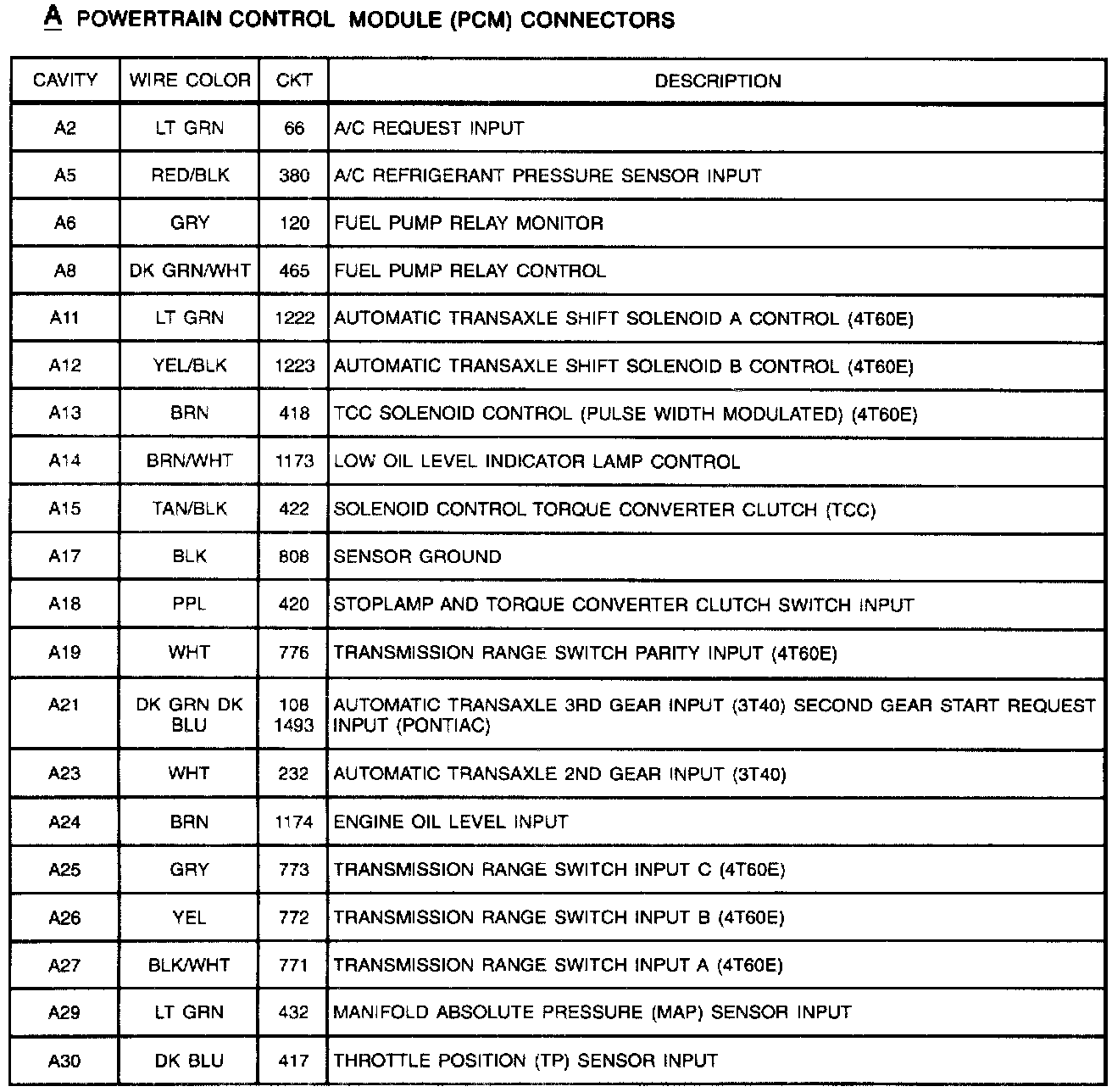

A: Powertrain Control Module (PCM) Connectors (Part 1 Of 2):
A: Powertrain Control Module (PCM) Connectors (Part 2 Of 2):
