Home >> Chevrolet >> 1995 >> Corsica L4-2.2L VIN 4 >> Repair and Diagnosis >> Cruise Control >> Cruise Control Module >> Diagrams >> Electrical Diagrams

Electrical Diagrams

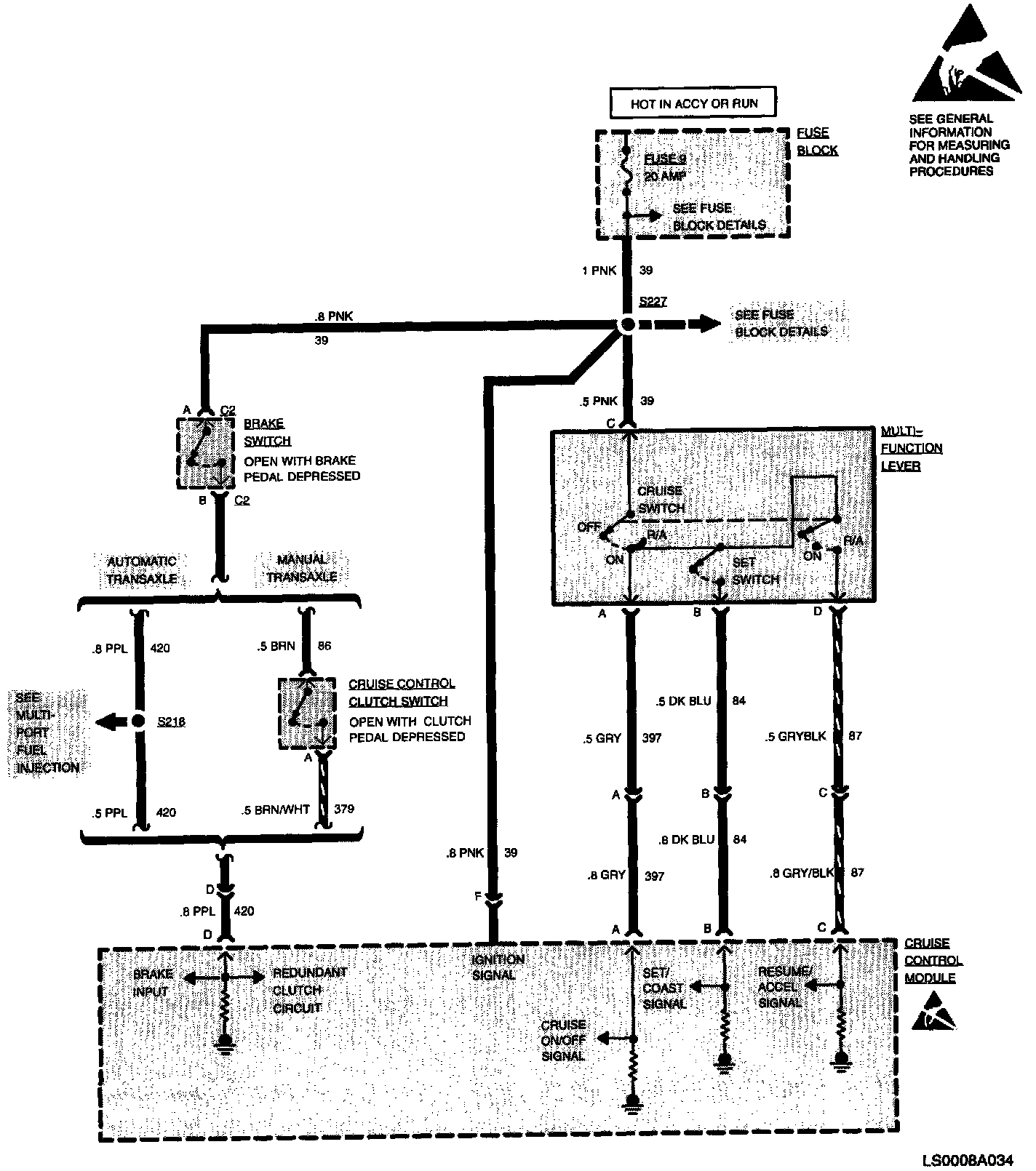

Cruise Control : K34 (1 Of 2 ):

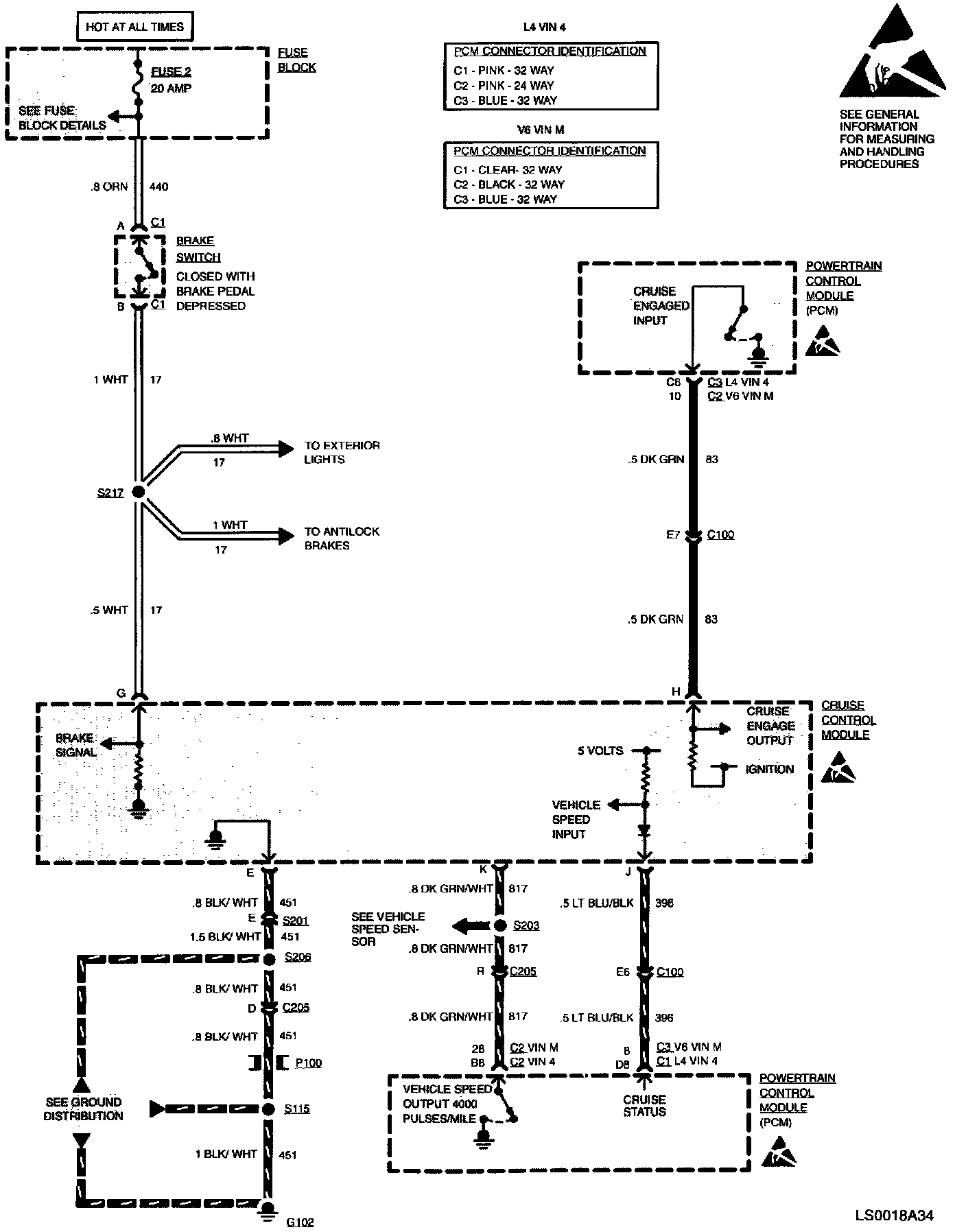

Cruise Control : K34 (2 Of 2):
