Home >> Chevrolet >> 1995 >> Cavalier/Z24 L4-138 2.3L DOHC VIN D MFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Specific Engine Data >> Misfire Data

Misfire Data

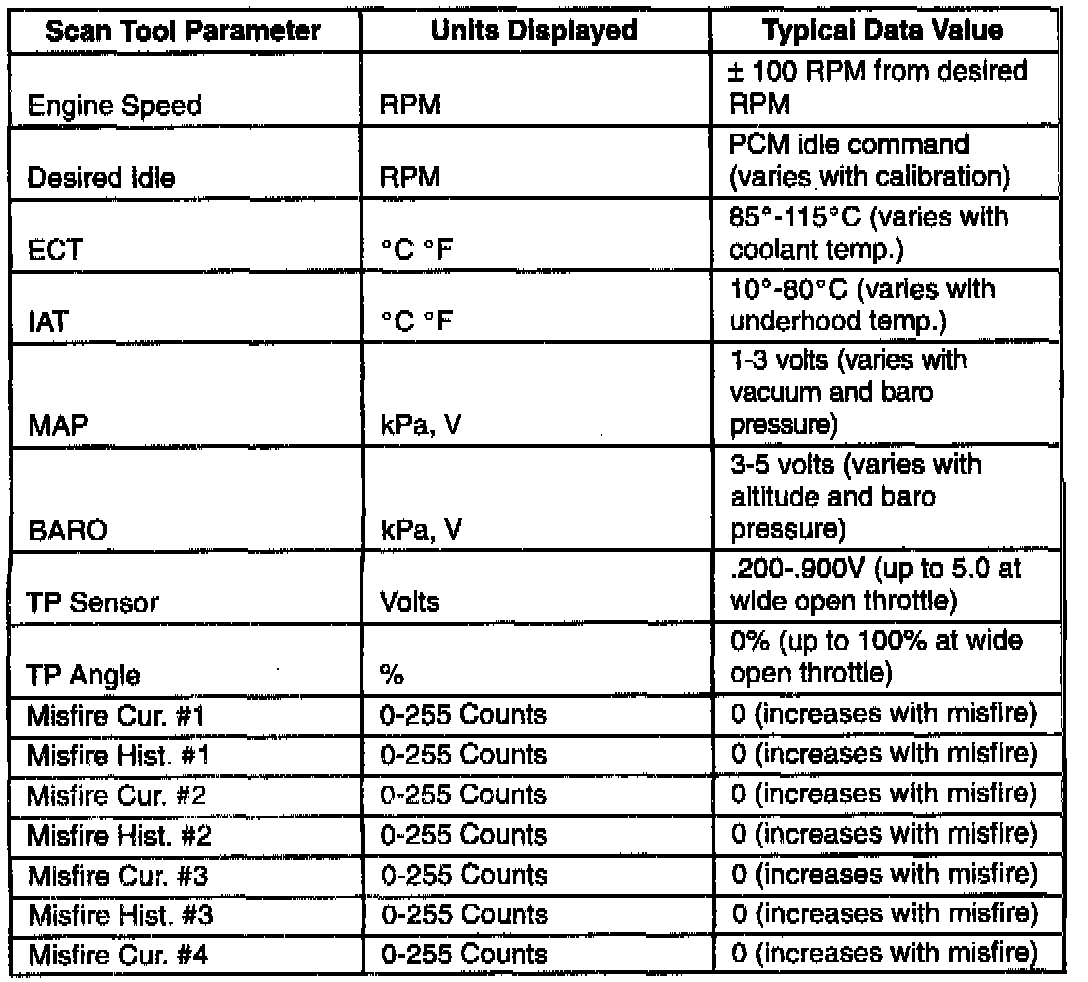

Scan Tool Data - Specific Eng. Misfire Data:



Scan Tool Data - Specific Eng. Misfire Data:
