Home >> Chevrolet >> 1995 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Fuse Block

Fuse Block

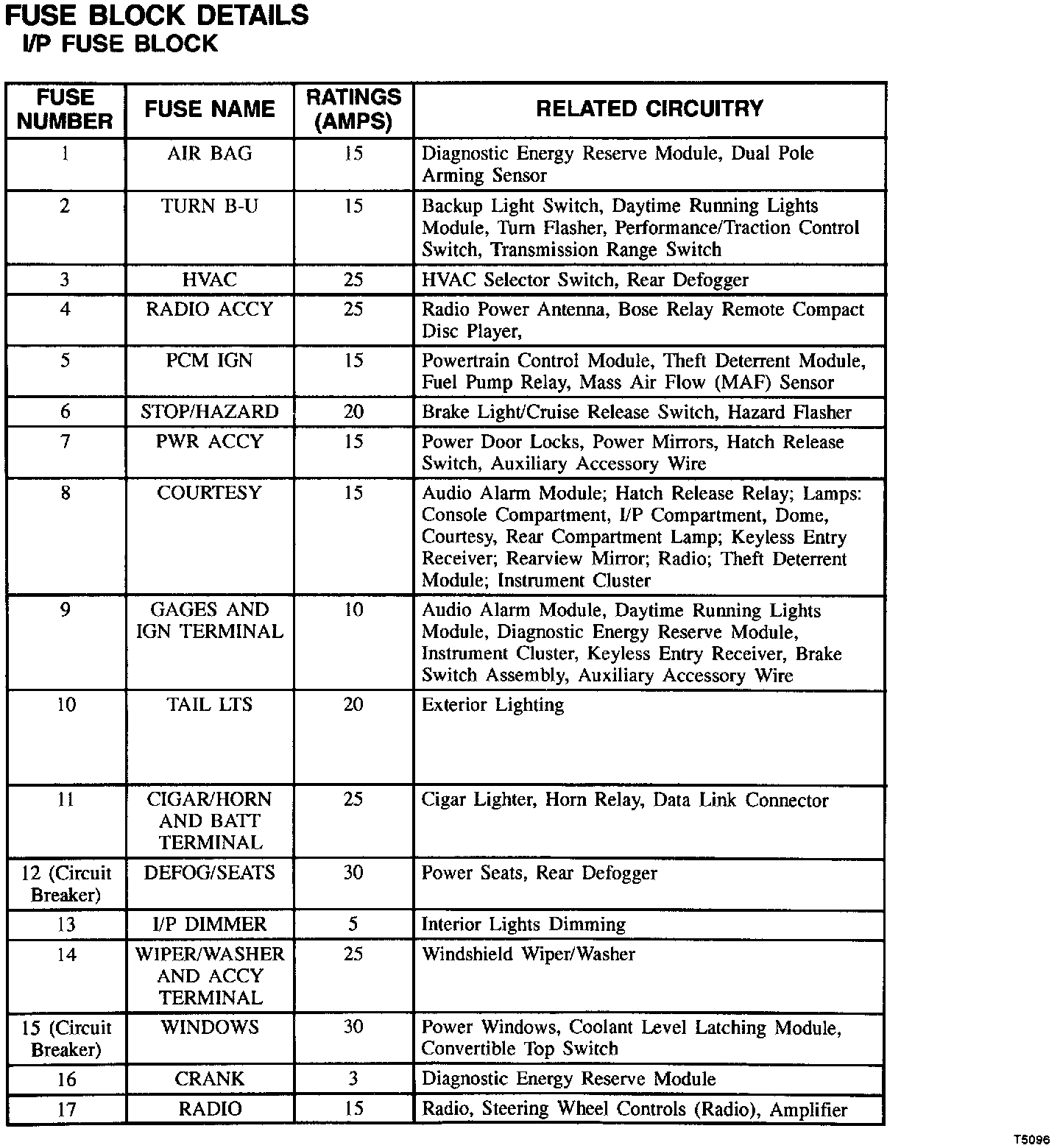

I/P Fuse Block Color And Rating:




Fuse Block Details: I/P Fuse Block:
