Electrical Accessory Panel

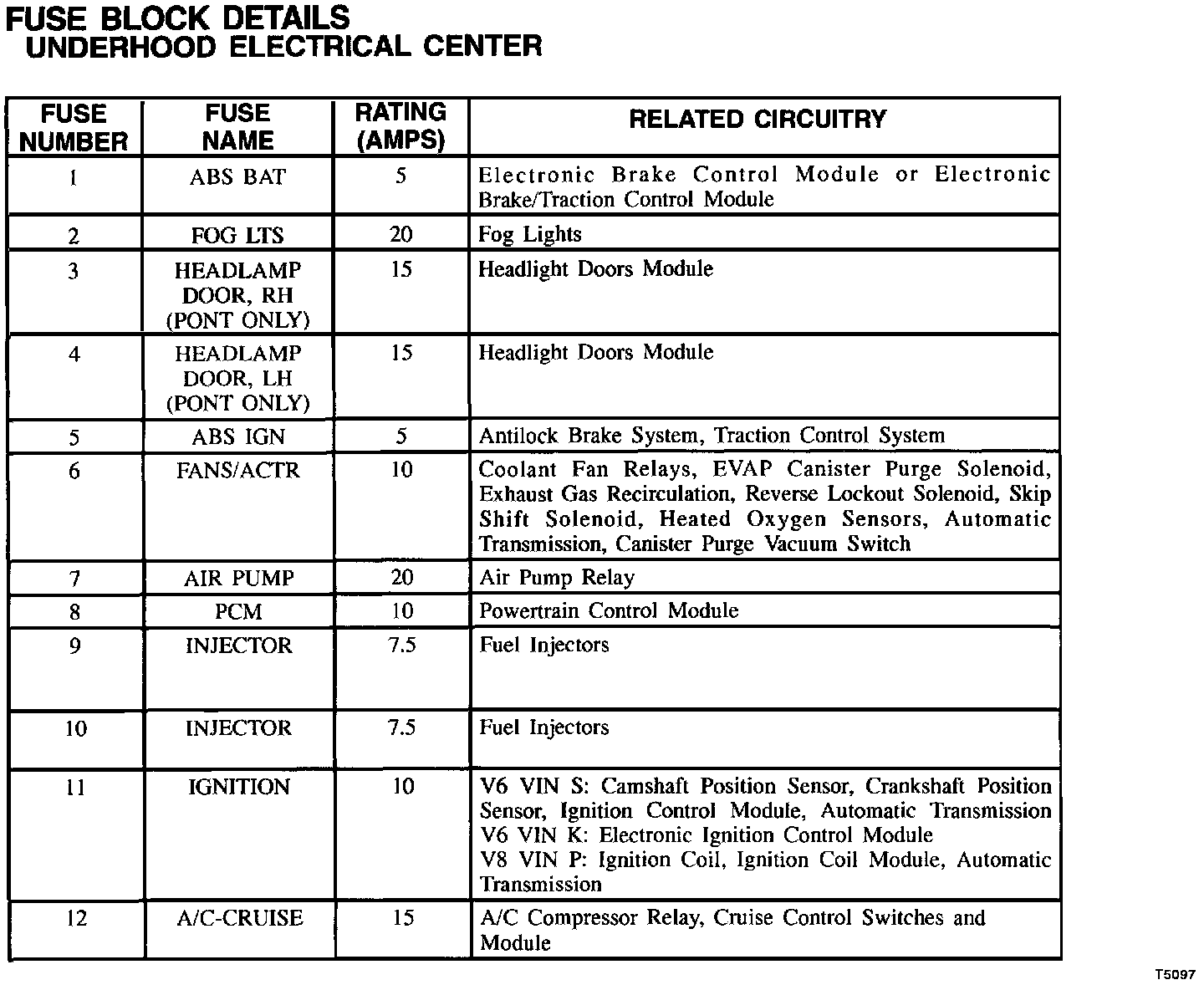

Fuse Block Details: Underhood Electrical Center:



Fuse Color And Rating:
