Pressure Switch Assembly Resistance Check

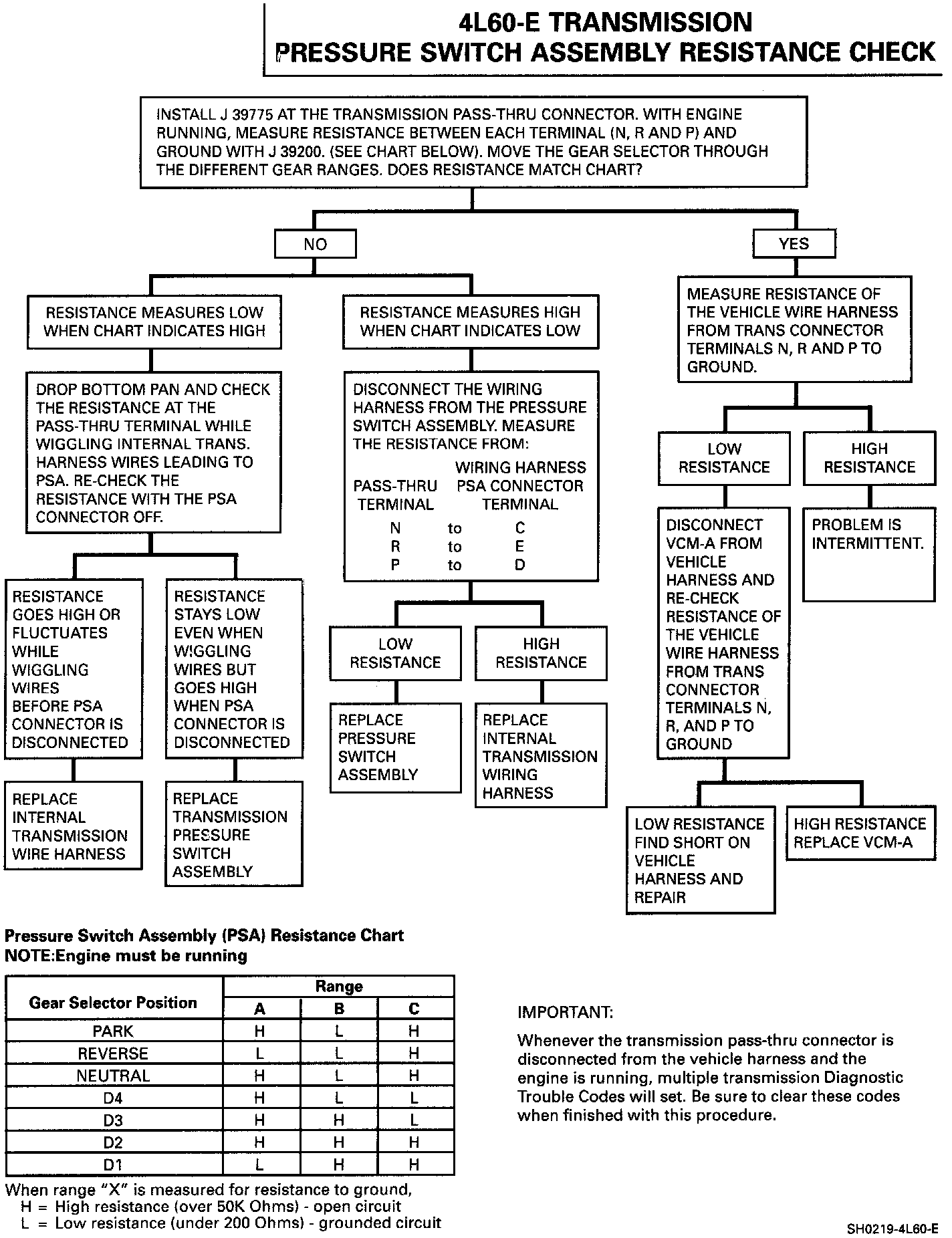

4L60-E Transmission Pressure Switch Assembly Resistance Check:
