Home >> Chevrolet >> 1995 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data List >> Engine Data >> Engine 1 Data

Engine 1 Data

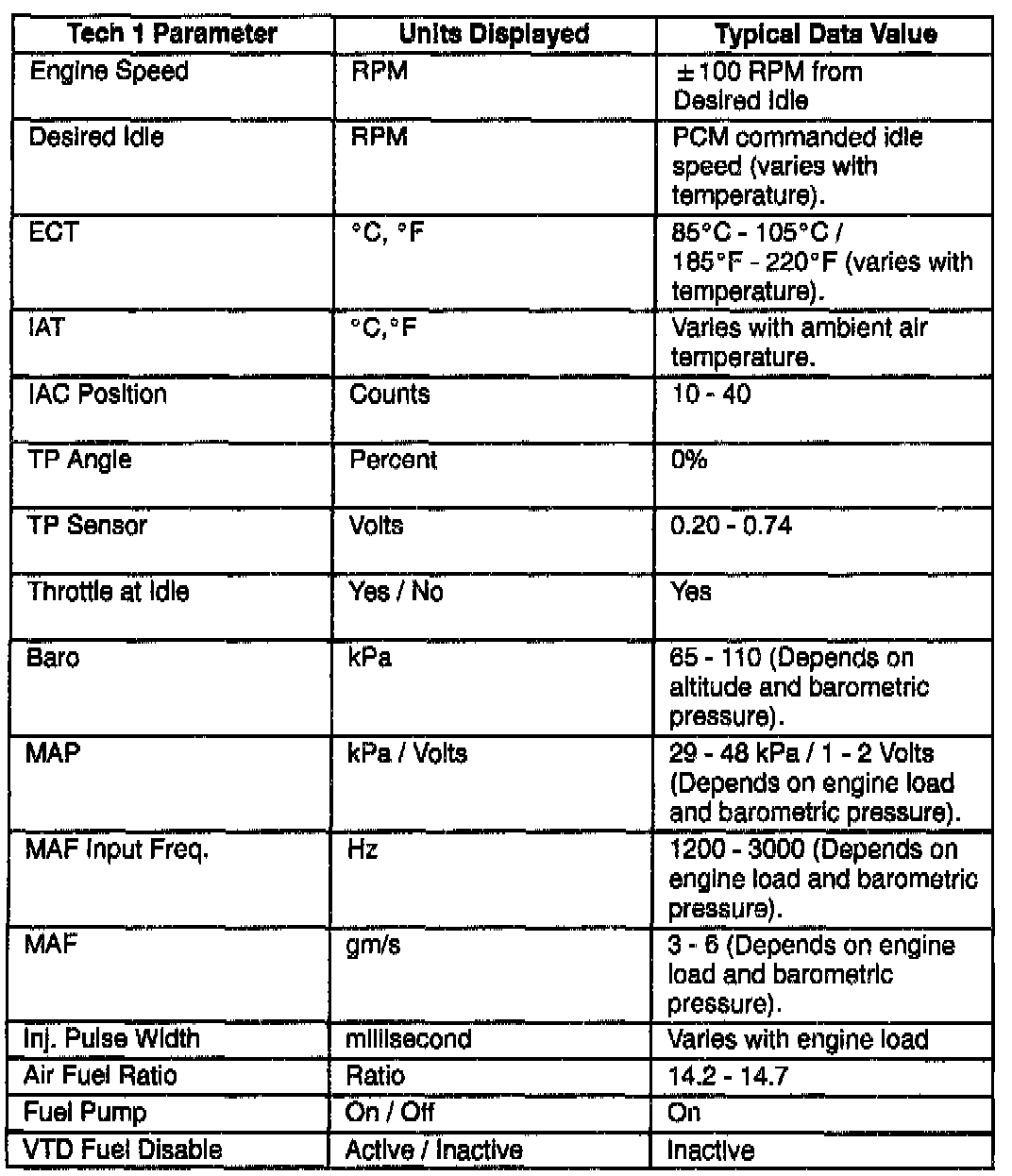

Engine 1 Data:

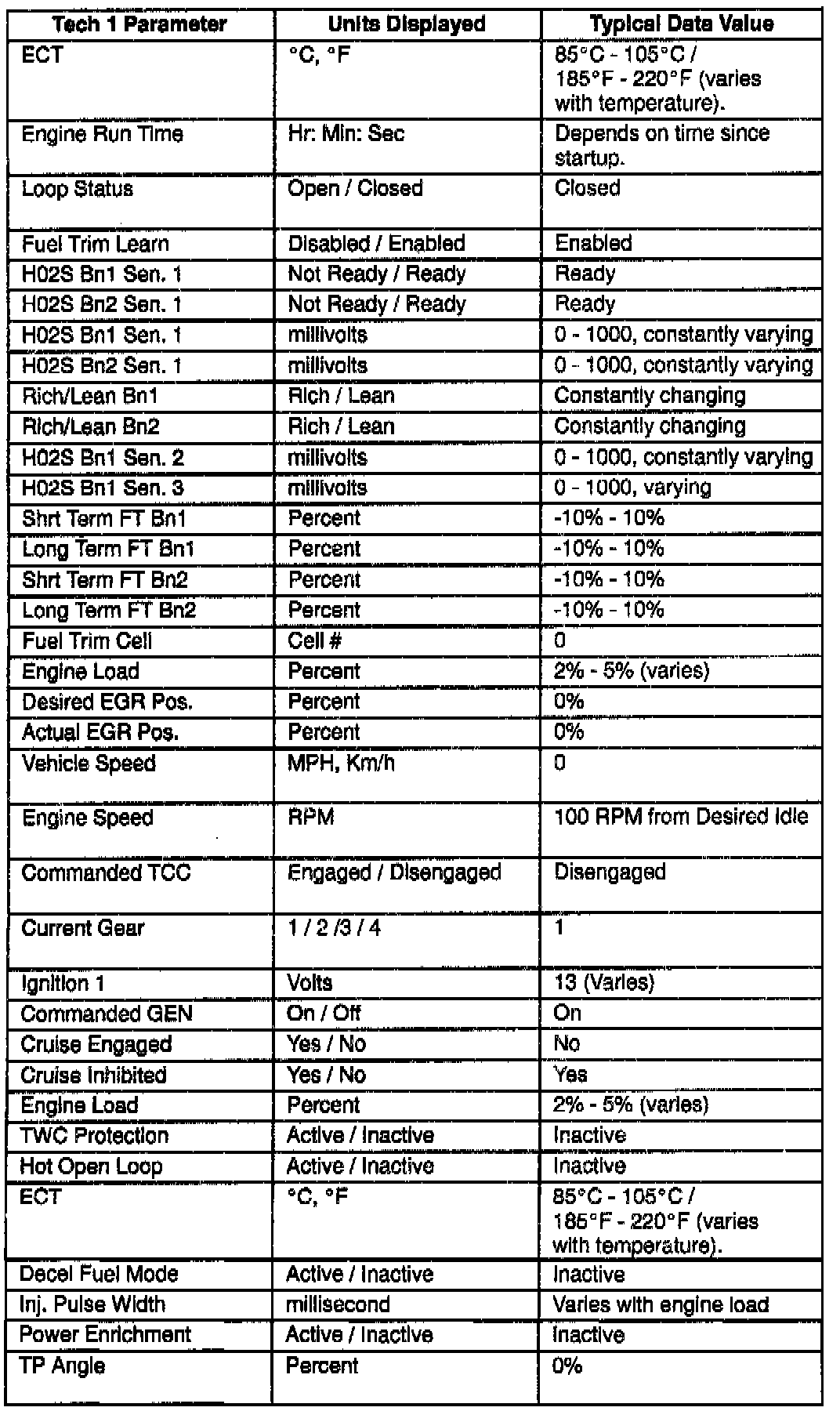

Engine 1 Data (continued):
