Home >> Chevrolet >> 1995 >> Camaro V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Locations

Engine Control Module: Locations

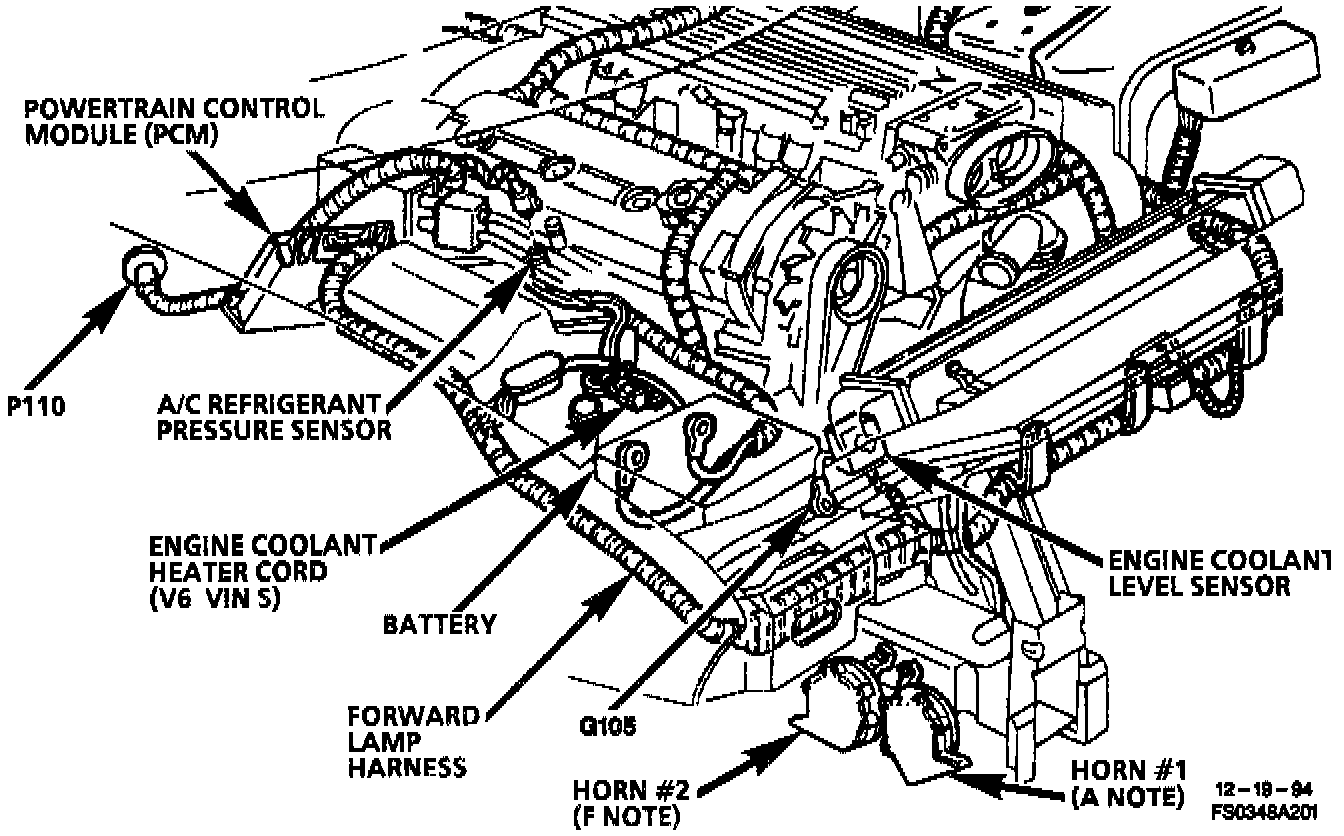

Engine Compartment (LT1, L32/L36 Similar):
