Pinout Information

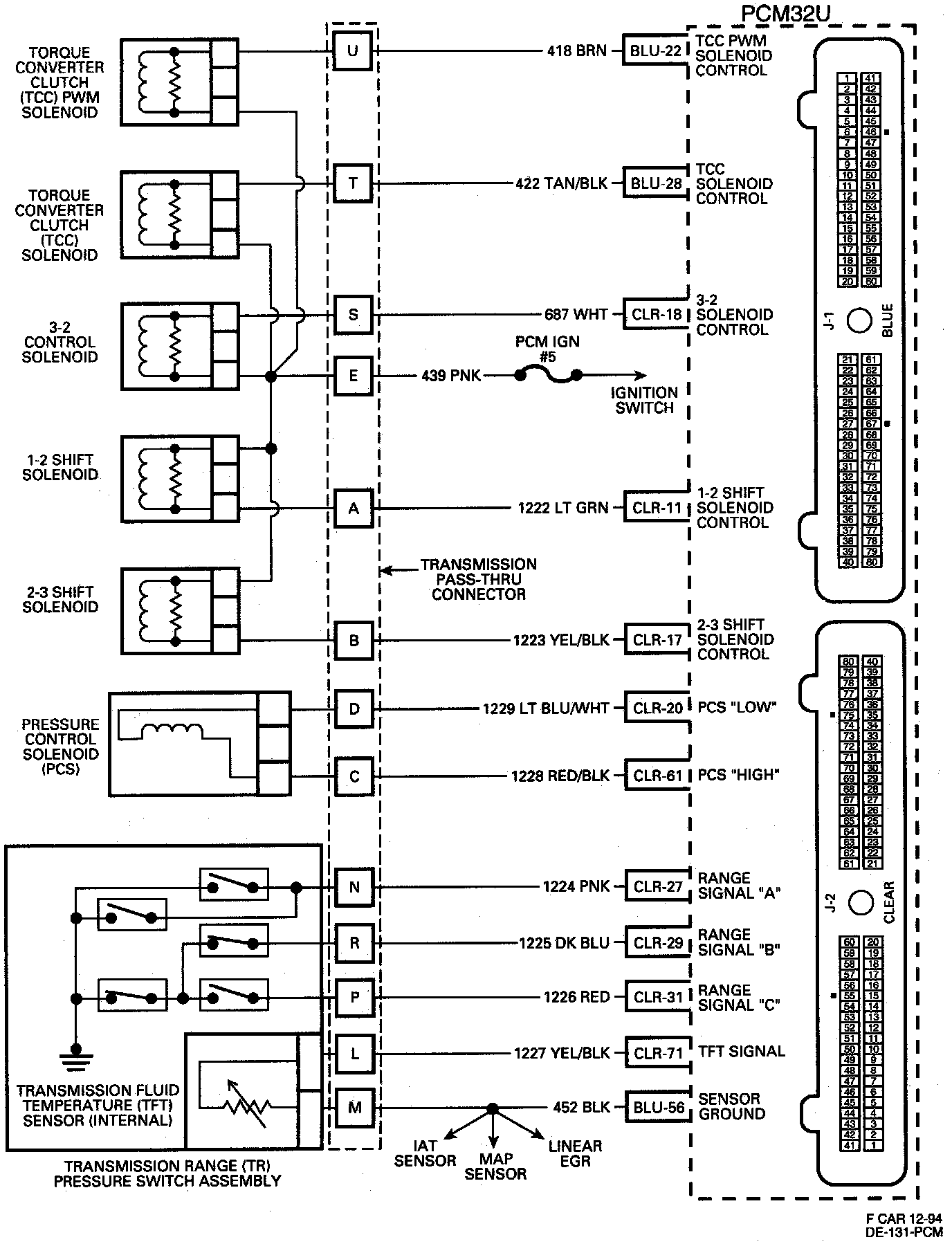

PCM (L36) - 4L60-E Transmission:

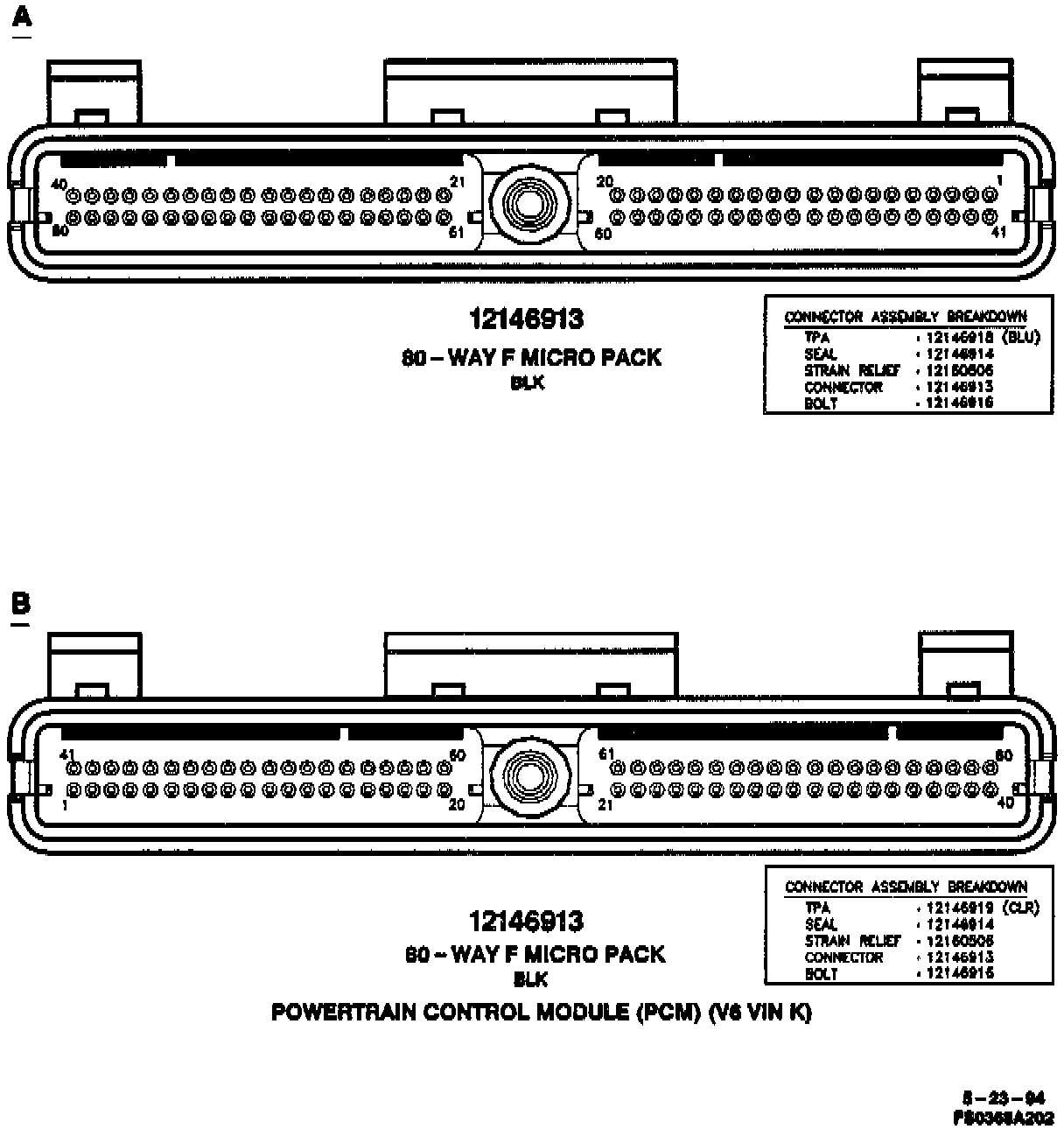

Connector View: Powertrain Control Module (PCM):
