Pinout Description

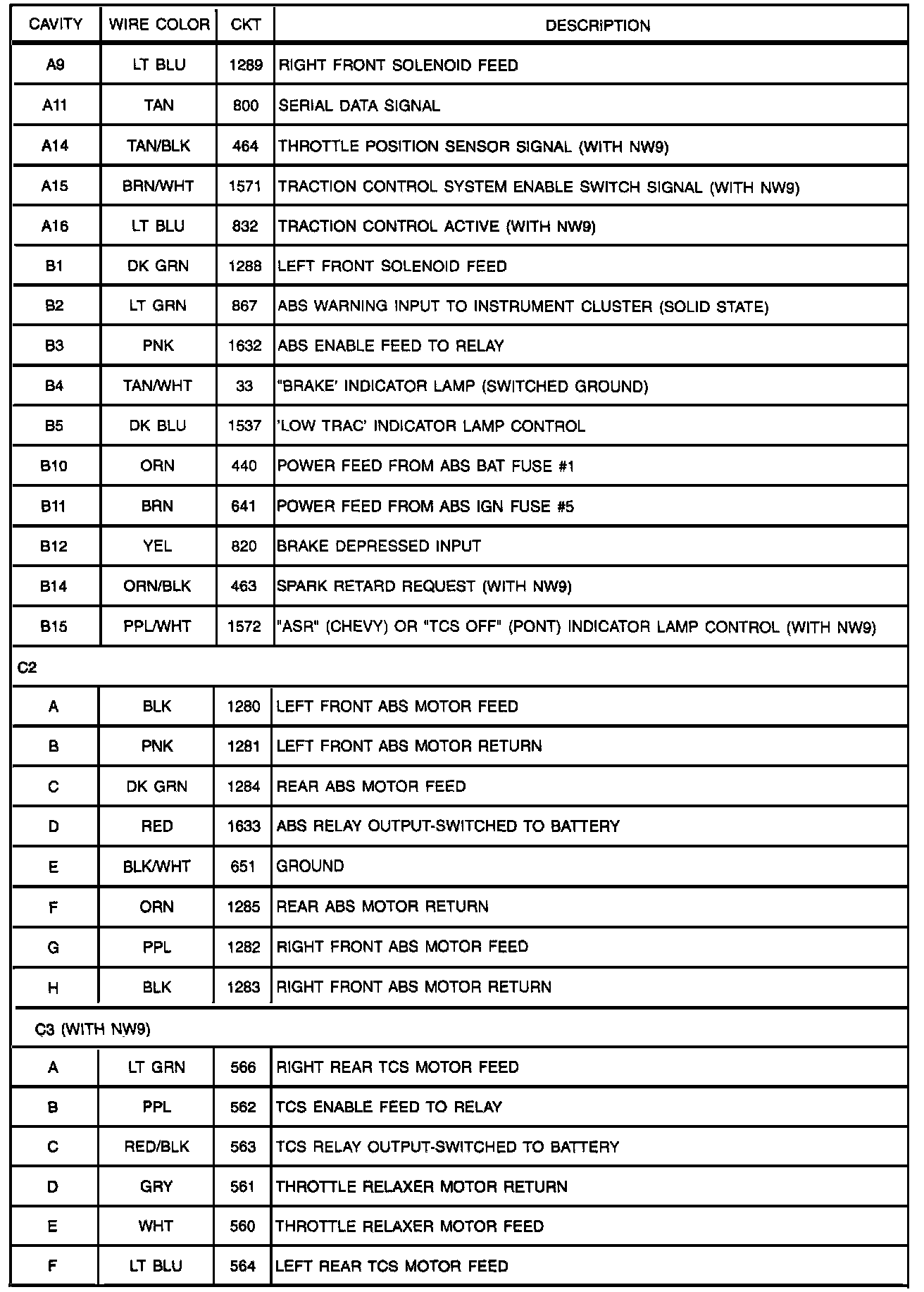

Wire Color And Description:

Wire Color And Description:

Wire Color And Description:
