Home >> Chevrolet >> 1995 >> Beretta L4-2.2L VIN 4 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Locations >> Console Window Switch Connector

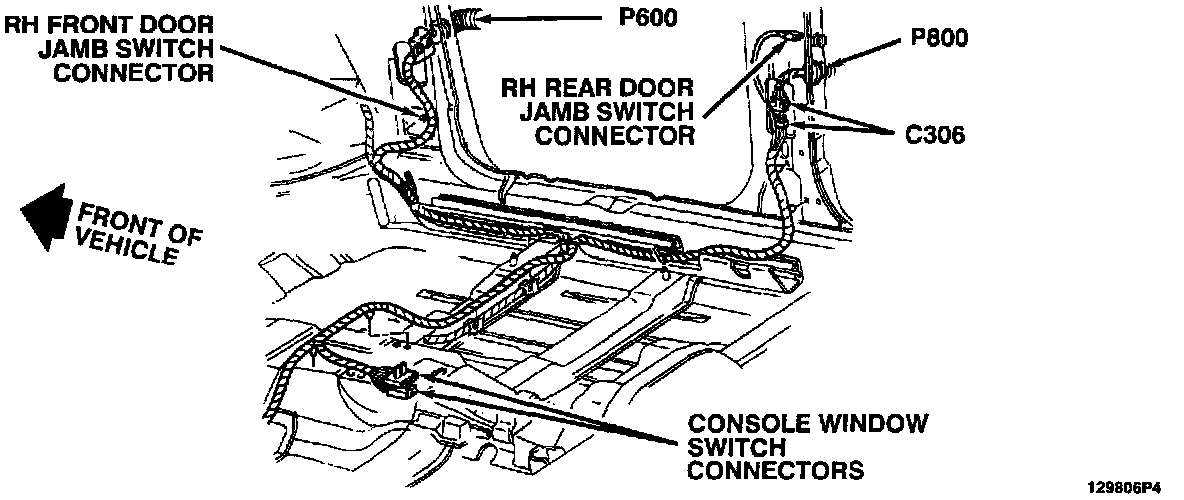

Console Window Switch Connector

RH Side Of Passenger Compartment (Corsica Shown, Beretta Similar):
