Home >> Chevrolet >> 1995 >> Beretta L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windows >> Power Window Switch

Power Window Switch

Console Window Switch:

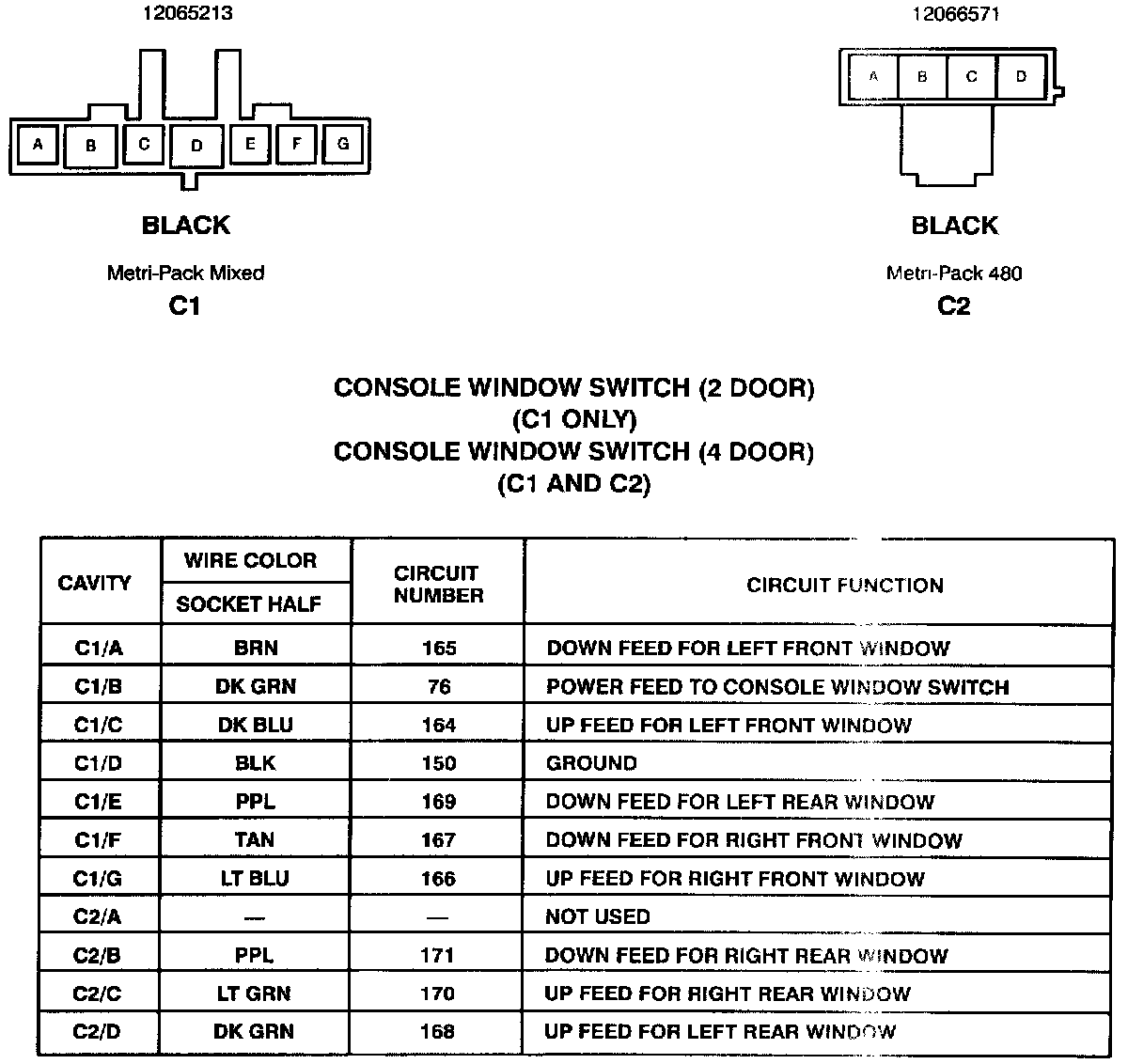

Console Window Switch (2 And 4 Door):



LH Rear Window Switch:
