Beretta V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
Diagrams
>>
C1 (Clear)
C1 (Clear)

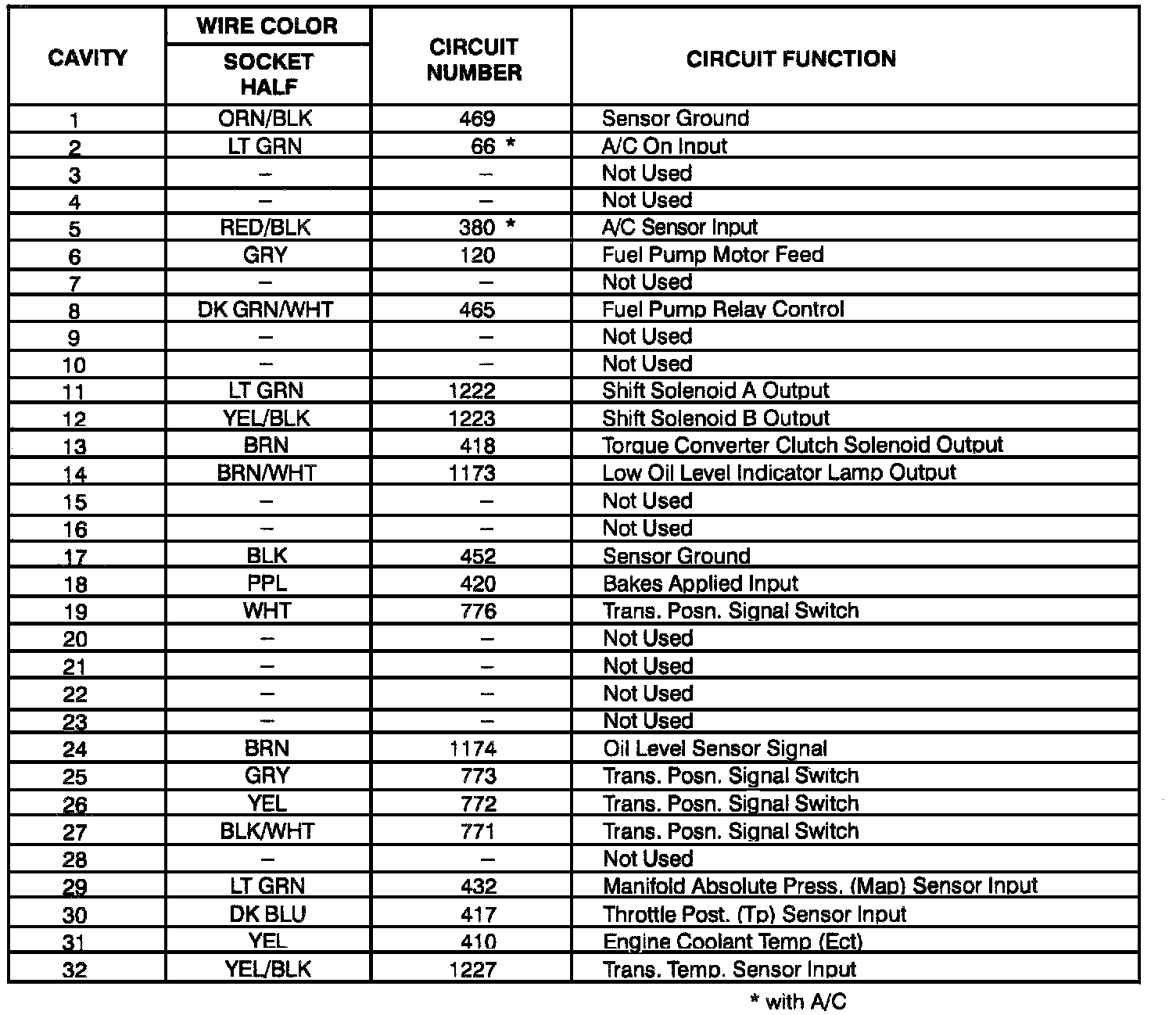

ECM Connector: C1:
ECM Connector: C1:
