Home >> Chevrolet >> 1994 >> Beretta L4-2.2L VIN 4 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Cruise Control Servo

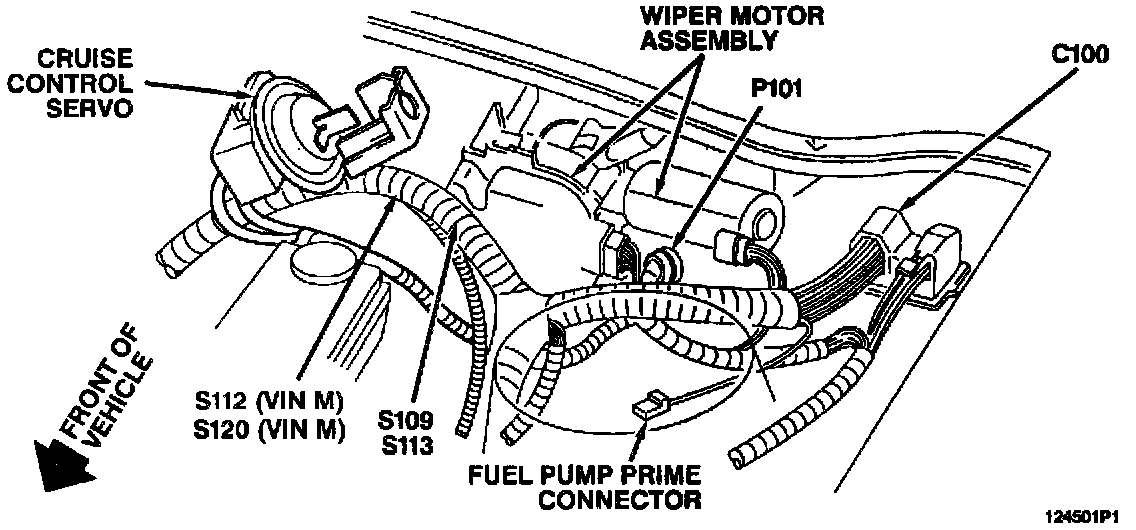

Cruise Control Servo

LH Rear Of Engine Compartment (VIN 4 Shown, Others Similar):
