Home >> Chevrolet >> 1992 >> Lumina V6-204 3.4L DOHC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Control Module >> Diagrams

Ignition Control Module: Diagrams

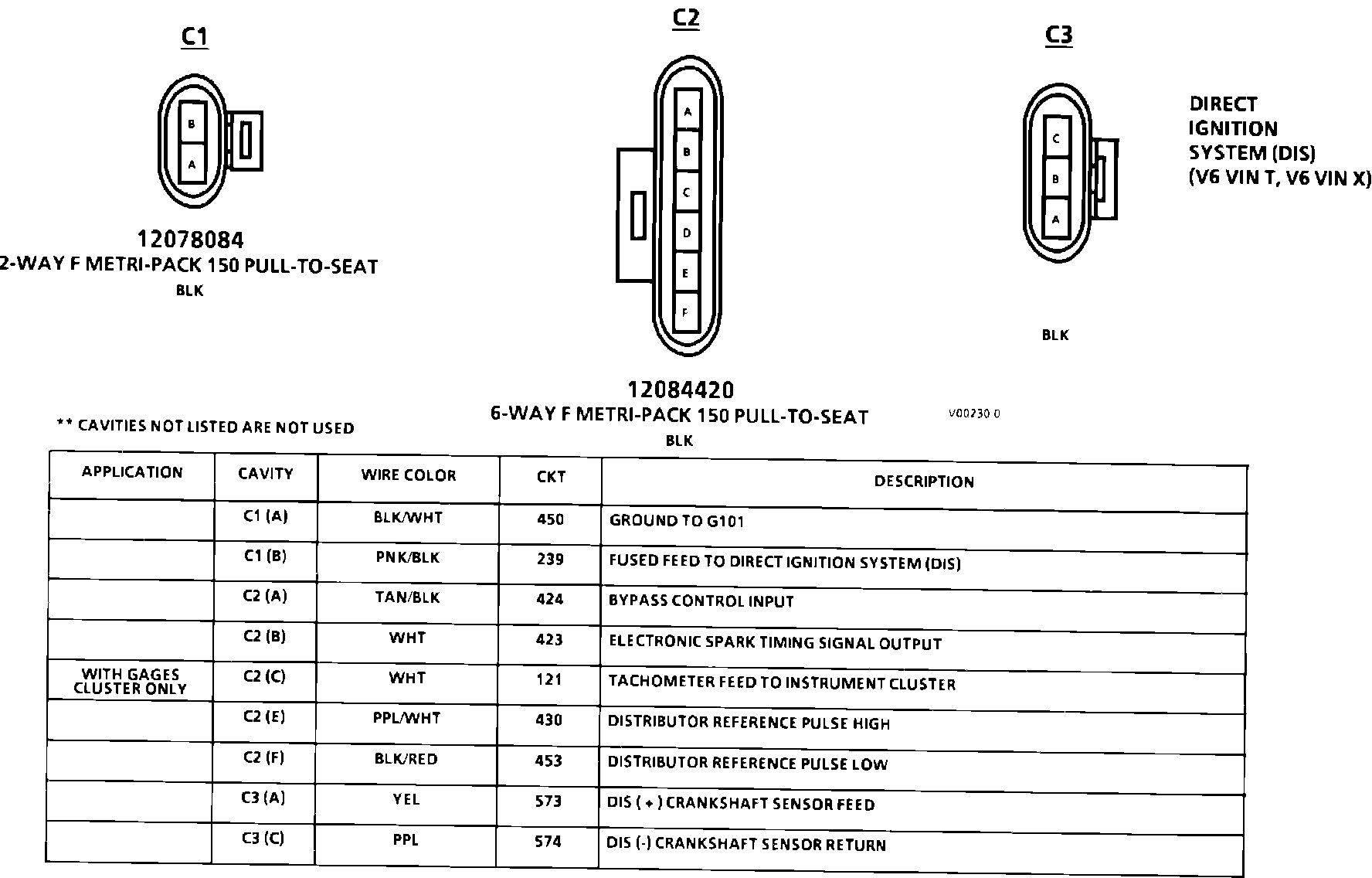

Direct Ignition System Connector Face:
