Control Module HVAC

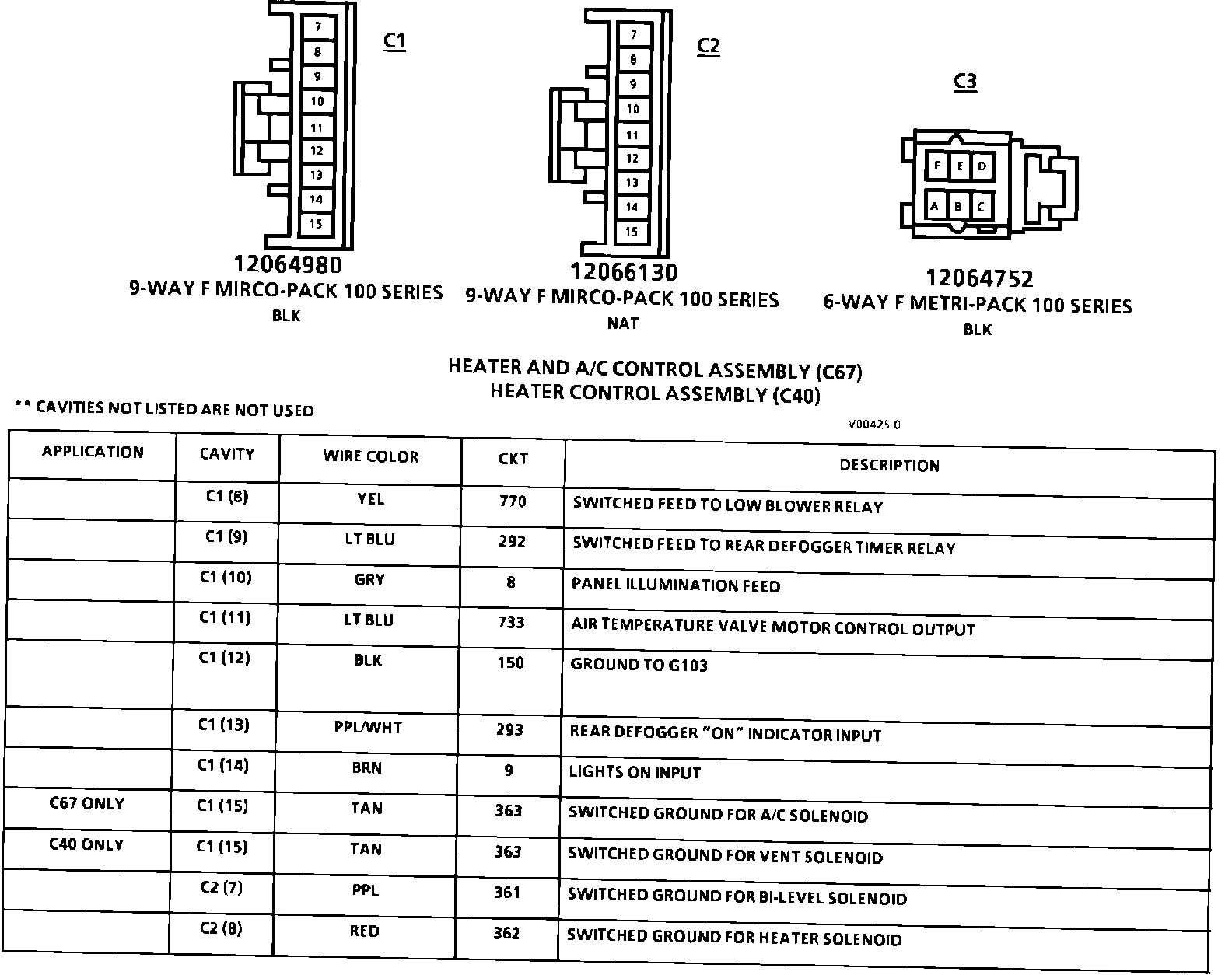

Heater And A/C Control Assembly Connector Face:



Heater And A/C Control Assembly Connector Face:
