Home >> Chevrolet >> 1992 >> Lumina V6-204 3.4L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Antilock Brakes / Traction Control Systems >> Electronic Brake Control Module >> Electronic Control Module (ECM) >> Part 2 of 6

Part 2 of 6

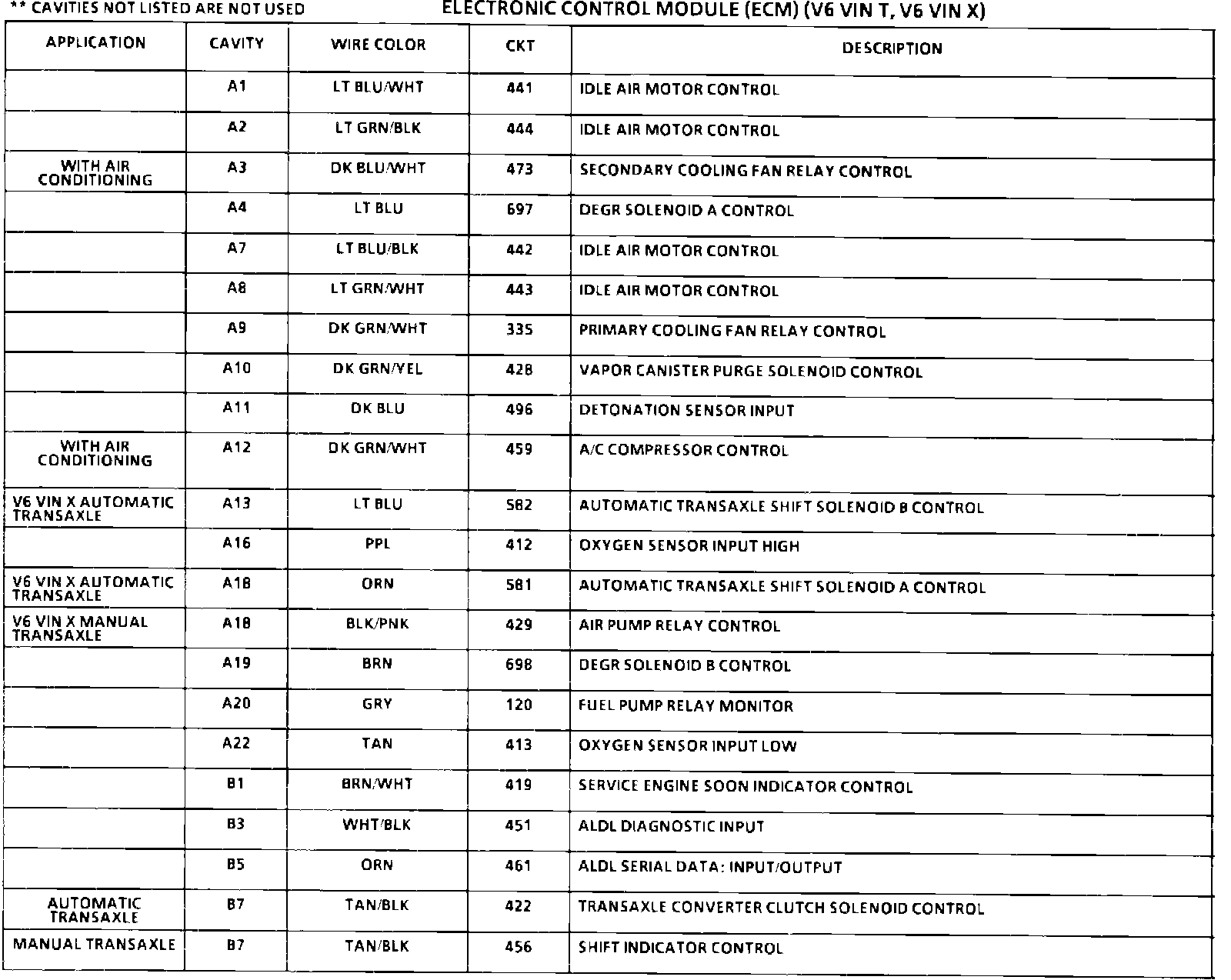

Electronic Control Module (ECM) Connector Faces:
