Ignition Control Module: Locations

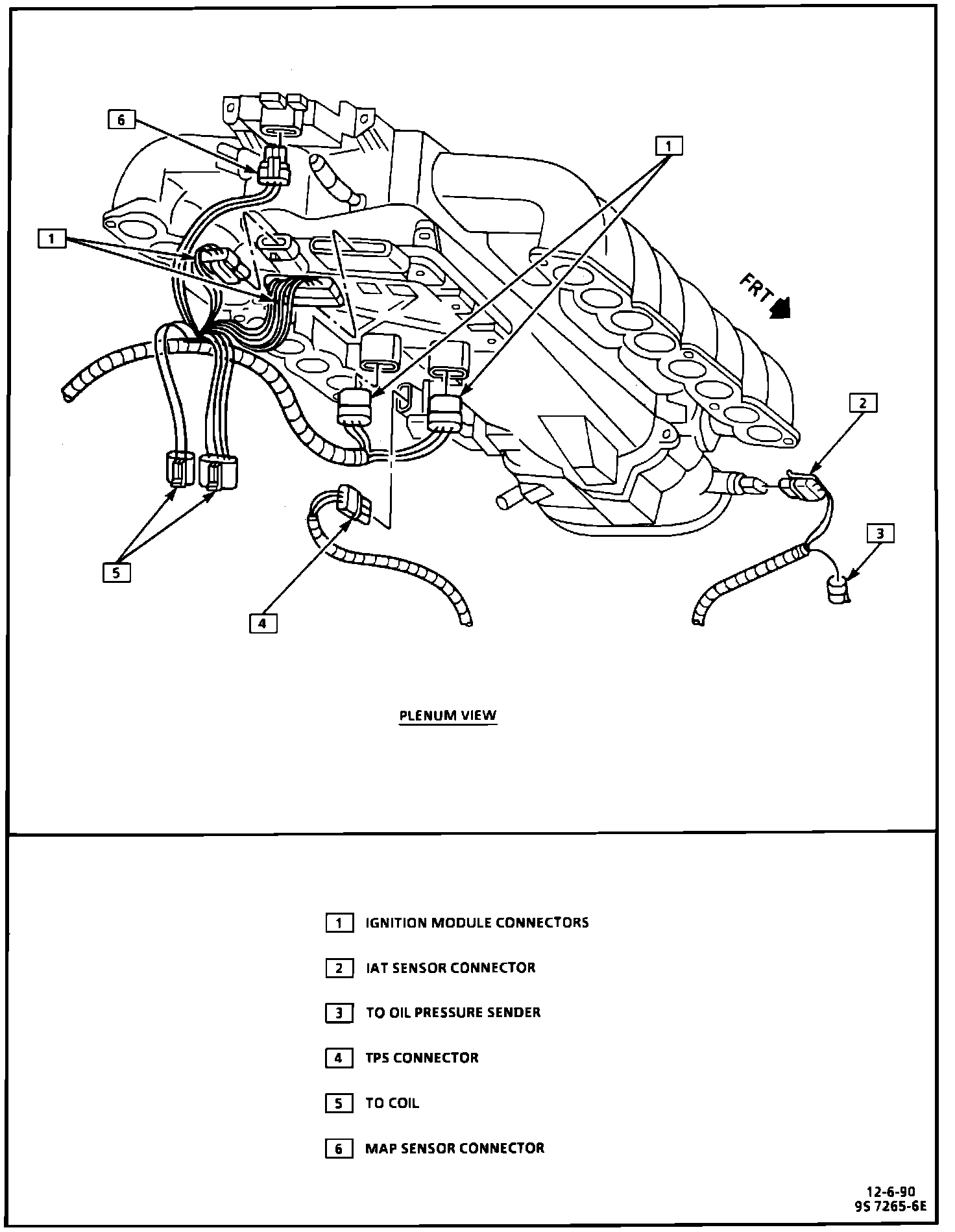

MAP Sensor And Ignition Control Module Locations:





Mounted on the underside of the intake plenum.
