Home >> Chevrolet >> 1992 >> Corvette V8-350 5.7L DOHC VIN J MFI >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Selective Ride Control (SRC) Module

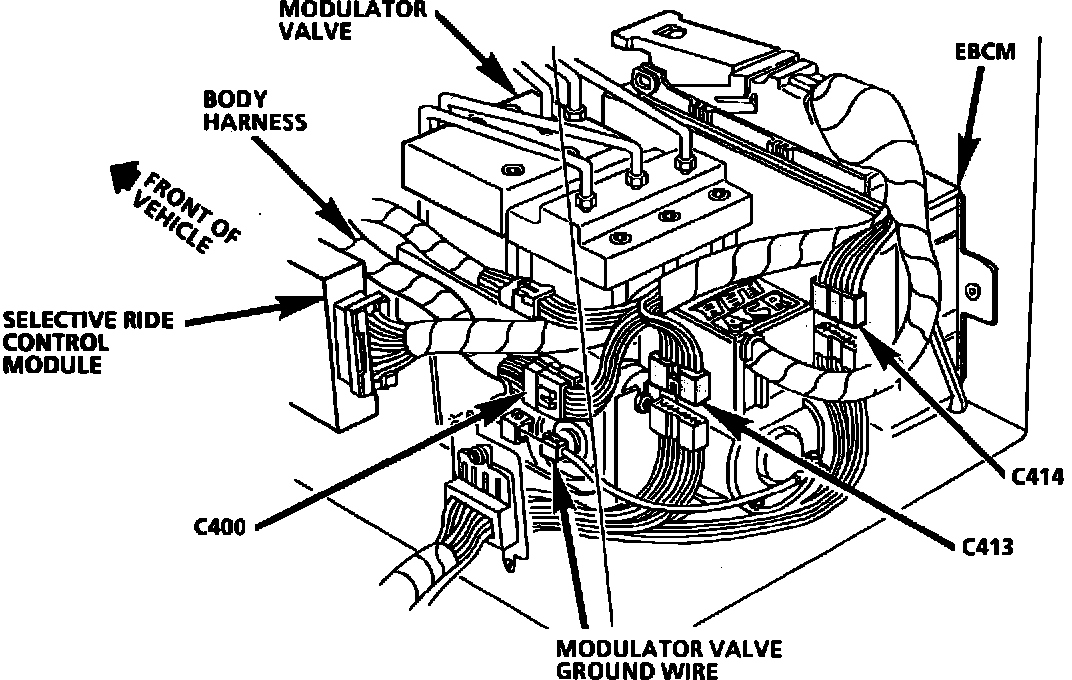

Selective Ride Control (SRC) Module

LH Side Of Cargo Compartment.:




LH Side Of Luggage Compartment

Applicable to: 1992
