Cylinder Head Bolts

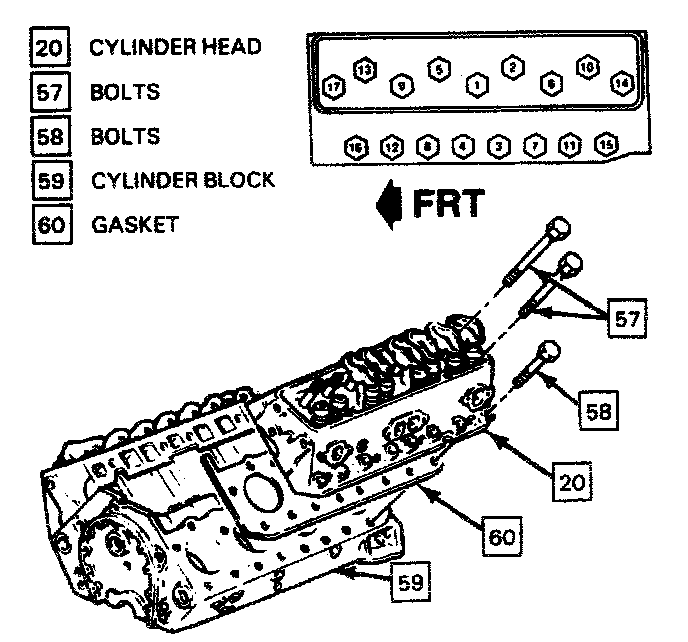

In the sequence shown (refer to image), and in three passes:
Torque bolts to
92 N.m (68 lb. ft.)
