Ignition Control Module: Locations

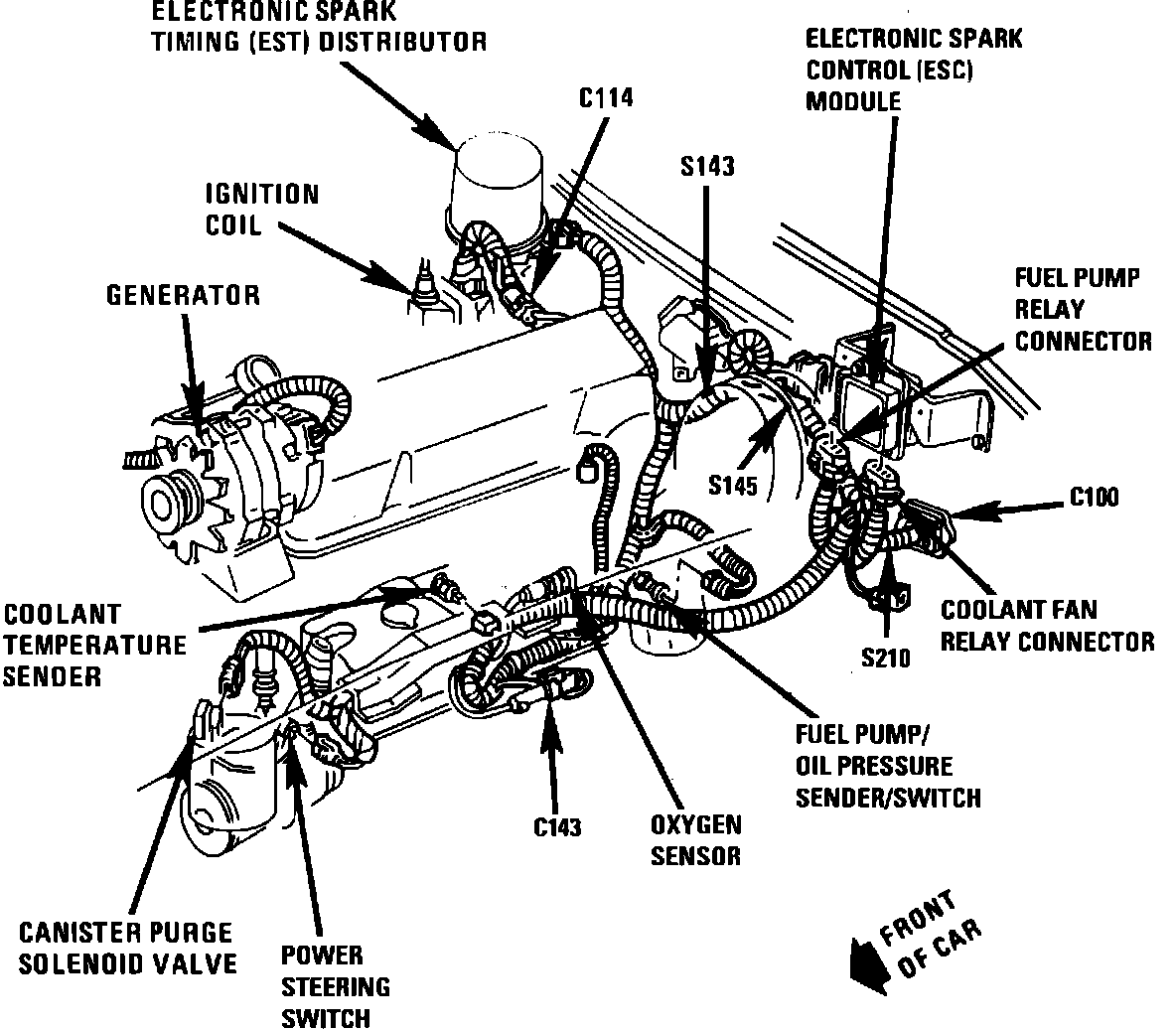

Left Side Underhood Components:






Attached to Multi-use Relay Bracket, LH Rear Engine Compartment
