Home >> Chevrolet >> 1992 >> Camaro V8-305 5.0L VIN E >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams

Engine Control Module: Diagrams

Throttle Body Fuel Injection:

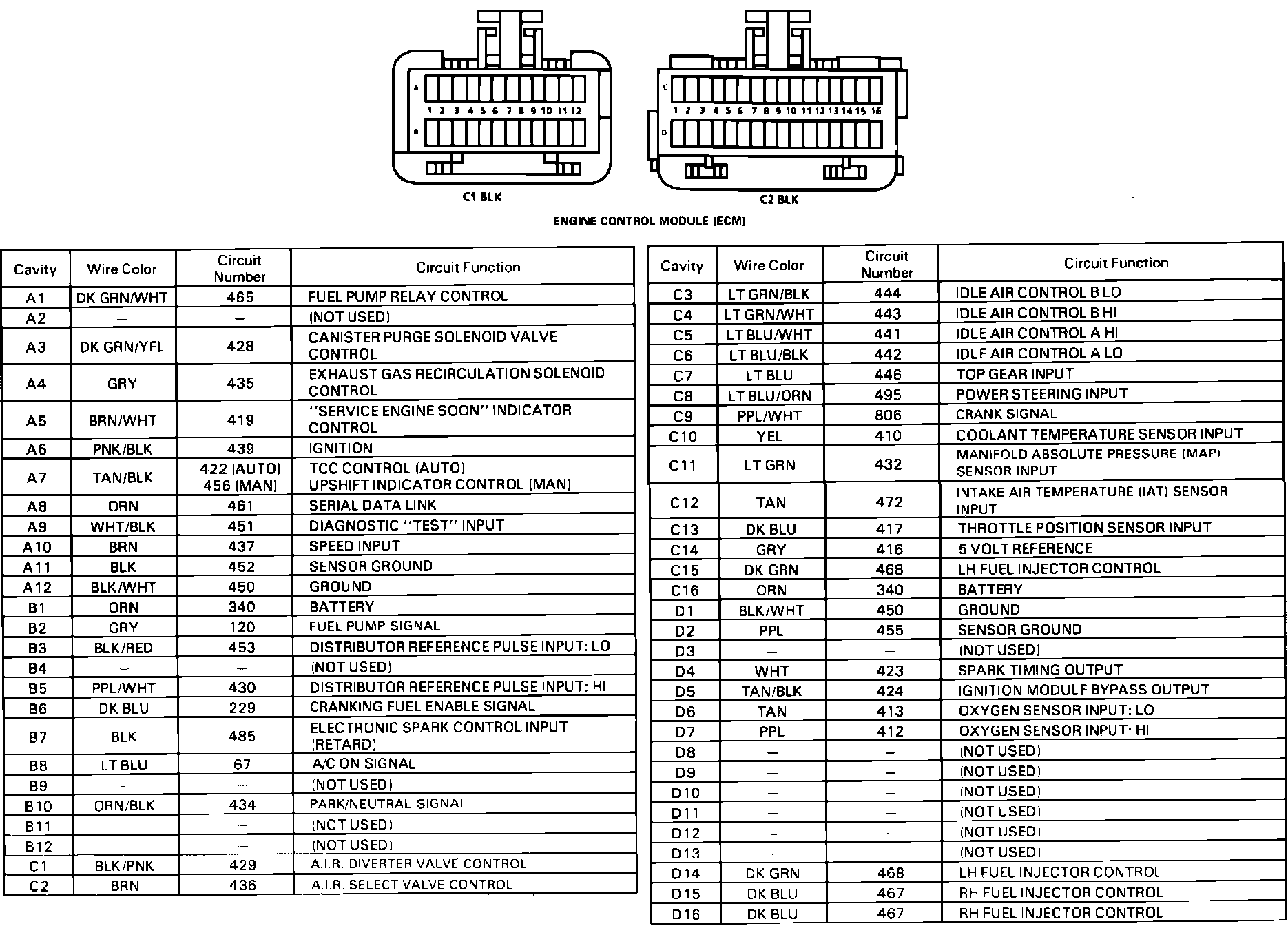

Engine Control Module (ECM) Connector Face:



ECM Voltage Chart:
