Pinout Description
Pinout Description

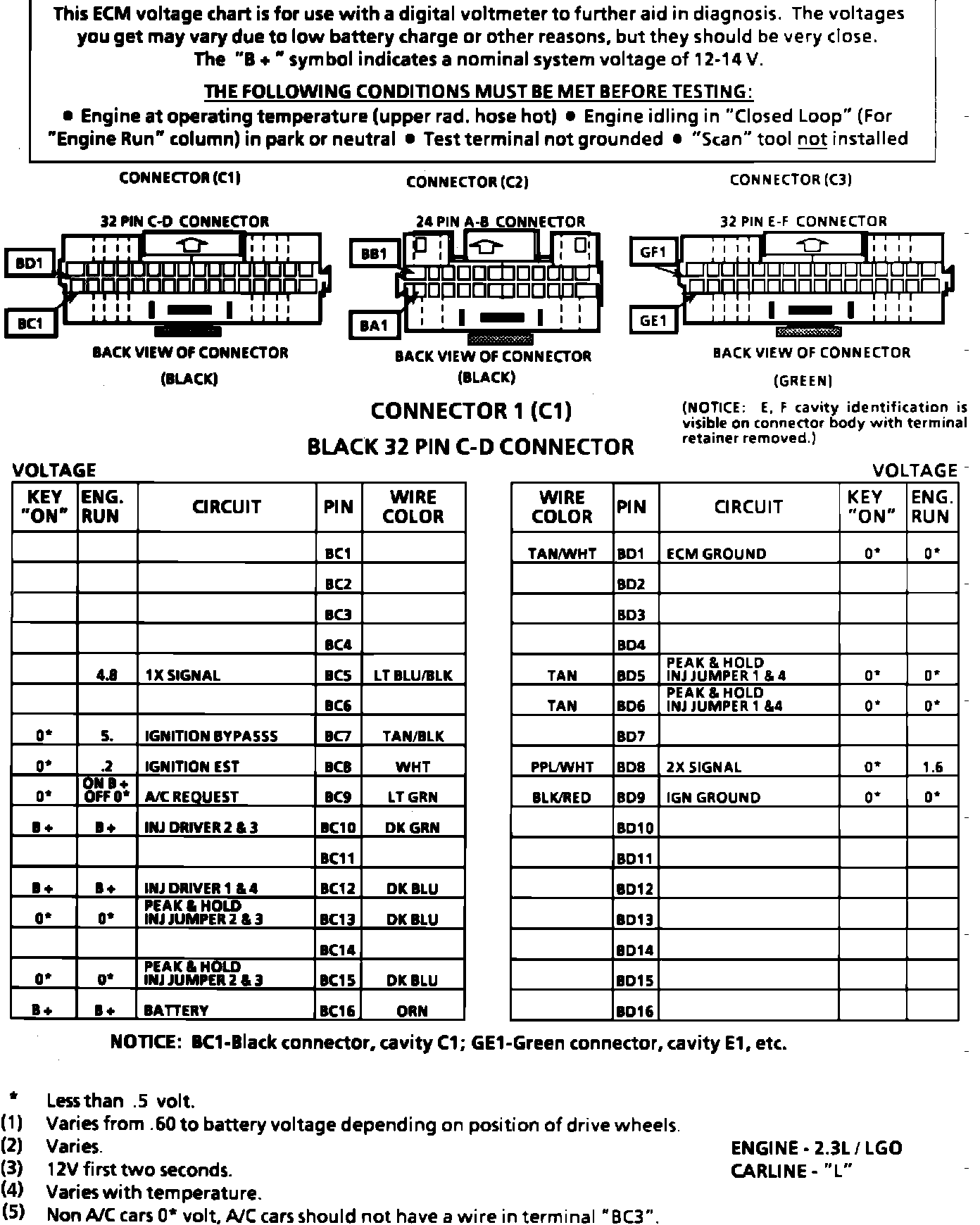

ECM PINOUT/Terminal I.D. Chart "L" Carline (1 Of 2):

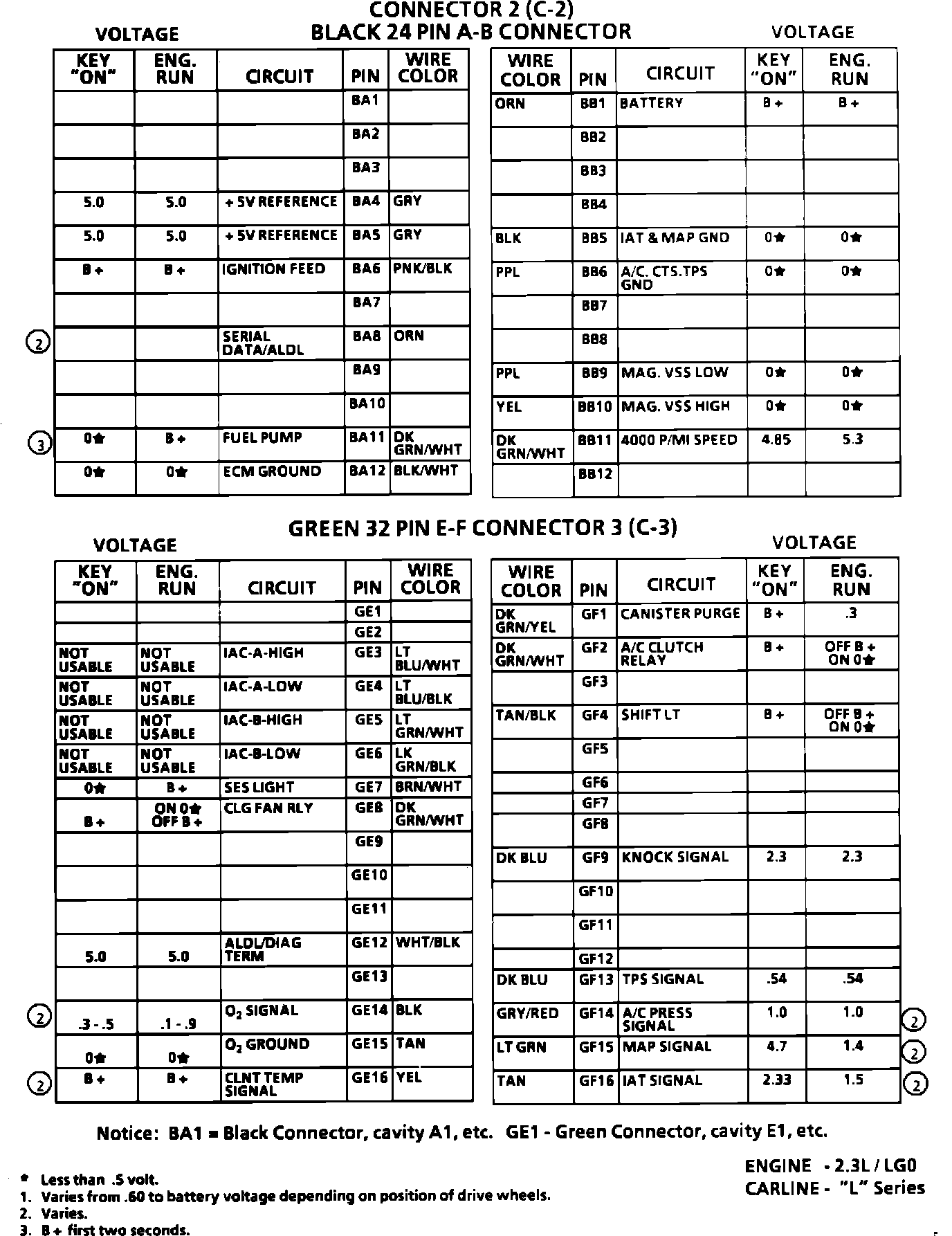

ECM PINOUT/Terminal I.D. Chart "L" Carline (2 Of 2):
