Home >> Chevrolet >> 1991 >> Caprice V8-350 5.7L VIN 7 TBI >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Control Module >> Locations >> Rear

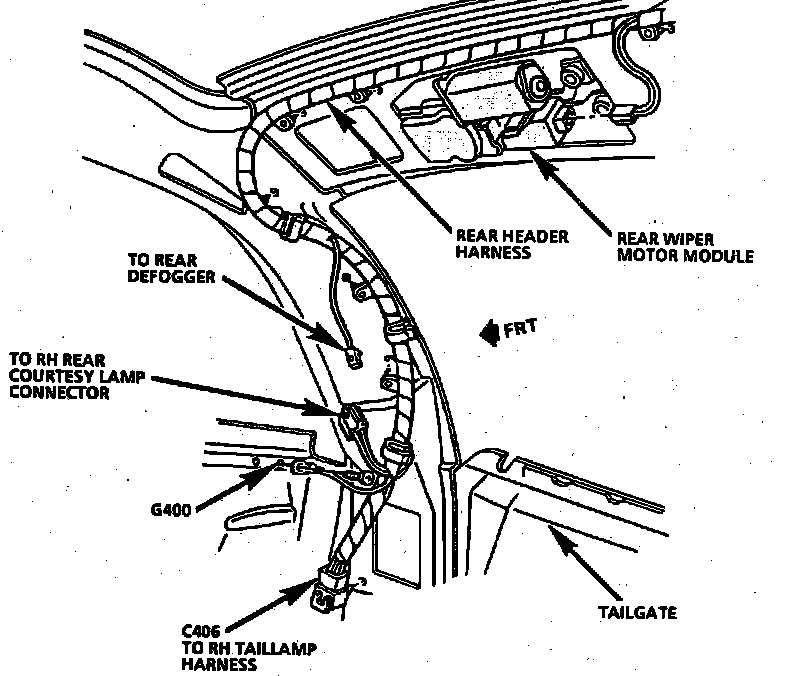

Rear

RH Rear Header (Wagon).:




Mounted To Rear Header, Near Center

Applicable to: Caprice, Custom Cruiser & Roadmaster
