Wiper Control Module: Locations

Center Of Dash:




Mounted To LH Front Of Dash

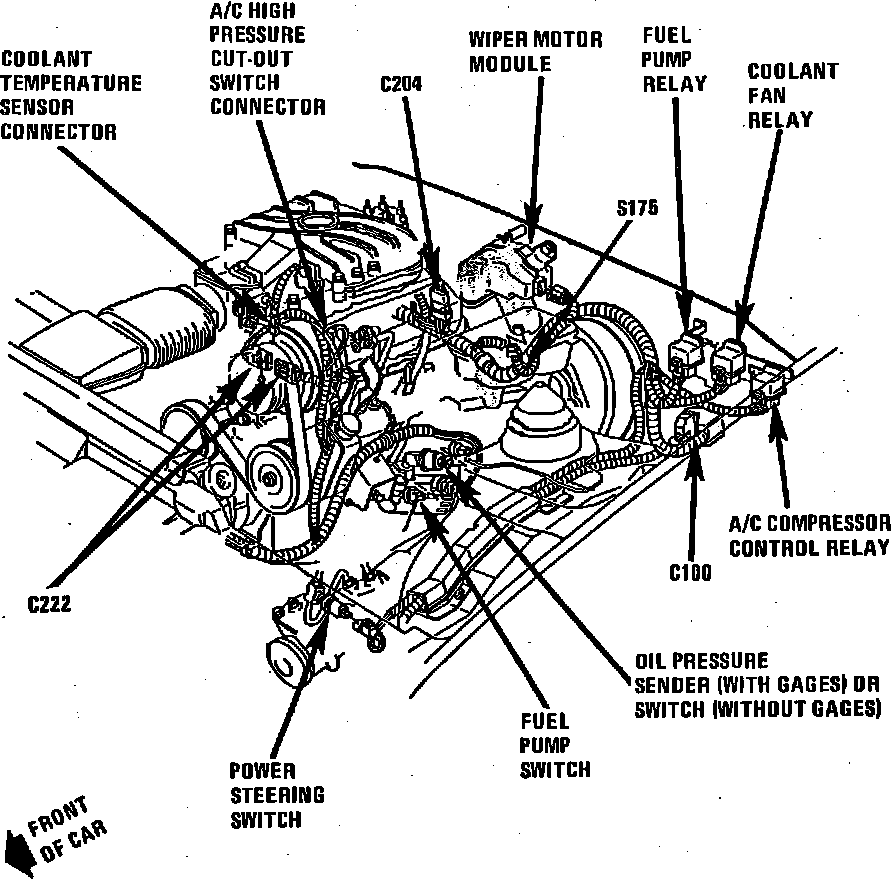

LH Side Of Engine Compartment.:




Mounted To LH Front Of Dash

Applicable to: V6-173/2.8L Engine
