Home >> Chevrolet >> 1985 >> Chevette L4-111 1.8L DSL >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Gas Recirculation Control

Gas Recirculation Control

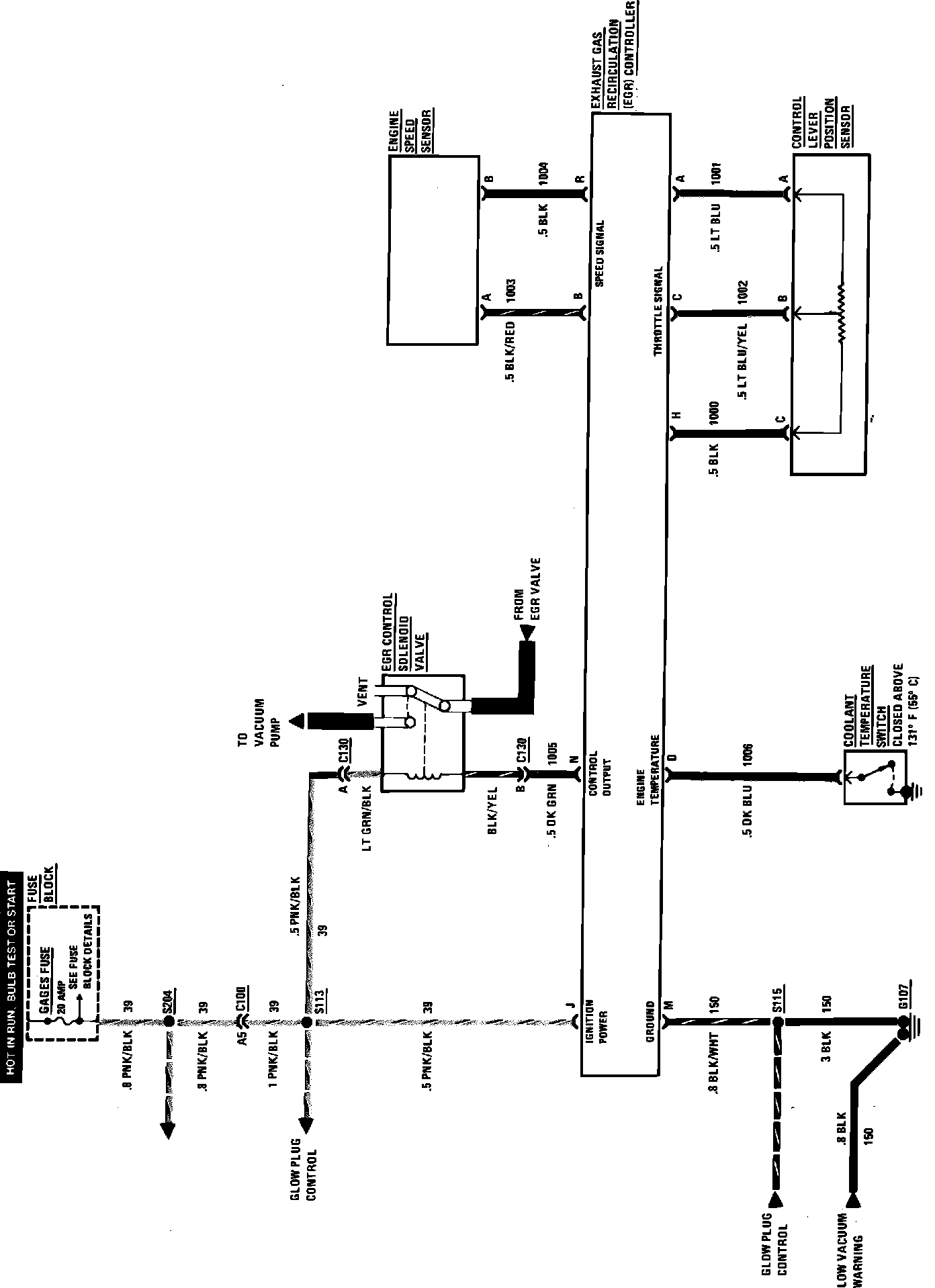

Fig. 13 Gas Recirculation Control Wiring Circuit. 1985 Chevette:
