Home >> Chevrolet >> 1985 >> Chevette L4-111 1.8L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Map Light

Map Light

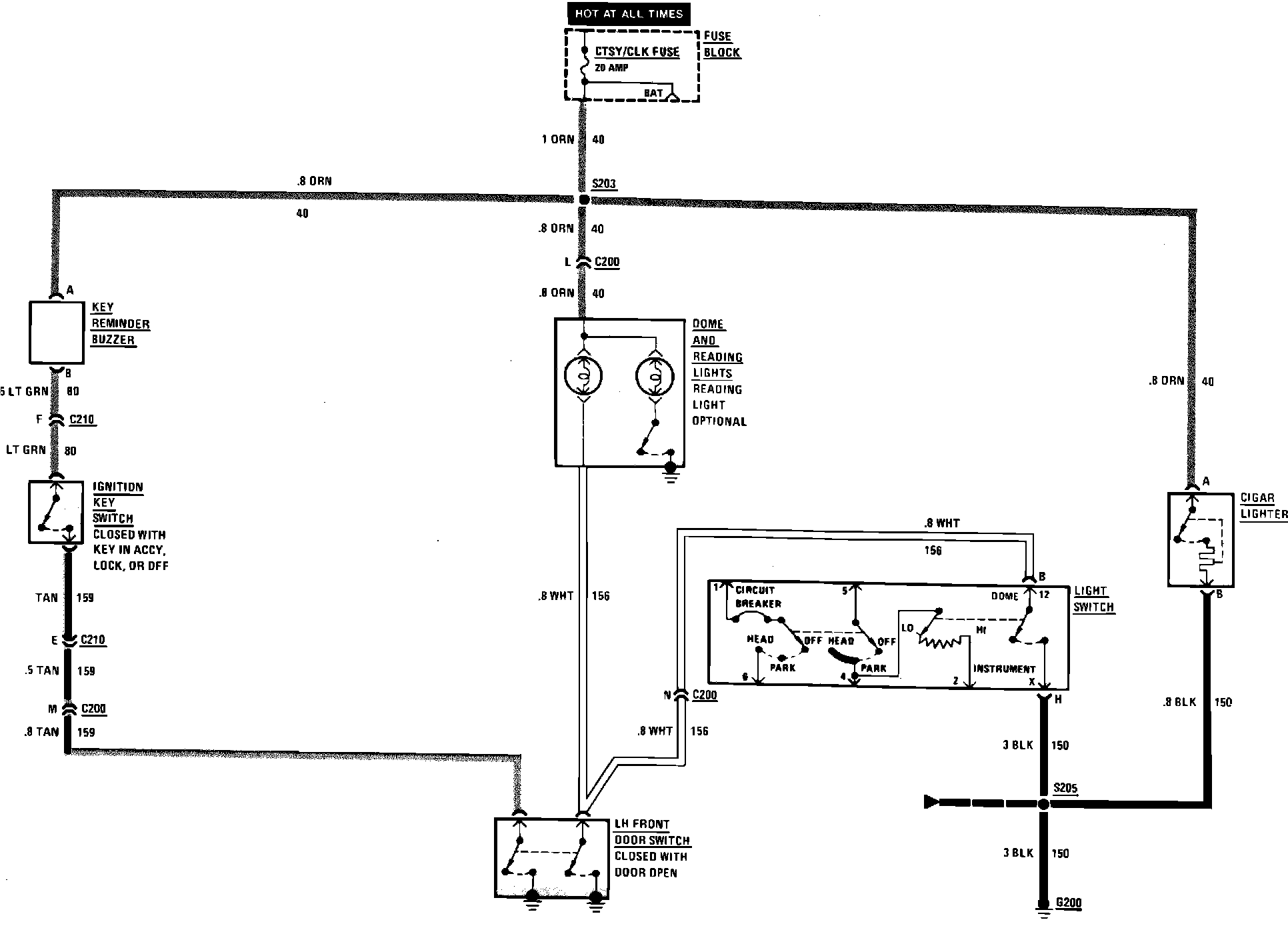

Fig. 21 Interior Lights, Ignition Key Reminder & Cigar Lighter Wiring Circuit. 1985 Chevette & T1000:
