Home >> Chevrolet >> 1984 >> Citation II L4-151 2.5L VIN R TBI >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

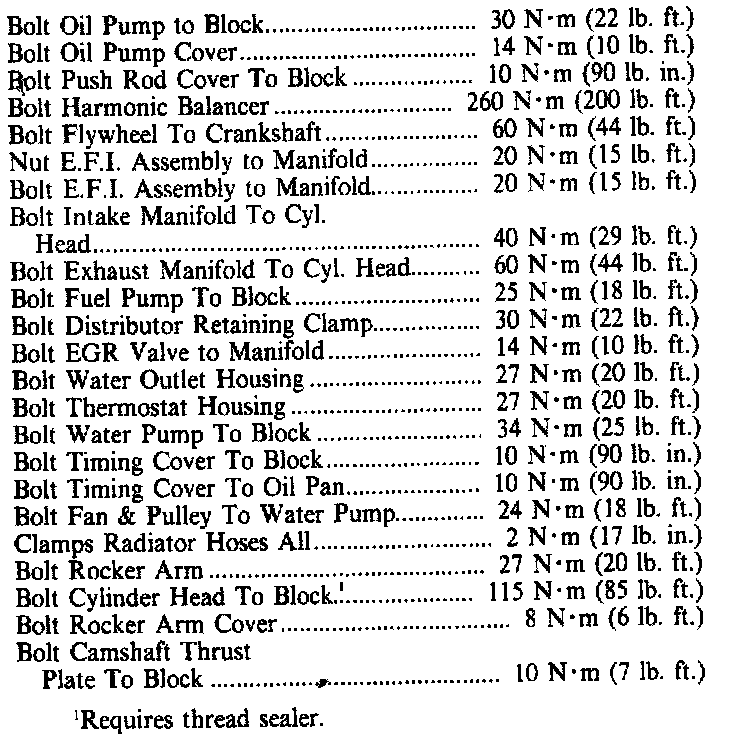

Torque Specifications:




Torque Specifications Continued:

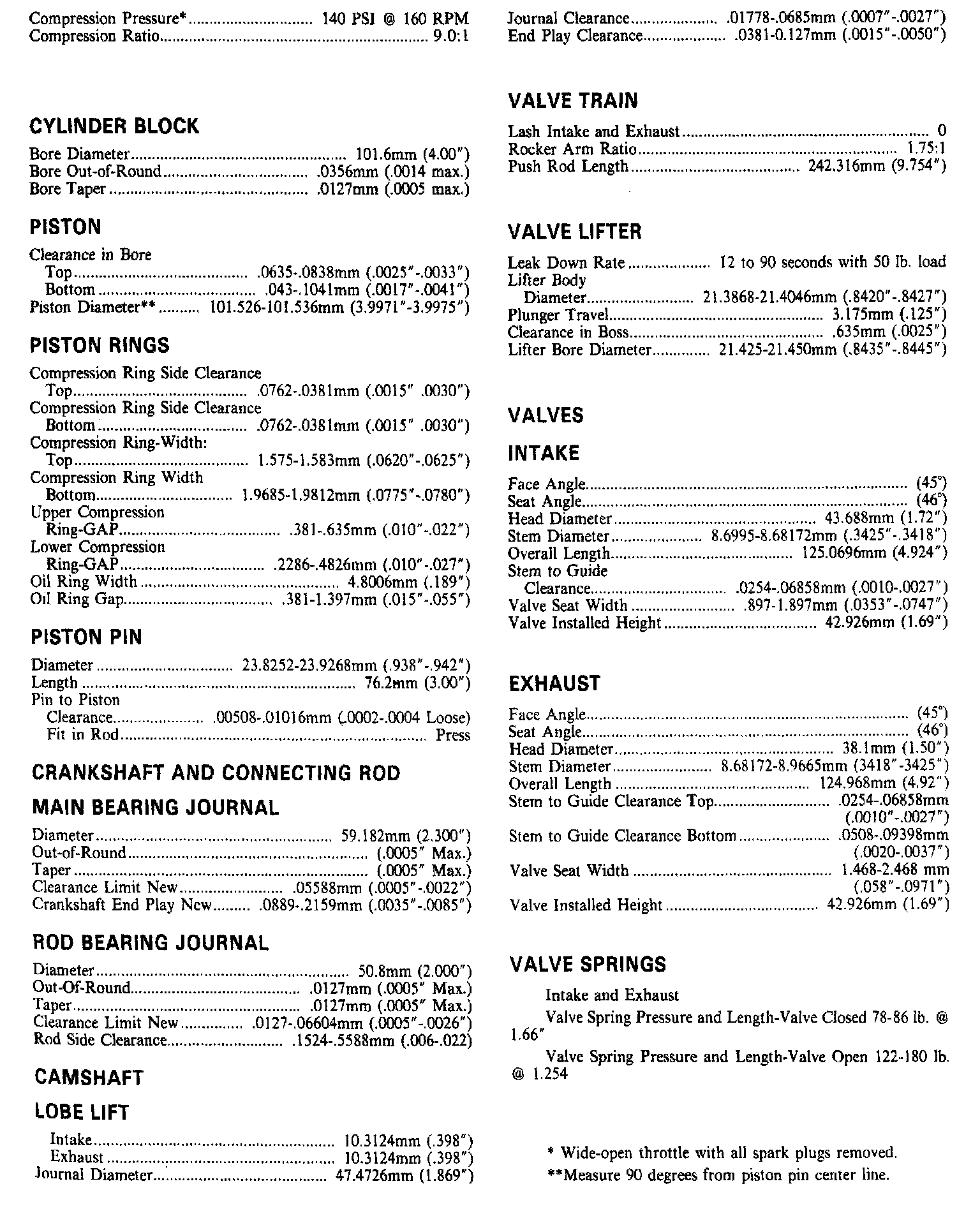

Engine Specifications:




Engine Specifications:

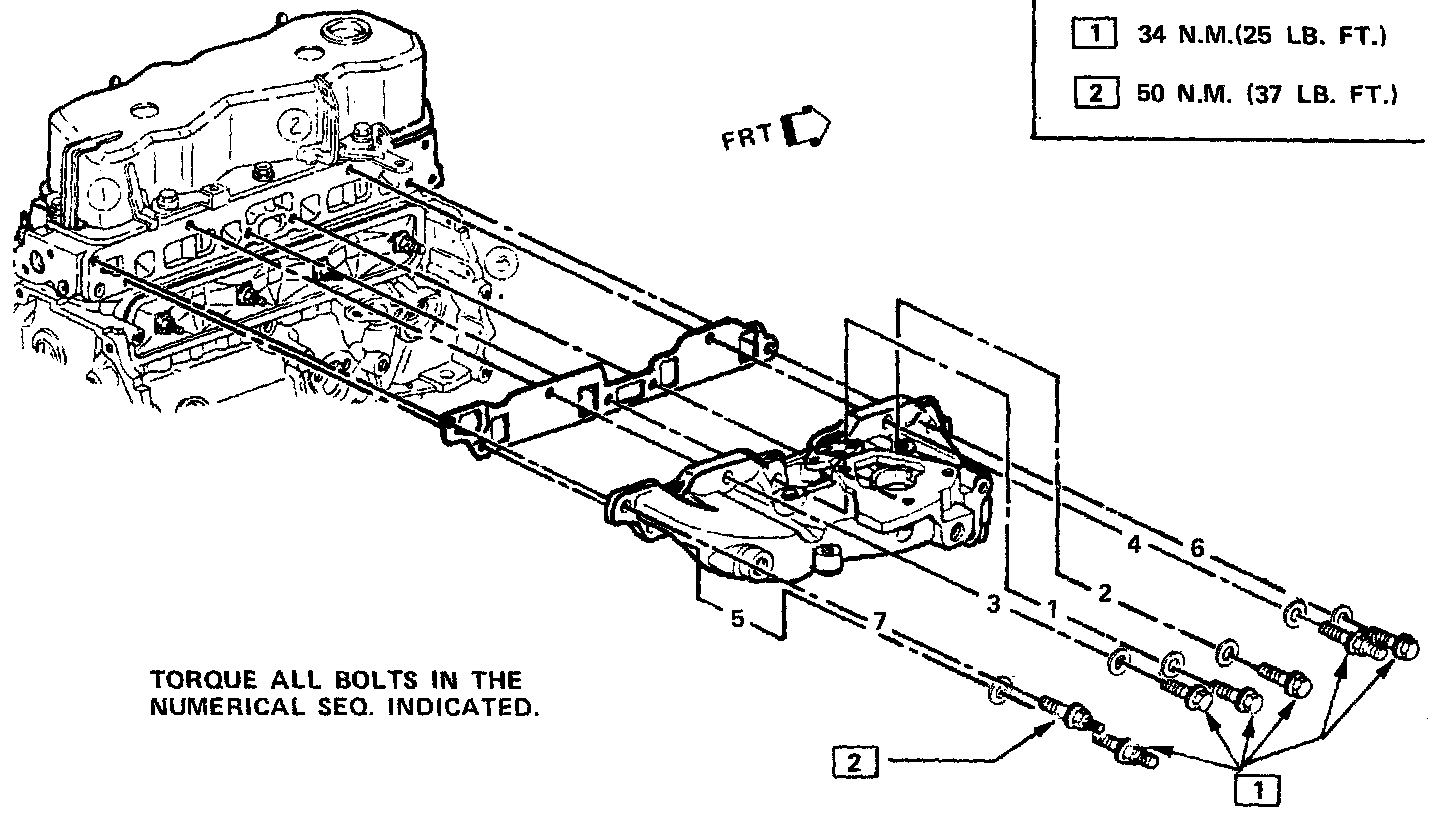

Intake Manifold Torque Sequence:

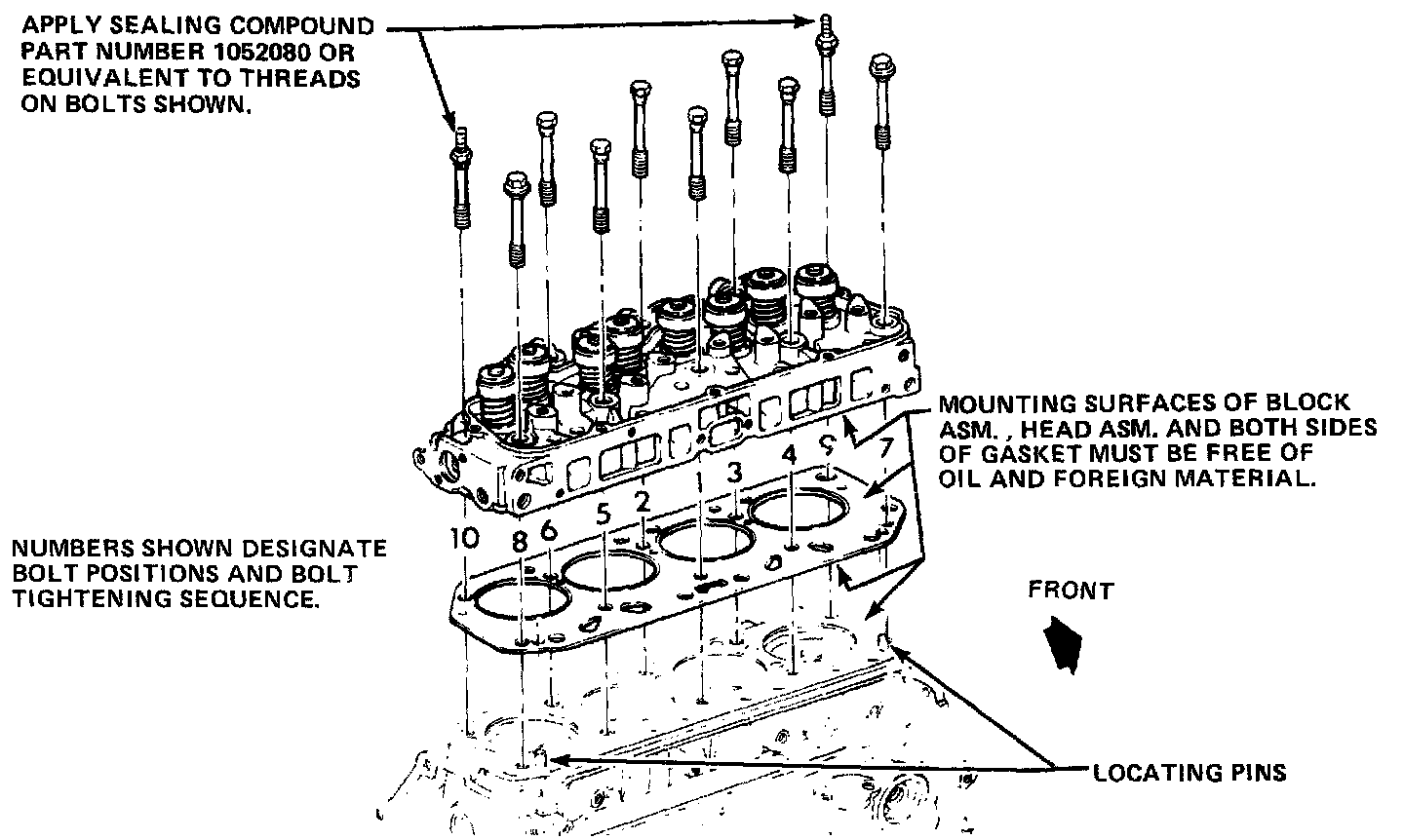

Cylinder Head Torque Sequence:
