Home >> Chevrolet >> 1984 >> Chevette L4-111 1.8L DSL >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Pressure Sensor >> Locations

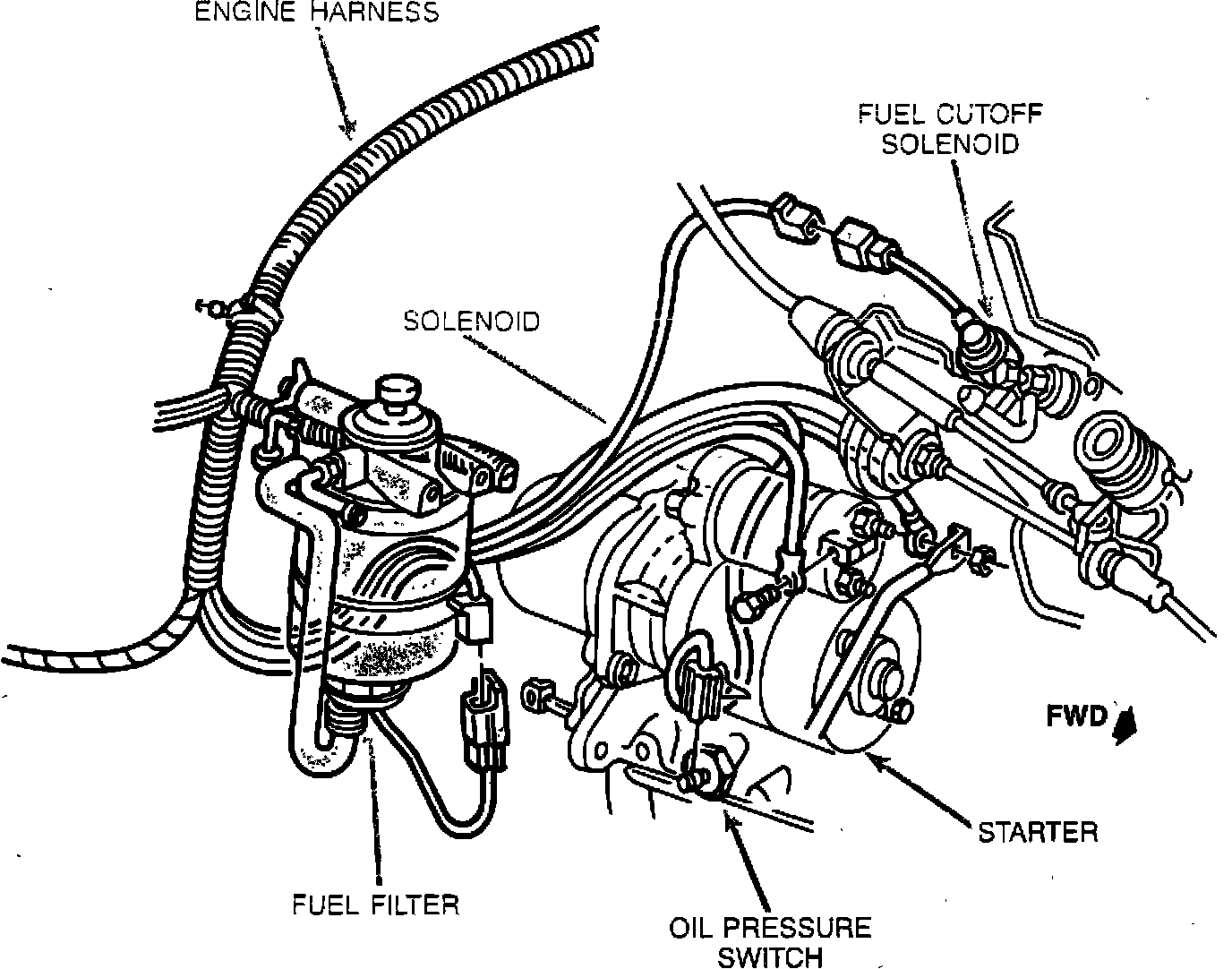

Oil Pressure Sensor: Locations

Starter Wiring.:




RH Side Of Engine, Below Starter

Applicable to: Diesel Engine
